Summary of Contents for FUHR NBFP490
- Page 1 WWW.FUHR.DE autotronic Radio receiver module NBFP490 with master radio key Installation, operation and maintenance instructions These instructions are to be passed on by the fitter to the user. www.fuhr.de...
-
Page 2: Delivery Scope
Application The radio receiver module NBFP490 is a rolling-code radio receiver for opening FUHR multitronic 881 and autotronic 834(P) motorised lock systems, by means of up to max. 25 different radio transmitters. The radio receiver is compatible with all conventional FUHR transmitter modules, e.g.: radio key, radio transponder reader, radio fingerprint scanner, radio keypad. -
Page 3: Installation Requirements

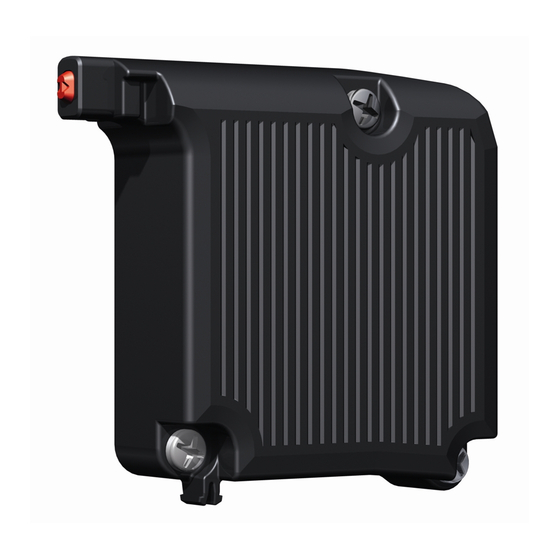

Installation requirements The following FUHR motorised locks’ components have been modified from the manufacturing date April 2010, in order to facilitate the installation of the radio receiver: 1 Opening for the LED tune-in button in the lock face- plate... - Page 4 The radio receiver module NBFP490 (1) has a trans- parent tune-in button with a red indicator LED (2) to tune in the FUHR radio transmitter, as well as a 3-core connection cable (3) to be connected to the drive unit with the green coupler.
- Page 5 Apart from the previously tuned in master key, up to 25 user keys can be tuned in to the radio receiver. The user keys serve only to open the door; they have no tuning in or deleting authorisation. All FUHR radio transmitters are suitable as user transmitters, e.g.: radio key, radio fingerprint scanner, radio trans- ponder, radio keypad.
- Page 6 – are deleted. In order to rule out the possibility of anyone else except the authorised end customer tuning in a user key, we recommend end customers to carry out this deletion process immediately after receiving the master key! WWW.FUHR.DE...
-
Page 7: Technical Data
Should the LED not light up despite trans- mitting an opening signal, the radio receiver and/or the motor lock have not yet been connected to the 12 V DC operating voltage or the cables on the drive unit’s coupler have been connected incorrectly. WWW.FUHR.DE... - Page 8 The supplied components are to be protected against humidity. They are not suitable for areas with high humidity and chemical substances! Only original FUHR accessories may be used. We accept no liability for incorrect installation or operation. The housings and cables are to be protected against mechanical damage. Damaged or faulty components must be decommissioned and replaced immediately.
