Summary of Contents for Admiral ACC-0206

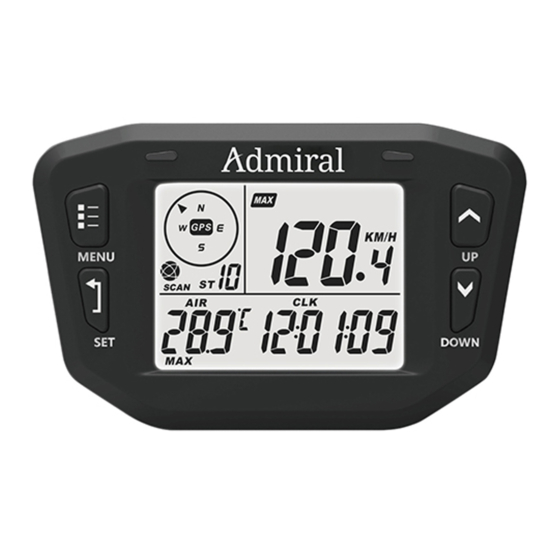

- Page 1 ACC-0206 Digital, Multi-Function, GPS Speedometer...
-

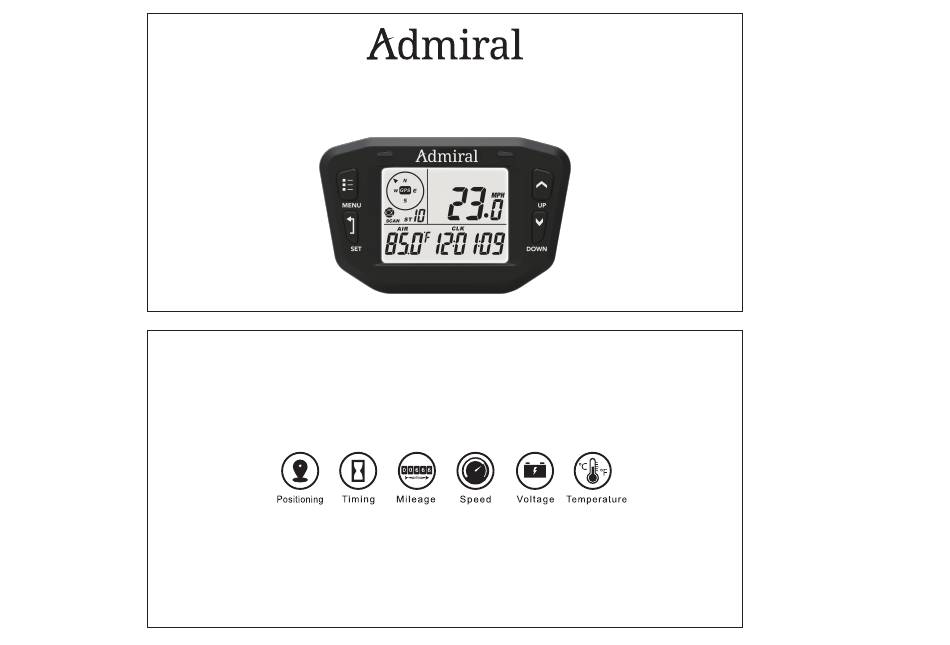

Page 2: Table Of Contents
Physical Features Specification & Parameter Product Installation Product Dimension - 1 - Product Accessories List Product Specification User Manual*1 Product*1 Cable tie*3 ACC-0206 Motion direction Speed display Digital, Multi-Function, GPS Speedometer Number of satellite MENU DOWN GPS Sensor*1 Temp Sensor PT100*1... -
Page 3: Product Wiring Diagram
Function Icon Units Range Function Icon Units Range -20℃—+70℃ ℃/℉ Air Temperature Current Speed KM/H or M/H or KNOT -4℉—+158℉ Engine -20℃—+250℃ KM/H or M/H or KNOT Average Speed ℃/℉ Temperature -4℉—+482℉ -20℃—+250℃ Maximum KM/H or M/H or KNOT Maximum Speed ℃/℉... -
Page 4: User Interface
User Interface User Operation All the information that pilot is on one of these 3 screens. The user 1 Screen 1 Operation has the choice of staying on Screen 1 ,Screen 2 or Screen 3. Screen 1: Press "MENU", the 3 main interfaces could be switched freely. ●Direction of motion ●Number of satellites Screen 1... -
Page 5: Product Operation
3 Screen 3 Operation Screen 3: ●Alert speed ●Direction of motion ●Min battery voltage ●Number of satellites ●Target distance ●Speed ●Engine TEMP ●Total time (ART) Under the Screen 3 interface, press the “UP” or “DOWN” button can view more data information) ●Max speed ●Max engine temperature ●Job hours... - Page 6 2. Setup alert speed value (Defaults: 100KM/H) 4. Setup Alert Temperature Value (Defaults: 100℃ ) Press the “UP” or “DOWN” button until you get desired alert speed value , Press the “UP” or “DOWN” button until you get desired alert temperature value , release the button and finish your confirm.( Press the “SET”...
- Page 7 4.Reset Interface demo C.Reset a) Reset the Max Speed Value 1.Get into reset a) Press and hold the “SET”button for 2s to into reset at any sub-interface. b) Product defaulted get into the Max Speed Reset Interface, the current reset value start flashing.
- Page 8 D. Other g) Rest Trip Distance Value 1.SM002 will enter into screen 1 after reset a) The upper left of LCD display number of satellites and direction of motion. b) The upper right of LCD display current speed. c) The lower left of LCD alternate display battery voltage and ambient temperature.
-
Page 9: Physical Features
Physical features Physical features A.SVC alert B.Warning alert LCD Reminder LED Reminder LCD Reminder LED Reminder SVC type warning type Settable range Settable range Method Method Method Method SVC1 Speeding alert 0-1000H “SVC1”icon flashes Yellow Flashes 0-399KM/H Warning icon flashes Red light flashes Over-temperature alert -20℃-250℃... -
Page 10: Product Installation
Product Installation Installation Method 1 Steering Column and dash mounting brackets sold separately. Visit golfcart.com for speedometer mounting options. - 17 - Product Dimension 23.6 Reset CONNECTION HOLE MENU 1 - DC.POWER 2 - GPS SENSOR 3 - TEMP SENSOR 4 - X Inside contain the battery, Keep installation location...
