Electrical Connections
Red
24V AC/DC
Black
White
Volt-free
Blue
output
Yellow +
Ballast
Green -
control
115mm
DIL Switches
Ballast Type
Non-Dimming ON
1-10V
DSI
DALI
65mm
Technical Data
OPERATING VOLTAGE: 24V AC/DC
POWER CONSUMPTION: <0.5W
MAXIMUM RECOMMENDED MOUNTING HEIGHT: 3.0m
RANGE: Cone-shaped detection pattern, diameter (at floor level) = 2.4 x mounting height
2.5m
6.0m
DEPTH REQUIRED BEHIND CEILING: 125mm
WEIGHT: 70g excluding cable
COLOUR: White
MATERIAL: Flame retardant PC/ABS
IP RATING: 4X
SW OUTPUT: Gold contacts for signal only (0.5A @ 24V ac/dc)
BALLAST CONTROL: Up to 25 analogue or digital ballasts
Ex-Or
Haydock Lane, Haydock, Merseyside WA11 9UJ
Tel: +44 (0)1942 719229
Fax: +44 (0)1942 272767
Email: technicalsales.ex-or@honeywell.com
www.ex-or.com
Supplied pre-wired to
the following plugs:
Metway GSK86502
Green
Yellow
Blue
Black
White
Red
Wieland 25.380.3353.0
1
2
3
4
ON
ON
ON
ON
ON
ON
OFF
OFF OFF ON
OFF
OFF OFF OFF OFF
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
Note: HP10 or HP2000 required for commissioning

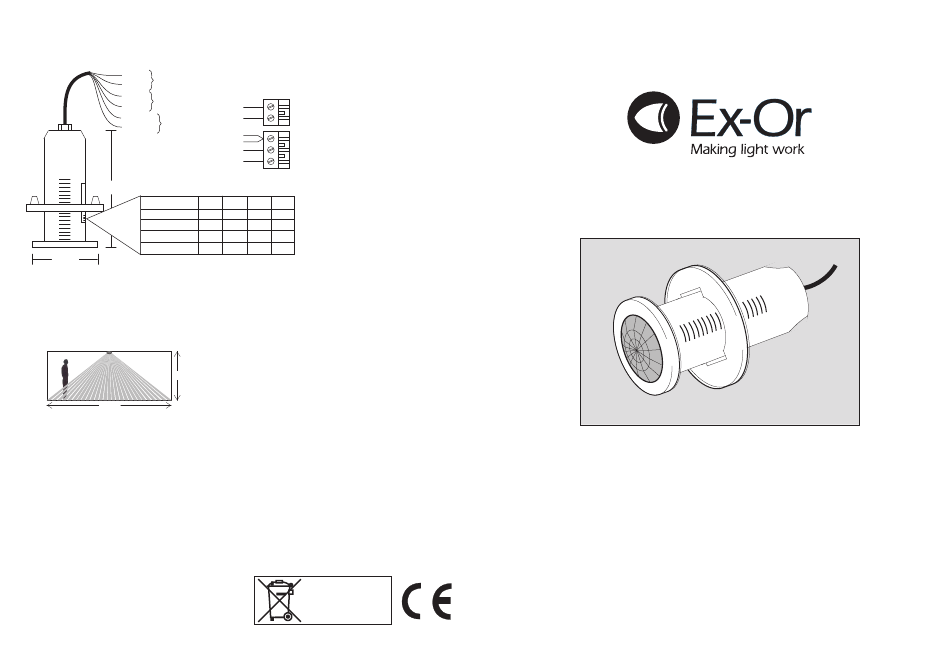

W4062G
MS1224UF
Silver Series Regulating LightSpot
24V AC/DC Operation
Installation and Commissioning
Instructions
Advertisement
Table of Contents
Related Manuals for Ex-Or MS1224UF
Summary of Contents for Ex-Or MS1224UF
- Page 1 Yellow + Yellow Ballast Green - control Blue Black White Wieland 25.380.3353.0 115mm DIL Switches MS1224UF Ballast Type Silver Series Regulating LightSpot Non-Dimming ON 24V AC/DC Operation 1-10V OFF OFF ON DALI OFF OFF OFF OFF 65mm Technical Data OPERATING VOLTAGE: 24V AC/DC POWER CONSUMPTION: <0.5W...
- Page 2 Programmable Parameters MS1224UF Silver Series Regulating LightSpot Only suitably qualified personnel should install this equipment. Please note: Parameters marked * are not applicable where non-dimming ballasts are used. Installation Parameter Options Pre-set Notes Set the DIL switches to suit the ballast type (as shown in table opposite).
