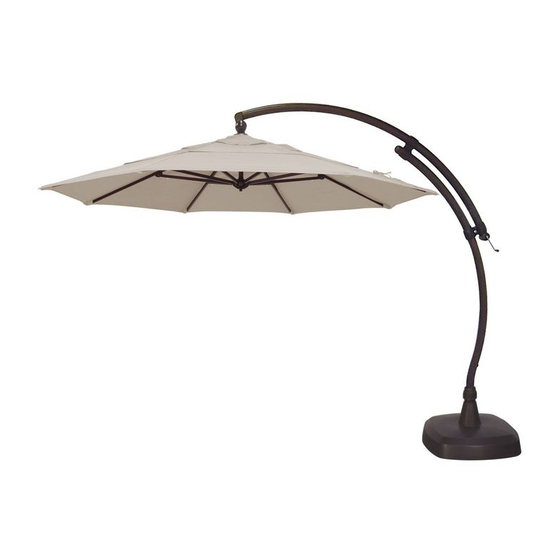

PRODUCT NAME: 11' Octagon Cantilever *Umbrella
ITEM NUMBER: JU017
ASSEMBLED DIMENSIONS: 123"H (open) / 118"H (closed) x 11' Octagonal
*Canopy featured in Assembly Instructions representative only. Canopy style may vary.
Page 1 of 10
Advertisement
Summary of Contents for Ballard Designs JU017

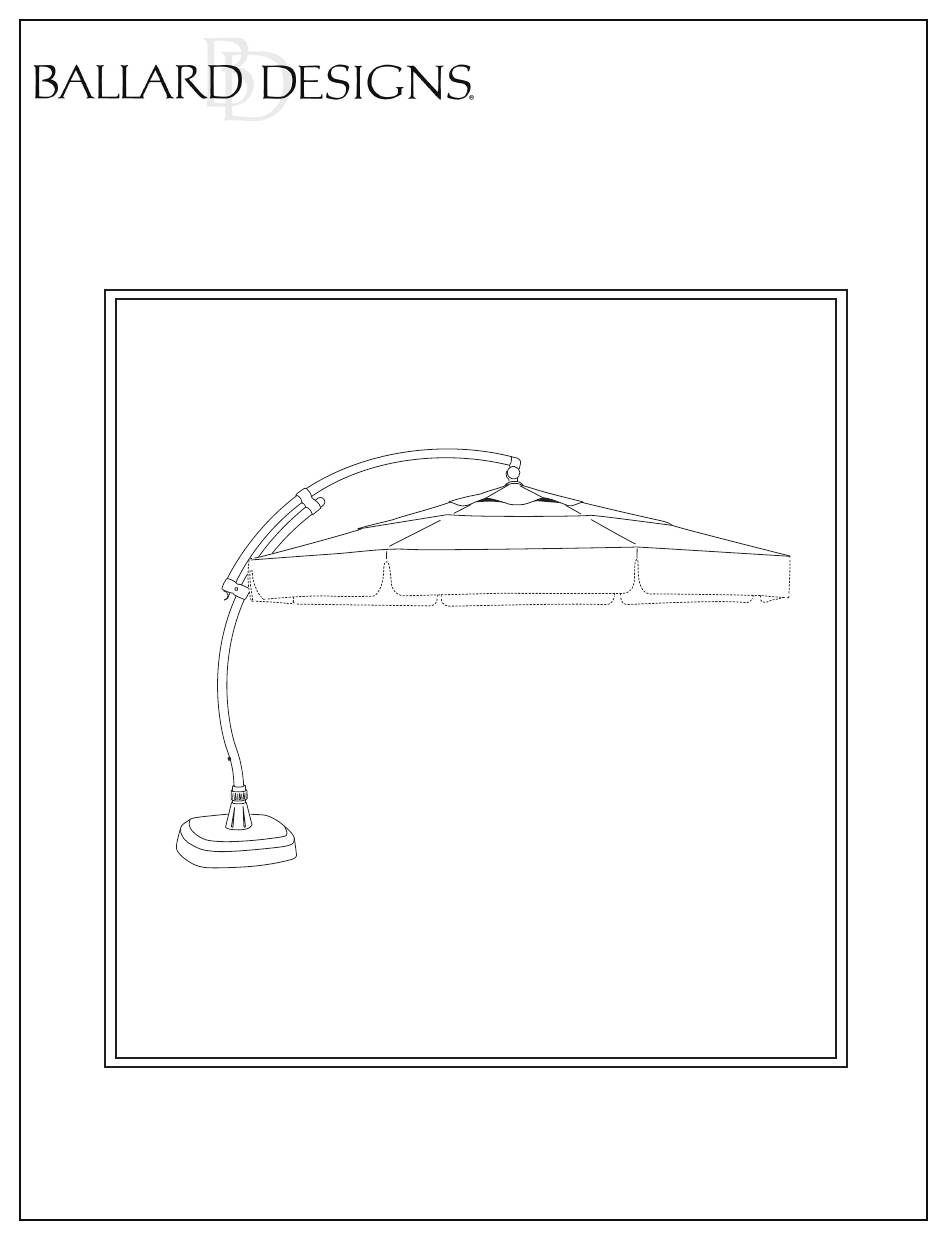

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: 11’ Octagon Cantilever *Umbrella ITEM NUMBER: JU017 ASSEMBLED DIMENSIONS: 123”H (open) / 118”H (closed) x 11’ Octagonal *Canopy featured in Assembly Instructions representative only. Canopy style may vary. Page 1 of 10...
- Page 2 Assemble in location for intended use. Please remove all contents from the package, inspect and review checklist. CAUTION: To avoid personal injury and damage read and follow this assembly and operation guide We recommend a two-person team for assembly and disassembly. Save information for future reference. Prior to assembly it is important to decide on the location of the umbrella.
- Page 3 AG78/ AG78SQ CHECKLIST A - Base Shell and Base Lid H - Arm Connector B - Collar Base Stem I - Mainframe Arm C - Stopper A J - Gemel Hinge D - Bottom Pole Mainframe K - Canopy E - Housing L - Spring Loaded Rib End Cap F - Crank Handle N - Optional Valance...
- Page 4 S T E P 1 Assemble AG78/ AG78SQ Base Select area to set base and place in desired location. Remove base lid from base shell and set aside (Fig. 1). Insert the base stem into the base shell (Fig. 2). Turn collar base stem in a clockwise motion to engage threading.
- Page 5 S T E P 2 Assemble AG78/ AG78SQ Collar Base Stem Re-insert the base stem into the base shell. Turn collar base stem in a clockwise motion to engage threading (Fig. 5). Insert steel wrench provided into holes on top of stem and tighten (Fig.
- Page 6 S T E P 3 Assemble AG78/ AG78SQ Frame Install umbrella frame into collar base stem by lifting umbrella frame and inserting main frame bottom pole into collar base stem. (Two Persons Required) Secure position by tightening the collar in a clockwise direction (Fig.
- Page 7 S T E P 4 Opening, Tilting and Closing To Extend Mainframe Arm and Open Canopy: Turn knob on housing, counter-clockwise (Fig. 11). Push bottom of arm (Fig. 12) until arm is fully extended and reaches Stopper B (Fig. 13). Turn knob clockwise to tighten and secure in place (Fig.
- Page 8 To Tilt Canopy: When in horizontal open position, turn knob counter-clockwise and pull down (Fig. 17) to retract arm to Stopper A (Fig. 18). Tighten knob to secure in place. To Close Canopy: Set canopy to horizontal position (Fig. 19) and turn crank handle counter-clockwise until canopy is in closed position (Fig.
- Page 9 AG78/ AG78SQ Features Base Collar Swivel: Unlock the position of the umbrella by turning the collar of the base in a counter-clockwise direction (Fig. 22). Grab the bottom pole and rotate the umbrella frame (Fig. 23) in either direction to choose your desired location (Fig. 24). After desired location is chosen, return the base collar back to its original position and lock umbrella position by turning the collar clockwise (Fig.
-
Page 10: Care And Maintenance
S A F E T Y P R E C A U T I O N S : • Close the umbrella in windy conditions or when a storm approaches. Never allow the umbrella to flap in the wind; this could damage the canopy. •...
