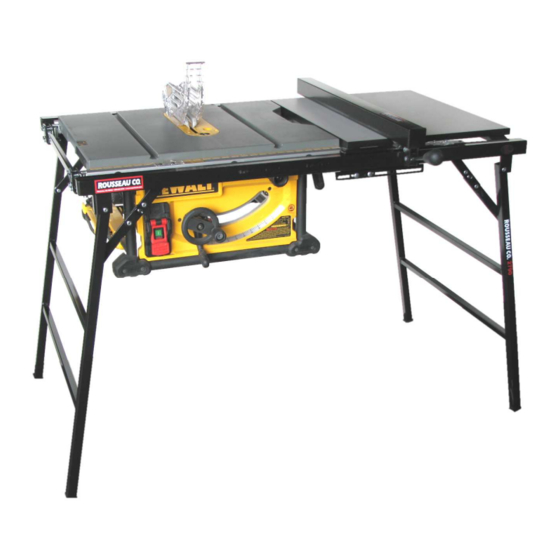

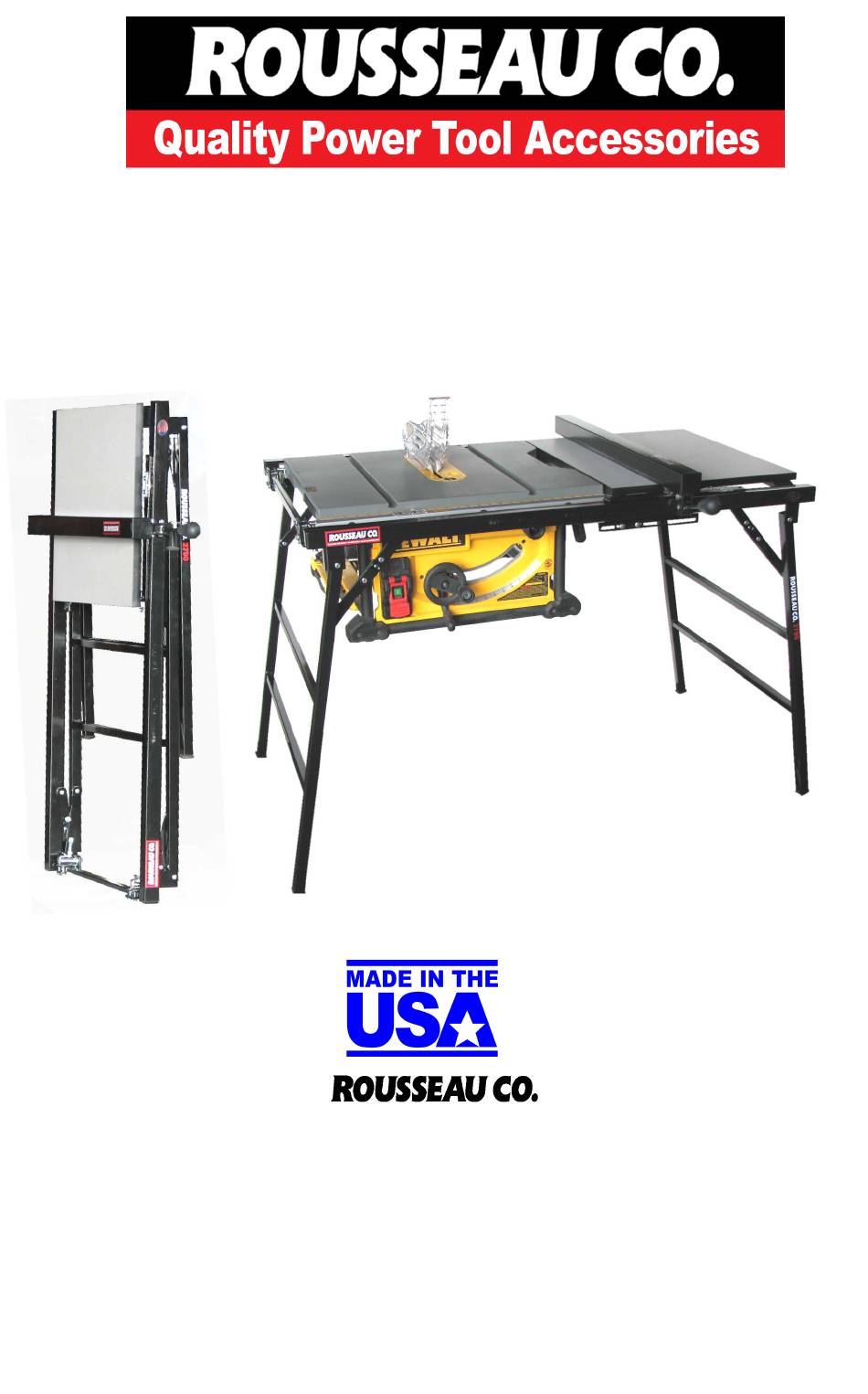

- Page 1 Owners Manual PortaMax Table Saw Stand Models 2780 and 2790 1392 Port Drive, Clarkston, WA 99403 800-635-3416 • 509-758-3954 • Fax 509-758-4991 email:salesinfo@rousseauco.com • www.rousseauco.com Page 1 of 6...
- Page 2 Read and understand all safety guidelines and instructions before operating. GENERAL INFORMATION You have purchased a ROUSSEAU CO. PORTAMAX TABLE SAW STAND. Designed to be light weight and easy to transport it will save you valuable time, money, and space. This stand is designed to give a comfortable, sturdy location for all you do with your jobsite table saw.
- Page 3 Micro Adjust Assembly The Rousseau 2780 and 2790 table saw stands include Micro Adjust Assemblies to allow for easy adjustment to assure the proper fit of your table saw into the stand. Operation is as follows: For front to back adjustment. Loosen the four ¼-20 KEP nuts (#7) and move the Micro Adjust Assembly along either the Stationary Beam or the Moving Beam of the stand.
- Page 4 Remove the fence from the stand. The Rousseau Model 2780 is preset for the DeWalt DWE7480, DW745 and Bosch GTS1031 as well as any other saw with the same table top dimensions. The Model 2790 is preset for the DeWalt DWE 7490 as well as any other saw with the same table top dimensions.
- Page 5 THE SAW TABLE SHOULD BE PARALLEL WITH THE FRONT RAIL OF THE STAND. Turn the stand upside down and place over the saw. Be sure the stand and saw face the same direction. The cross pieces of the stand that support the laminated top will be resting on unsecured top. Place the stand so that the J-Bolts of the Micro Adjust Assemblies on the Stationary Beam capture the edge of the saw table.
- Page 6 ROUSSEAU FENCE Install the fence by clamping it to the front rail of the stand. Un-clamp, move the fence back and forth and re-clamp the fence. Do this a few times to help “break in” the fence. Tightness of clamp and parallelism to...
