VA100
SELV 12 RANGE
Installation and Wiring Instructions
FAN UNITS 12V 50Hz SELV (CLASS III)
CONTROLLERS 220-240V 50Hz MAINS SUPPLY (CLASS II)
WITH 12V 50Hz SELV OUTPUT
PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS.
PLEASE SAVE THESE INSTRUCTIONS
Stock Ref. N°
VA100SVL12
25 81 10D
VA100SVX12
25 83 10E
VA100SVXT12
25 84 10E
VA100SVLH12
25 81 12E
VA100SVXH12
25 83 12F
VA100SVXHT12
25 85 12C
IPX7
Advertisement
Related Manuals for Vent-Axia VA100
Summary of Contents for Vent-Axia VA100
- Page 1 VA100 SELV 12 RANGE Installation and Wiring Instructions Stock Ref. N° VA100SVL12 25 81 10D VA100SVX12 25 83 10E VA100SVXT12 25 84 10E VA100SVLH12 25 81 12E VA100SVXH12 25 83 12F VA100SVXHT12 25 85 12C FAN UNITS 12V 50Hz SELV (CLASS III)
- Page 3 Installation and Wiring Instructions for the VA100 SELV 12 Fan & Controller. IMPORTANT: READ THESE INSTRUCTIONS BEFORE COMMENCING THE INSTALLATION DO NOT install this product in areas where the following may be present or occur: • Excessive oil or a grease laden atmosphere.

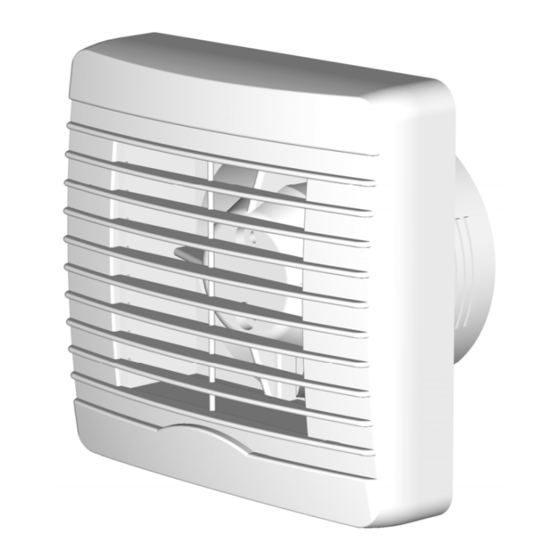

- Page 4 OTHER VENT-AXIA CONTROLLERS. DO NOT CONNECT MORE THAN ONE FAN TO THE CONTROLLER. DESCRIPTION The VA100 SELV 12 range from Vent-Axia is a 100mm extract fan for domestic bathrooms and WC’s available as window, wall or panel mounted models. Model options with shutter, timer and auto humidity control. ACCESSORIES (not supplied)
- Page 5 It is double insulated (CLASS II) and therefore must not be earthed. It provides a 12V 50Hz AC Safety Extra Low Voltage for the VA100 SELV 12 range of fans. Note that only one fan must be connected to the controller.
-
Page 6: Shutter Operation
The controller is already factory set to switch on at about 70% R.H. SHUTTER OPERATION The shutter mechanism in all VA100‘X’ model fans will open approximately one minute after the fan is turned on. The shutter will close about a minute after the fan is switched off. - Page 7 Fig. 2 (VA100SVLH12 AND VA100SVXH12). SELV Supply 1 Phase Supply (12V 50Hz) (220-240V 50Hz). FUSE 3A(UK) Switched Fused Spur Controller Pullcord Fig. 3 (VA100SVL12 AND VA100SVX12). SELV Supply 1 Phase Supply (12V 50Hz) (220-240V 50Hz). FUSE 3A(UK) Switched Fused Spur Controller Fig.
- Page 8 Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- ...
