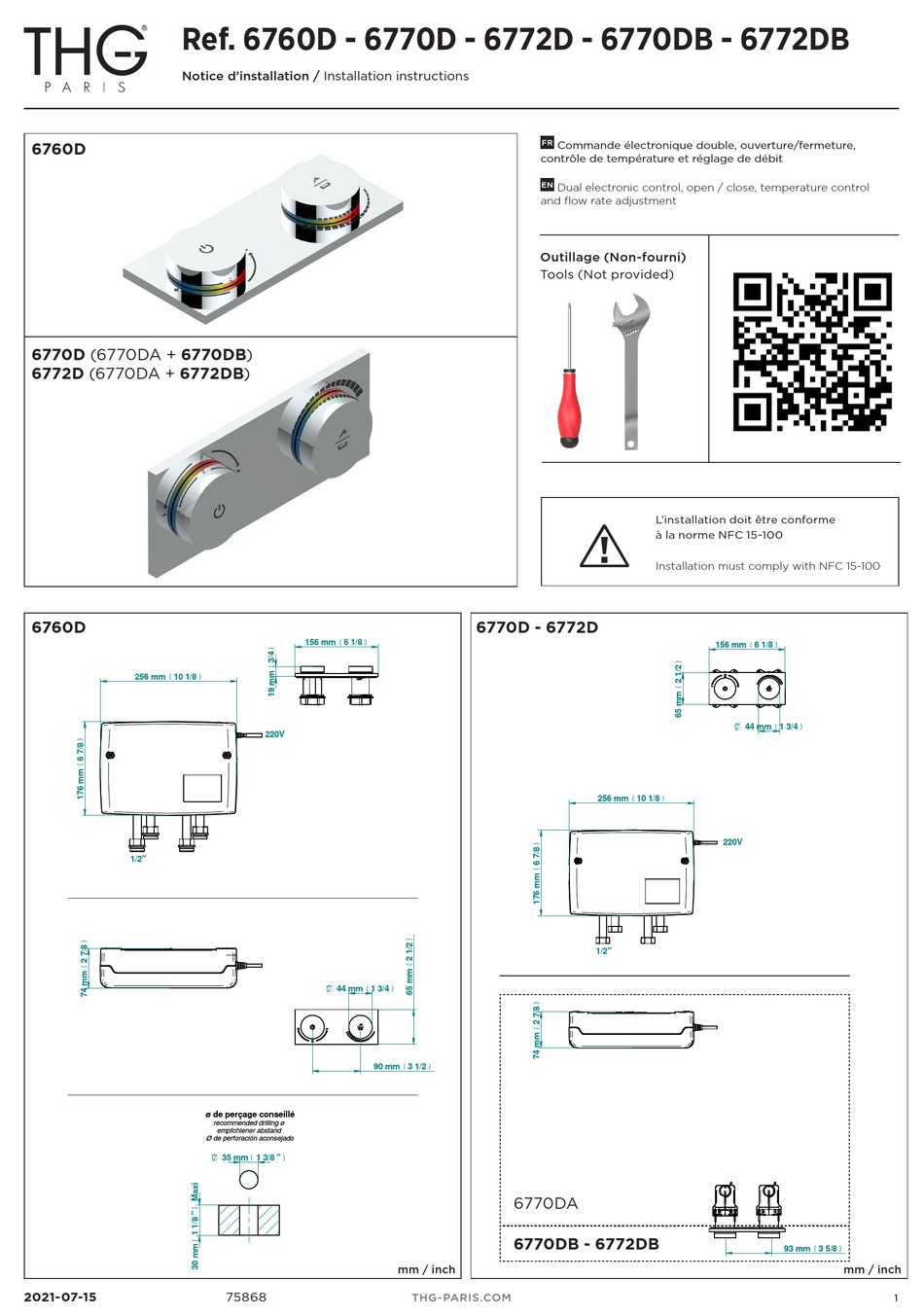

Ref. 6760D - 6770D - 6772D - 6770DB - 6772DB
Notice d'installation / Installation instructions

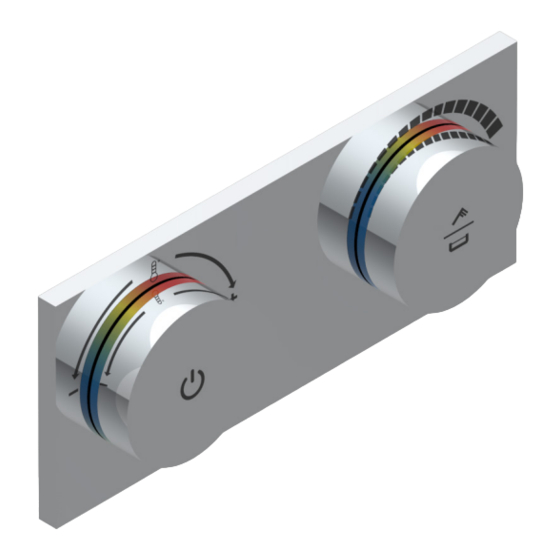

6760D
6770D (6770DA + 6770DB)
6772D (6770DA + 6772DB)
6760D
256 mm 10 1/8
1/2"
2021-07-15
156 mm 6 1/8
220V
O
44 mm 1 3/4
90 mm 3 1/2
ø de perçage conseillé
recommended drilling ø
empfohlener abstand
Ø de perforación aconsejado
O
35 mm 1 3/8 "
75868
FR
Commande électronique double, ouverture/fermeture,
contrôle de température et réglage de débit
EN
Dual electronic control, open / close, temperature control
and flow rate adjustment
Outillage (Non-fourni)
Tools (Not provided)
6770D - 6772D
6770DA
6770DB - 6772DB
mm / inch
THG-PARIS.COM
L'installation doit être conforme
à la norme NFC 15-100
Installation must comply with NFC 15-100
156 mm 6 1/8
O
44 mm 1 3/4
256 mm 10 1/8
220V
1/2"
93 mm 3 5/8
mm / inch
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for THG 6760D
Summary of Contents for THG 6760D
- Page 1 Ref. 6760D - 6770D - 6772D - 6770DB - 6772DB Notice d’installation / Installation instructions Commande électronique double, ouverture/fermeture, 6760D contrôle de température et réglage de débit Dual electronic control, open / close, temperature control and flow rate adjustment Outillage (Non-fourni)
- Page 2 Ce produit fonctionne en 12V, le boitier avec transformateur doit être impérativement placé hors volumes 1 et 2 Installation must comply with NFC 15-100 This product operates on 12V, the box with transformer must be placed outside bathroom electrica zone 1 and 2 2021-07-15 THG-PARIS.COM...
- Page 3 6760D 6770D Alimentation 6772D 6770DA hors volume Power Supply Outside bathroom electrical zone 1 and 2 6770DB 6772DB Water Hoses COLD WATER Electric wires WATER *Non fourni 6760D *Not provided Installation possible avec : Possible installation with : 2021-07-15 THG-PARIS.COM...
- Page 4 *Non fourni 6770D *Not provided Installation possible avec : Possible installation with : f . 2 *Non fourni 6772D *Not provided Installation possible avec : Possible installation with : f . 8 f . 2 f . 5 2021-07-15 THG-PARIS.COM...
- Page 5 Water 6760D Hoses Electric wires BAIN / BATH MAXI 40mm Alimentation électrique Power Supply Ref. 5598/EA* *Non fourni COLD *Not provided WATER WATER 2021-07-15 THG-PARIS.COM...
- Page 6 Water 6770D Hoses Electric wires BAIN / BATH Alimentation électrique Power Supply Ref. 5598/EA* *Non fourni COLD *Not provided WATER WATER 6772D Water Hoses Electric wires Alimentation électrique Power Supply HOT WATER COLD WATER 2021-07-15 THG-PARIS.COM...
- Page 7 30mm max Montage par le devant possible (voir page 8) Front mounting possible (see page 8) 2021-07-15 THG-PARIS.COM...
- Page 8 35mm 40mm MAXI 52mm 2021-07-15 THG-PARIS.COM...
- Page 9 A C C U 1 5 V A U X T L I 2021-07-15 THG-PARIS.COM...
-
Page 10: Hot Water
Fonctions / Functions Inverseur Switcher Possibilité de stopper même en cas de coupure de courant Can be stopped even in the event of a power cut COLD COLD WATER MIXED WATER HOT WATER 50°C 38°C > 38°C 2021-07-15 THG-PARIS.COM... - Page 11 Quick Access 1 en confi- guration usine Clignote 2x violet + eau coupée = configuration sauvegardée It is advisable to Flashing 2x purple + water off = setting saved keep Quick access 1 with the factory settings 2021-07-15 THG-PARIS.COM...
- Page 12 Cold water test Eau froide qui coule Cold water flowing Bleu Eau chaude qui coule Blue Cold froide flowing Clignote 2x orange 2x orange flash Clignote 3x ou 4x orange Orange 3x or 4x orange flash Orange (contact technical support) 2021-07-15 THG-PARIS.COM...
