- Page 1 MULTISWITCH SDIE 516 HIGH LNB INPUTS 12V DC SDIE 516 16 USER BANDS OUT 1 16 UB GSS Grundig Systems GmbH Beuthener Straße 43 90471 Nürnberg - Germany www.gss.de LNB OUTPUTS HIGH...
-
Page 2: Technical Description
GSS.compact with SAT inputs. The multiswitch has 4 satellite inputs universal satellite IF bands (VL, HL, VH, and HH) from a satellite feed and can as cascade . The multiswitch SDIE 516 is powered by an external power supply. Communication between the multiswitch SDIE 516 and the connected head-end station is in accordance with EN 50607. -
Page 3: Connection Plan

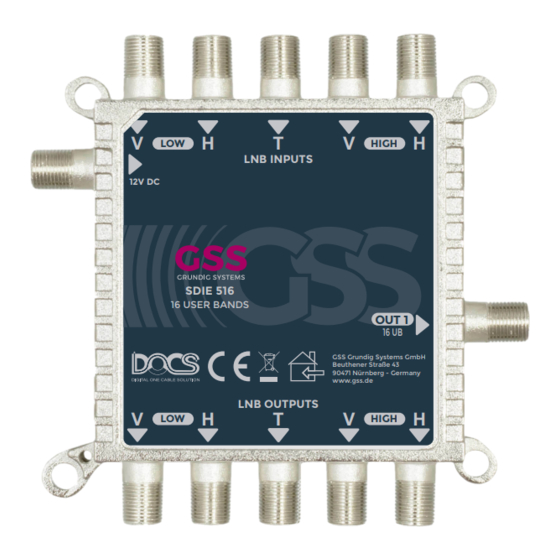

TECHNICAL DESCRIPTION The small DOCS multiswitch SDIE 516 is housed in a rugged aluminum die-cast case and is easy to cascade. The housing has integrated Potential equalization and, with sufficient clearance, ensures good ventilation as well as easy installation. The supplied power supply can be connected directly to the multiswitch SDIE 516. - Page 4 Unused outputs must be connected with galvanically isolated 75 Ω Resistors (FTD 75). HIGH LNB INPUTS 12V DC SDIE 516 Output to 16 USER BANDS OUT 1 Head-end 16 UB GSS Grundig Systems GmbH Beuthener Straße 43 90471 Nürnberg - Germany www.gss.de LNB OUTPUTS HIGH - 4 -...
- Page 5 Unicable frequencies of the multiswitch. Thus, you can receive a satellite with 4 levels (VL, HL, VH, HH) for each input to which you connect an DOCS multiswitch SDIE 516. 16 user bands are available at output 1 (OUT 1).
- Page 6 USER BANDS PROGRAMMING The DOCS multiswitch SDIE 516 has been specially programmed to allow multisatellite reception on a GSS.lamina or GSS.compact head-end with SAT inputs. The frequencies of the user bands are programmed to the input settings of the Unicable II option of the head-end stations.
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS Eingangsanschlüsse / 4 x ( VL, HL, VH, HH ) für / for 1 x Quattro LNC Input Connectors TERR 1 x (UHF/VHF/DVB-T/DVB-T2) 12V / 1 A Eingangsfrequenz / 950 - 2150 MHz Input frequency range TERR 47 - 800 MHz Eingangsimpedanz / 75 Ω... - Page 8 Fax: +49 (0) 911 633 240-98 Phone: +49 (0) 911 633 240-90 90471 Nuremberg (Germany) Contact: www.gss.de info@gss.de • Contact: service@gss.de All information without guarantee. Changes and printing errors reserved. © by GSS Grundig Systems GmbH 04/2021 - 8 -...
