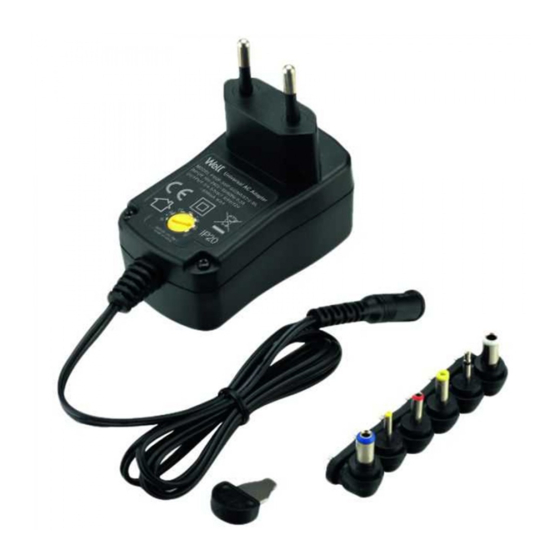

Well PSUP-SMP-600MA/6T/2-WL User Manual

FEATURES:

Interchangeable tips are suitable for the most common models of many devices like radios, mp3 players
and others.

SPECIFICATIONS:

Input Voltage: AC 100-240V, 50/60Hz
Input Plug: EU 2pin
DC tips: 2.5mm mono, 3.5mm mono, 3.5x1.35mm, 5.0x2.1mm, 5.5x1.5mm, 5.5x2.5mm
Short circuit, Overload, Over temperature Protections
Model
PSUP-SMP-600MA/6T/2-WL
PSUP-SMP-1000MA/6T/2-WL
PSUP-SMP-1500MA/6T/2-WL
PSUP-SMP-2250MA/6T/2-WL
PSUP-SMP-3000MA/6T/2-WL

USE:

Connect correct the tip (select from the existing ones in the package, in case of any doubt, please ask the
reseller) to DC output of adapter (picture 2). Select the desired output voltage (verify the device input
voltage on the rating label or in the user manual) using the voltage selector (picture 3). Connect power
adapter to device and then to AC outlet (LED with turn on). Please be careful with the polarity: for positive
polarity devices "+" mark on the tip must correspond to "+" mark on the DC connector, for negative
polarity devices "-" mark on tip must correspond to "+" mark on DC connector. Adapter is protected against
overheating, short circuit and overload.
USER MANUAL
Universal power adapter with 6 interchangeable tips
Max. Power (W)
7.2W
12W
18W
27W
36W
Output Voltage (V)
3V/4.5V/5V/6V/7.5V/9V/12V
3V/4.5V/5V/6V/7.5V/9V/12V
3V/4.5V/5V/6V/7.5V/9V/12V
3V/4.5V/5V/6V/7.5V/9V/12V
5V/6V/7.5V/9V/12V
13.5V/15V
Output current (mA)
600mA
1000mA
1500mA
2250mA
3000mA
2400mA
