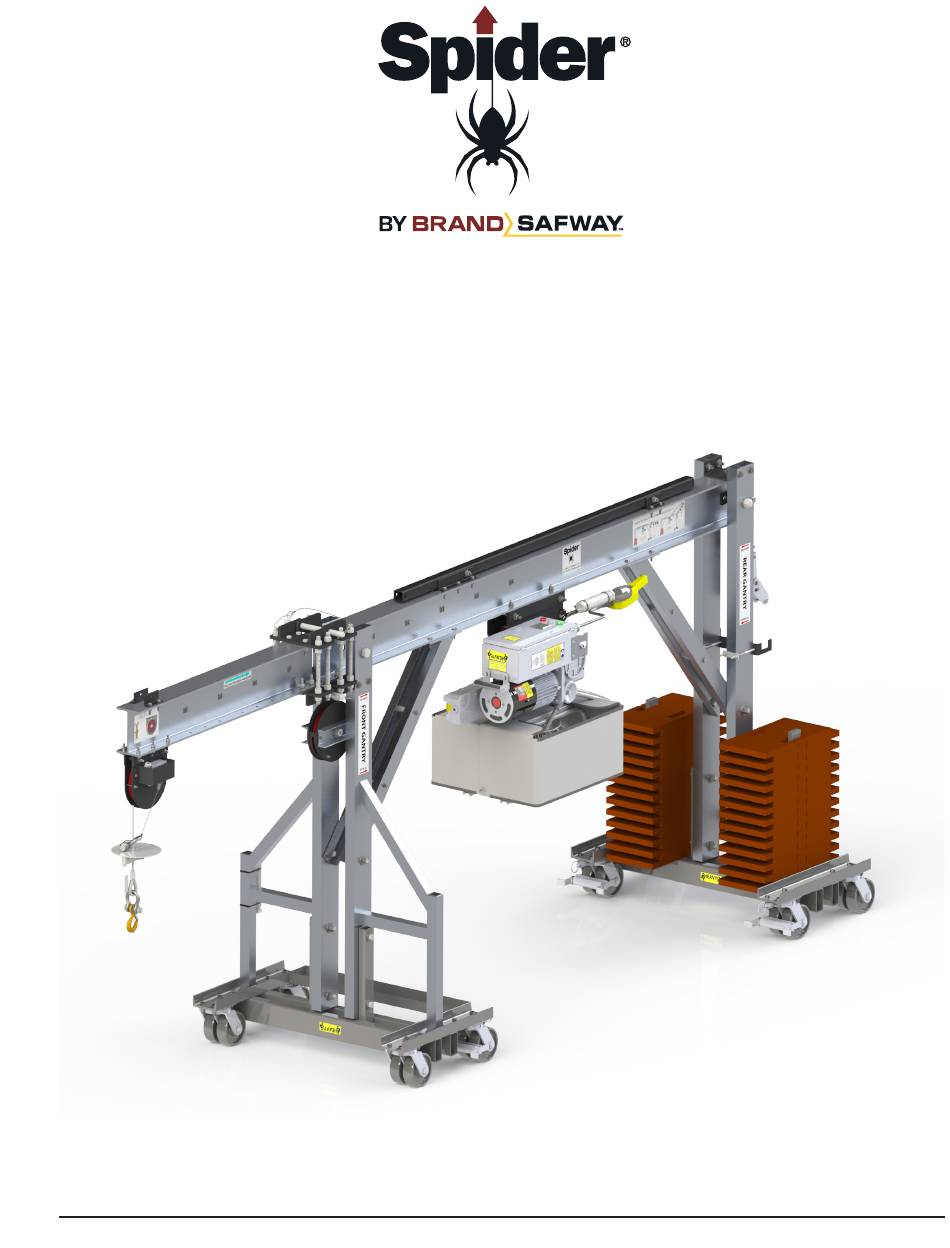

- Page 1 OPERATOR’S MANUAL SPIDER GLAZIER 2200 Manufactured by: SafeWorks | 365 Upland Drive, Seattle, WA 98188 | Phone: (877) 774-3370 | Fax: (206) 575-6240 Email: Spider@SpiderStaging.com | Website: SpiderStaging.com 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25...
- Page 2 • It is the responsibility of the user to determine whether this equipment, and all other components used with it, will be in conformity with the provisions of federal, state, and local ordinances and regulations. Page 2 of 27 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25...
-
Page 3: Table Of Contents
Hoist Installation ............................19 i) Wire Winder and Overspeed Safety Device Installation................20 j) Reeving ..............................21 5. Working Configurations a) Flat Configurations...........................23 b) Raised Configurations ..........................24 Continued on next page 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25 Page 3 of 27... - Page 4 Table of Contents (Continued) 6. Transportation/Storage Configuration a) Configuring for Storage or Transportation ....................25 7. Wire Rope a) Important Points to Note ..........................26 b) 30-Day Inspection ............................26 Wire Rope Inspection Report ........................27 Page 4 of 27 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25...
-
Page 5: Safety
4. The Spider Glazier 2200 is designed to be assembled by a minimum of three workers and typically operated by three: a loader (on the lowest level), a positioner (who operates the remote from an intermediary level above the loader) and a spotter (stationed at the hoist on the top level). -
Page 6: Osha Cfr 29 Regulations
2. OSHA CFR 29 REGULATIONS Selected portions of OSHA Code of Federal Regulations Title 29 have been reproduced in this section for the convenience of Spider Glazier 2200 users. Spider assumes no responsibility for the accuracy, completeness, or currentness of the regulations quoted. Obtain additional regulations from the nearest office of the Department of Labor. a) 1926 Subpart C: General Safety and Health Provisions, Standard 1926.20: General... -
Page 7: C) 1926 Subpart C: General Safety And Health Provisions, Standard 1926.28: Personal Protective Equipment
(f) All safety belt and lanyard hardware, except rivets, shall be capable of withstanding a tensile loading of 4,000 pounds without cracking, breaking, or permanently deforming. 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25 Page 7 of 27... -
Page 8: Equipment For Material Handling
In hoisting ropes, six randomly distributed broken wires in one rope lay or three broken wires in one strand in one rope lay; ii. Abrasion, scrubbing, flattening, or peening, causing loss of more than one-third of the original diameter of the outside wires; Page 8 of 27 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25... -
Page 9: H) 1926 Subpart R: Steel Erection, Standard 1926.760: Fall Protection
3. Be provided, at heights over 15 and up to 30 feet above a lower level, with a personal fall arrest system, positioning device system or fall restraint system and wear the equipment necessary to be able to be tied off; or be provided with other means of protection from fall hazards in accordance with paragraph (a)(1) of this section. 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25 Page 9 of 27... -
Page 10: The Spider Glazier 2200

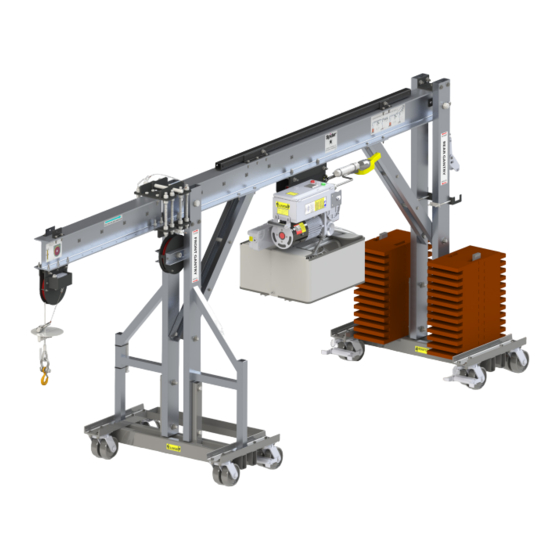

3. THE SPIDER GLAZIER 2200 The Spider Glazier 2200 is used to lift and position curtain wall panels for installation. Maximum rated load is 2,000 lb. a) Features of the Spider Glazier 2200 Feature Function Benefit 230 V, 60 Hz, 16 A Dual Lift M1009 • Maximum rated load is 2,000 lb. -
Page 11: B) Parts Of The Spider Glazier 2200
Hook Brace Handle Front Gantry Wire Winder Steering Handle Bracket Counterweights Locking Casters (2 sets inboard Non-Locking sides of Gantries) Casters Non-Locking Rear Gantry Casters 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25 Page 11 of 27... -
Page 12: Assembly
Steering Handle Attachment Pad Eye Caster Brakes Figure 1: Front Gantry Figure 2: Rear Gantry Cotter Pin Steering Handle Shackle Figure 3: Steering Handle Attached Page 12 of 27 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25... -
Page 13: B) Installing Backspan
(shown in yellow) Tieback Locking Device Bracket Figure 5: Backspan Figure 4: Vertical Bolts on Front Gantry Bracket Rear Gantry Front Gantry Figure 6: Backspan Installed 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25 Page 13 of 27... -
Page 14: C) Angle Brace Installation
Figure 7: Angle Brace Hardware Angle Brace Flanged End Installed Tighten these screws, but do NOT make upright walls bow in. Figure 9: Angle Brace Installed Page 14 of 27 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25... -
Page 15: D) Outreach Installation
Limit Switch Connection Cable routing Limit Switch Connection Figure 10: Outreach Bottom Pin Figure 11: Outreach Top Pin Installation Installation and Limit Switch Power Cord Routing 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25 Page 15 of 27... -
Page 16: E) Counterweight Installation
Post at Other End of Slot Post at One End of Slot in Counterweight in Counterweight Figure 13: Second Counterweight Offset from First Figure 12: Counterweight Installation Page 16 of 27 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25... -
Page 17: F) Installing Tieback Locking Device
Install Sling Link on Shackle. 5/8" Shackle Sling Link 5/8" Shackle Tieback Locking Device Bracket Tieback Locking Device To Tieback Anchor Figure 14: Installing Tieback Locking Device 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25 Page 17 of 27... -
Page 18: G) Using A Tieback
Pull handle DOWN to insert Tieback Wire Rope; release to lock wire rope in place. Tieback Wire Rope Figure 15: Using the Tieback Locking Device Page 18 of 27 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25... -
Page 19: H) Hoist Installation
Backspan Backspan 3/4-inch screws Hoist Bracket Gantry Bracket Hoist Rope Drive Hoist Bracket 1/2-inch screws Figure 18: 3/4-inch Screws Installed Figure 17: 1/2-inch Screws Installed 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25 Page 19 of 27... -
Page 20: I) Wire Winder And Overspeed Safety Device Installation
Entrance Tube Brackets Figure 19: Hitch Pin Removal Triangular Overspeed Bracket Screw Wire Winder Entrance Tube Figure 20: Wire Winder Installation Figure 21: Overspeed Safety Device Installation Page 20 of 27 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25... -
Page 21: J) Reeving
3. Gantry Safety Device Thimble End of Sheave Wire Rope with Wire 5. Hoist Rope Shackle and Hook Shroud Drive Figure 22: Reeving the Wire Rope 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25 Page 21 of 27... -
Page 22: Working Configurations
** Refers to the position of the Front Sheave. † Exact number has been rounded up. ‡ Weight of each counterweight is approximately 50 pounds. Page 22 of 27 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25... -
Page 23: A) Flat Configurations
Flat Inner Configuration 25 counterweights 12.5” Flat Mid Configuration 37 counterweights 12.5” Flat Outermost Configuration 49 counterweights 12.5” Figure 24: Configurations with the Outreach in Flat Position 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25 Page 23 of 27... -
Page 24: B) Raised Configurations
Raised Inner Configuration 29 counterweights 12.5” Raised Mid Configuration 37 counterweights 12.5” Raised Outermost Configuration 44 counterweights 12.5” Figure 25: Configurations with the Outreach in Raised Position Page 24 of 27 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25... -
Page 25: Transportation/Storage Configuration
Beam to one of the Front Gantry uprights. shroud, or otherwise protect it. Lower Hinge Pin in Place Secure Limit No counterweights necessary Switch Shackle for this configuration Figure 26: Transportation/Storage Configuration 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25 Page 25 of 27... -
Page 26: Wire Rope
• Do not use cable clips on the suspension wire rope. They are not as strong as a locked-in splice and can loosen. • Length of wire rope provided with the Spider Glazier 2200 is 300 feet. b) 30-Day Inspection The wire rope should be examined by a person who is known to be trained and knowledgeable, and able to determine whether the wire rope still is safe to use. -
Page 27: Wire Rope Inspection Report
Other Look for damage—rope must have 3-ton minimum strength. First signs of wear of wire rope guide Make sure rope is properly lubricated 703739-1 Revision D Spider Glazier 2200 Operator's Manual Issue Date: 2019-Jan-25 Page 27 of 27...
