NEXTIVITY Cel-Fi GO G41 Quick Start Manual

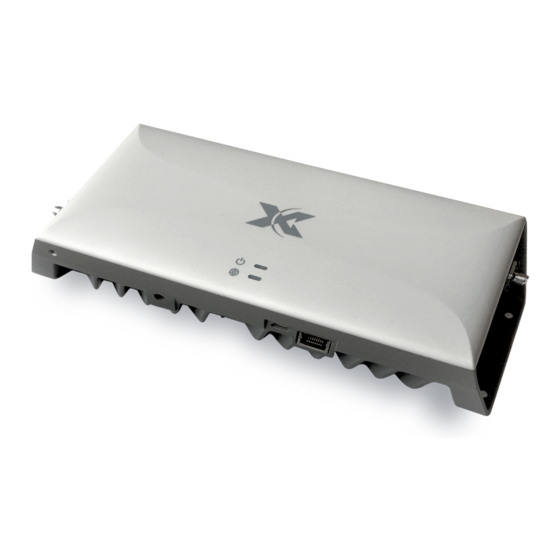

Cel-Fi GO G41
™
Quick Start Guide
1
2

MODEL NUMBERS:

G41-JE-001 G41-9E-001 G41-QE-001 G41-NE-001
G41-JE-002 G41-9E-002 G41-QE-002 G41-NE-002
G41-JE-003 G41-9E-003 G41-QE-003 G41-NE-003
KG41-JE-111 KG41-9E-111 KG41-QE-111 KG41-NE-111
KG41-JE-222 KG41-9E-222 KG41-QE-222 KG41-NE-222
KG41-JE-333 KG41-9E-333 KG41-QE-333 KG41-NE-333

Mounting Instructions

REQUIRED HARDWARE

NOTE: This package comes equipped with screws and drywall anchors for mounting in
standard drywall. Before you install the mounts, make sure there are no wires or other
objects, or metal plates, behind the drywall that may interfere with the inserts, screws,
Screws (4)
Drywall Anchors (4) mount, or mounted units.
Determine Cel-Fi GO G41 location.
(Refer to Installation section).
Determine mounting hole locations.

Antenna Options

Review the latest authorized antennas at:
www.cel-fi.com/antennas
Install unit.
4
Attach the donor and server antennas.
Output
Band Link ERP
2
Power
1
Downlink 20 (dBm) 25.1 (dBm)
1
Uplink 22 (dBm) 27.1 (dBm)
Downlink 20 (dBm) 25.1 (dBm)
3
Uplink 22 (dBm) 27.1 (dBm)
Downlink 20 (dBm) 25.4 (dBm)
5
Uplink 20 (dBm) 25.4 (dBm)
Downlink 20 (dBm) 25.4 (dBm)
7
Uplink 22 (dBm) 27.4 (dBm)
Downlink 20 (dBm) 25.1 (dBm)
8
Uplink 20 (dBm) 25.1 (dBm)
Downlink 20 (dBm) 25.1 (dBm)
20
Uplink 20 (dBm) 25.1 (dBm)
Downlink 20 (dBm) 25.1 (dBm)
28L
Uplink 20 (dBm) 25.1 (dBm)
Downlink 20 (dBm) 25.1 (dBm)
28U
Uplink 20 (dBm) 25.1 (dBm)
Downlink 20 (dBm) 25.4 (dBm)
40
Uplink 22 (dBm) 25.4 (dBm)
Model Number Bands Supported
G41–JE 1, 3, 5, 7, 8, 28L, 40
G41–9E 1, 3, 7, 8, 20
G41–QE 1, 3, 5, 7, 28L
G41–NE 1, 3, 5, 7, 28U, 40
420N007-G41-001-10RB
qsg-go-g41_1-3-5-28L_eng_21-0624
