PERFORMANCE SPECIFICATIONS
And Features
Interface
Tuning
Push button digital control
Display
2 ½ Digit, Seven Segment Digital Readout
Mode
Selects Off-Air or Cable output frequencies
Video
Input Level:
Standard 1 Vp-p
Input Impedance:
75 ohms
Connector:
RCA
Audio
Accepts Left and Right audio inputs for full mono signal.
Input level:
Standard 1 Vp-p ( 2 Vp-p max )
Input Impedance:
22K ohm minimum
Frequency Response:
20 Hz to 14 kHz
Channel Separation:
N/A
Signal to Noise:
62 dB
Distortion:
Less than 0.5 %
Connector:
Two RCA, Right and Left
Misc.
Channel Range:
UHF 14 to 69, Cable 65 to 94, 100 to 125
RF Output Level:
+20 dBmV, F connector
Power Supply:
9 Vdc, 300 mA minimum
Size
3.9 x 3.9 x 1.5 inches
Internal Band Pass Filtering to virtually eliminate spurious signals
Push button tuning and digital display provides a user friendly interface.
1001F
Theater 1001F

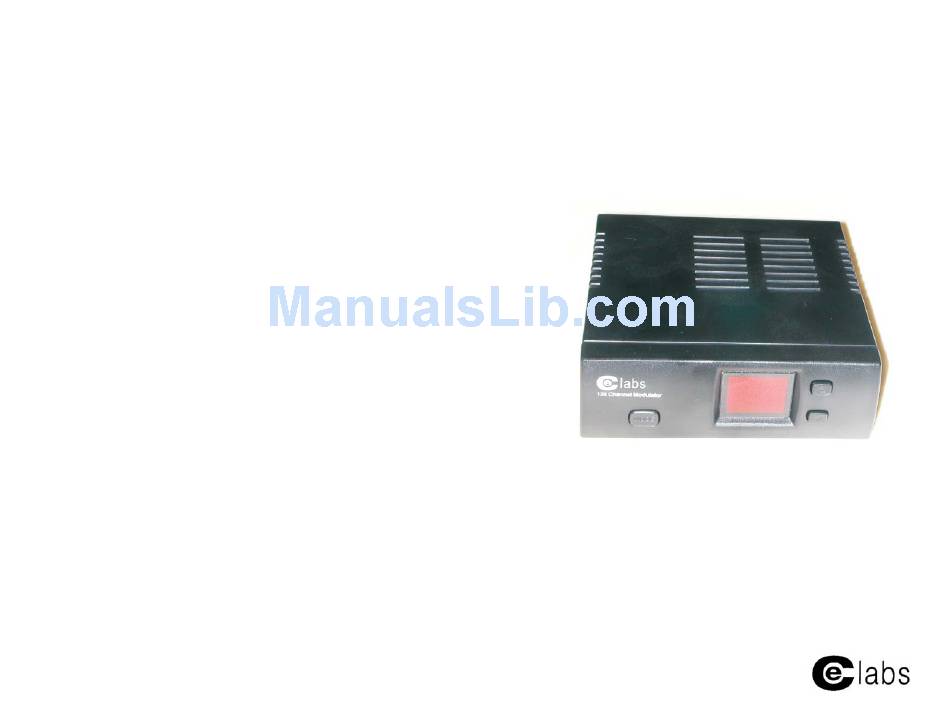

Audio/Video Modulator
Information Brochure
Distributes a Video/Audio Source to multiple
locations over a single coax cable.
Cable Electronics, Inc.
3209 Wood Drive
Garland, Texas 75041
(469)429-9200 Fax (469)429-9205
1001F
