Summary of Contents for Experia 48 00 81

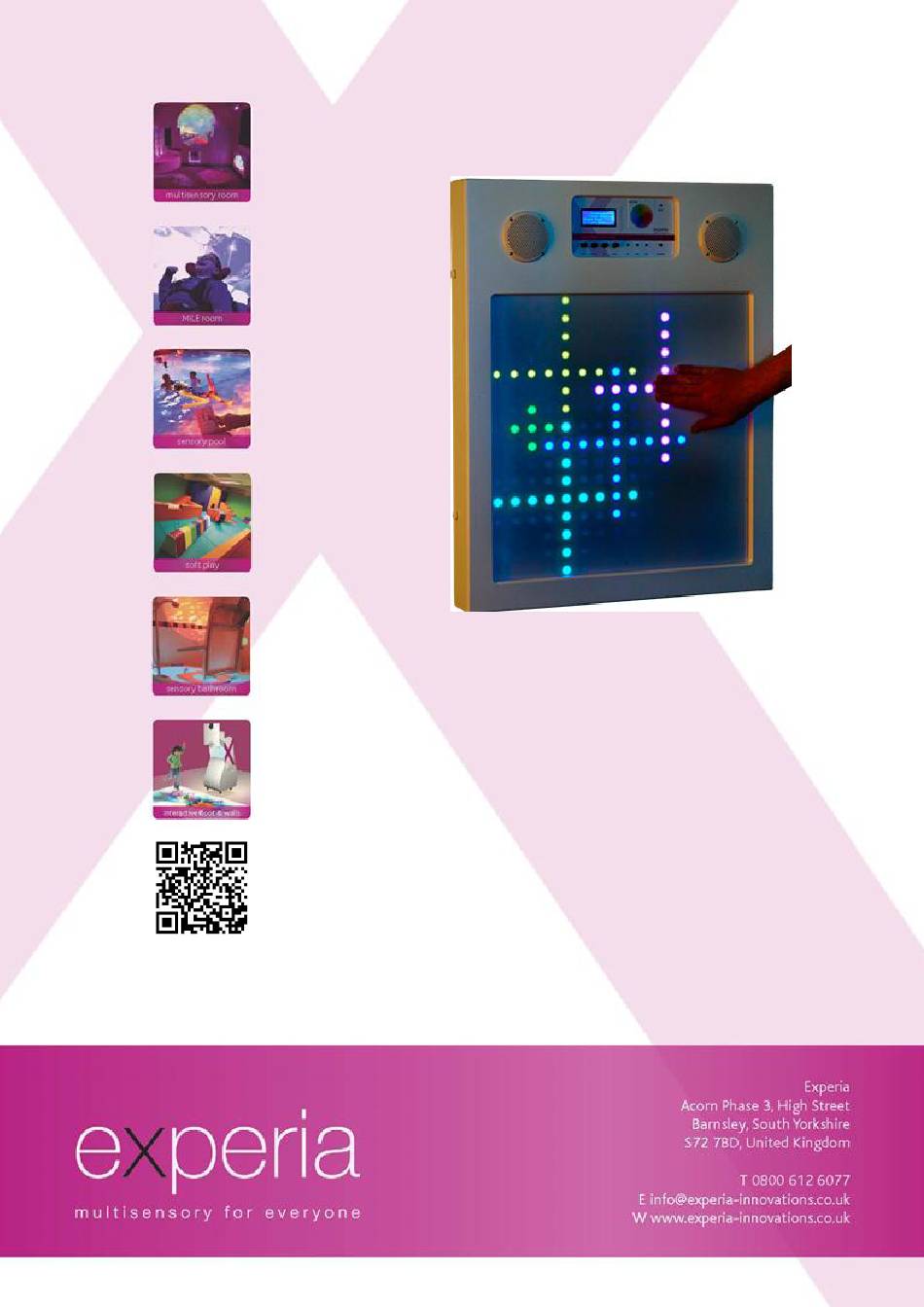

- Page 1 Musical Touchwall 48 00 81...
- Page 2 Congratulations on the purchase of a Musical Touch Wall. The Touch Wall has been designed specifically for people with special needs and should, if used in accordance with these guidelines, offer years of interactive learning and fun! The Touch Wall offers endless opportunities to develop numerous skills including colour recognition, cause and effect, motor skills and many more! Please ensure you read and follow these Instructions carefully before installing or operating the unit.
- Page 3 It is recommended that any wall mounted product is installed by a competent person It is essential that any Experia wall mounted product rests on the floor or a suitable load bearing surface with at least two wall fixings to prevent the unit falling forwards.
- Page 4 Control Panel Explained · Speed: adjusts the speed of the LED pattern. · Sensitivity: adjusts the level of reactivity of the panel · Fade: adjusts the length of time the LEDs illuminate after being triggered. · Volume: adjust the sound levels from the speakers. ·...
- Page 5 Operating Instructions Switching on the Touch Wall 1. Plug in and switch on at the mains supply. The Touch Wall will now self-check. 2. Once the self-check has occurred the Touch Wall goes into sleep mode. Press the control panel on-off button to wake up the Touch Wall which will now boot-up. 4.
- Page 6 30 seconds) and switched on again? If so, please contact support. Q4. The pair button doesn’t work A4. That feature isn’t available on this version of Touch Wall. Support Contact Details For USA please email support@experia-usa.com For Canada please email support@experia-canada.com For UK and rest of the world email support@experia-innovations.co.uk Telephone: 0044 (0) 800 612 6077.
- Page 7 Technical Specifications Dimensions: 755mm(H) x 610mm (W) x 90mm(D) Weight: 13.9 kg Construction: Acrylic front panel surrounded by timber with a white finish Operating Power: 110-240vac Power Consumption: 500mA@ 110v 250mA@ 240V 256x 20mA 108mW RGB LED colour matrix with maximum luminous intensity of 950mcd per LED (when green)
- Page 8 If you would like a FREE Sensory Brochure you can request one by telephone or visiting our website. For more information on Experia Free 3D Room Designs or to schedule an onsite visit from our sales team then please request a visit by telephone, email or by using the form on our website.
- Page 9 All products manufactured by ourselves have a three year warranty which can be extended to 5 years if required at additional cost. Manufactured in the UK by: Experia, Acorn Phase III, High Street, Grimethorpe, Barnsley, South Yorkshire, S72 7BD © Copyright 2015 Experia All rights reserved Experia. Experia is a registered trademark...
