Matweld 02500 Manual

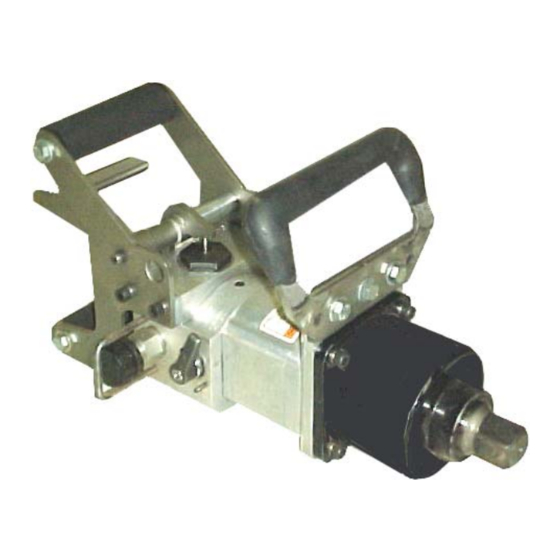

10 gpm 1” impact wrench
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
632 South 3rd Street
P.O. Box 2816 • Paducah, KY 42002
270-444-0085
Fax: 270-443-6180
Website: www.matweld.com
Email: customerservice@matweld.com

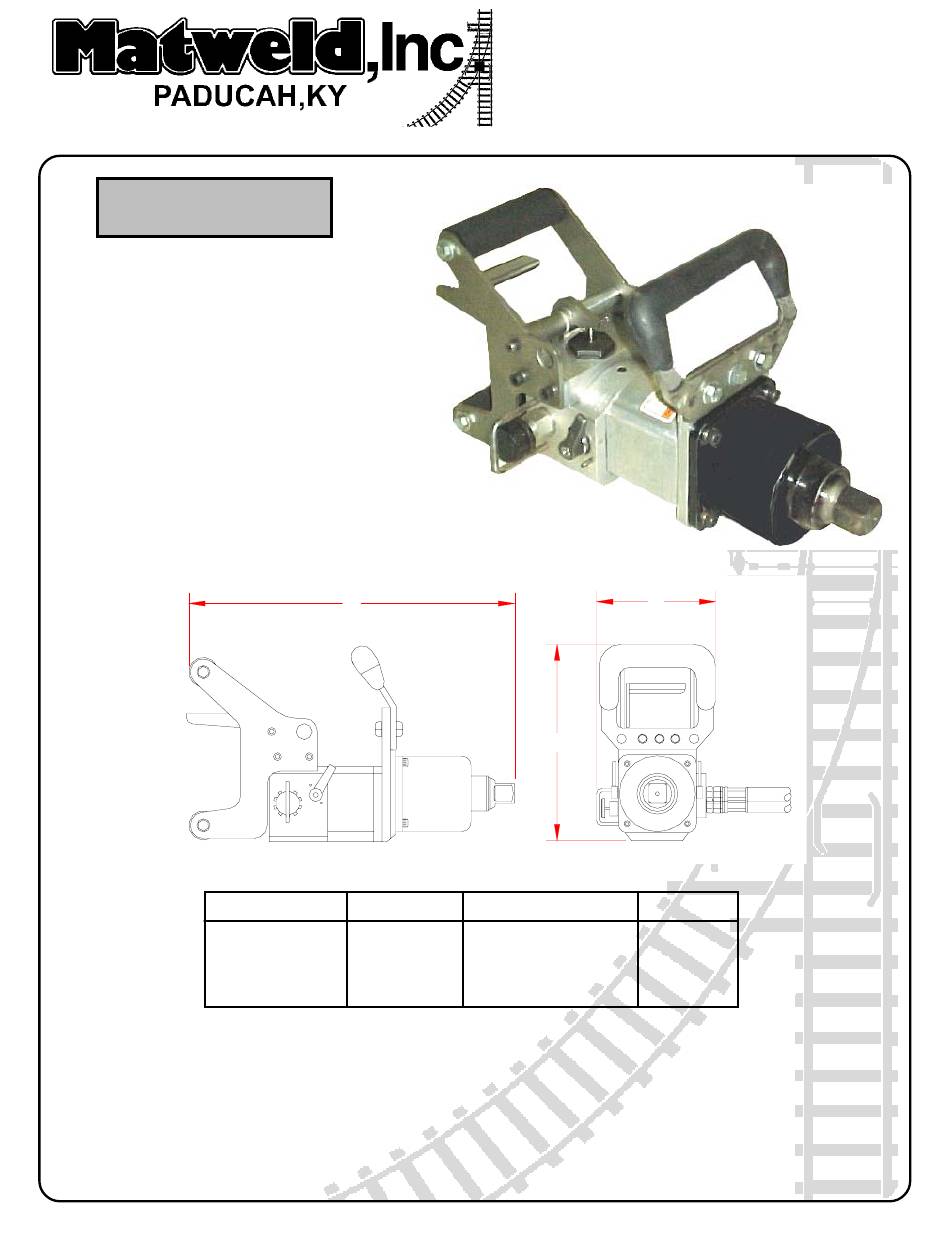

02500 10 GPM
1" IMPACT WRENCH
The 1" Impact wrench is capable of
handling the toughest jobs. Crossing,
frog or track bolts are no problem for
this rugged tool. Anti-vibration design
and optional handle provide an efficient,
safe and ergonomic work position for
the task at hand. A torque adjustment
knob "dials in" torque from 0-3500 ft lb.
Designed for 5 or 10 gpm.
B
A
C
FLOW
PRESSURE
DIMENSIONS
WEIGHT
5 gpm (19 lpm)
2000 psi
A - 18" (457mm)
36 lbs
or
(140 bar)
B - 8" (203mm)
(16.36 kg)
10 gpm (38 lpm)
C - 10" (254mm)
MATWELD, INC.
PHONE:(270) 444-0085
FAX:(270) 443-6180
Matweld reserves the right to change parts, features, or specifications without notice.
09/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 02500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Matweld 02500

  • Page 1 A - 18” (457mm) 36 lbs (140 bar) B - 8” (203mm) (16.36 kg) 10 gpm (38 lpm) C - 10” (254mm) MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...
  • Page 2 MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...

  • Page 3: General Safety Precautions

    TOOL. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY OR EQUIPMENT DAMAGE. MATWELD HAS NO CONTROL OVER TOOL USE OR OPERATION ONCE IT LEAVES THE MATWELD PLANT. MATWELD HAS NO CONTROL OVER OPERATOR OR MAINTAINER SELECTION. THE CUS- TOMER MUST ASSUME RESPONSIBILITY FOR THE TOOL’S SUITABILITY FOR A PARTICULAR FUNC-...
  • Page 4 FAILURE TO DO SO MAY RESULT IN EQUIPMENT DAMAGE AND / OR PERSONAL INJURY OR DEATH. • CLEAN UP ANY OIL OR FLUID SPILLS IMMEDIATELY. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...
  • Page 5 HAVE SUPERVISOR ADD ADDITIONAL PRECAUTIONS RELATING TO THE SPECIFIC WORK AREA AND LOCAL SAFETY REGULATIONS BELOW: MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...

  • Page 6: Safety Precautions

    8. DO NOT ATTEMPT TO LOOSEN LOCKED UP WRENCH WITH ANY HAND TOOL. DISCONNECT FROM POWER SOURCE AND THEN REPAIR WRENCH. 9. USE A SOCKET RETAINING RING TO KEEP SOCKET ON THE ANVIL. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...
  • Page 7 SIGNED TO ACCEPT ONLY THE RECOMMENDED 10 GPM AND WILL MALFUNCTION AND OVERHEAT THE OIL IF USED OTHERWISE. 7. TURN THE POWER SOURCE “OFF” BEFORE DISCONNECTING WRENCH. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...
  • Page 8 OTHER FLUIDS THAT MEET OR EXCEED THIS SPECIFICATION CAN BE USED. *SEE COLD WEATHER OPERATION HYDRAULIC OIL NOTE. 5. HAVE TOOL INSPECTED, AT LEAST ANNUALLY, BY MATWELD OR A MATWELD QUALIFIED SER- VICE REPRESENTATIVE TO DETERMINE IF TOOL IS IN NEED OF SAFETY CHANGES OR WORN PART REPLACEMENT.
  • Page 9 LESS). 6. HYDRAULIC OIL RUNNING OUT OF FRONT END… • REPLACE FRONT SHAFT SEAL USING PART NO. 01612 SHAFT SEAL KIT. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...
  • Page 10 6. LOOSEN AND RETIGHTEN THE TEST BOLT A COUPLE OF TIMES TO VERIFY THE SETTING. 7. RETIGHTEN THE LOCK COLLAR. 8. TORQUE GAUGE MAY BE REMOVED ONCE DESIRED TORQUE IS SET. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...
  • Page 11 TENER TYPE IS CRITICAL, THE WRENCH SHOULD BE SET AS CLOSE TO THE DESIRED TORQUE AS POSSIBLE AND A CALIBRATED TORQUE WRENCH USED TO VERIFY OR CHECK THE FAS- TENER TORQUE PERIODICALLY. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...

  • Page 12: Back Pressure

    BLOW. THIS IS WHY IT IS VERY IMPORTANT TO DIRECT THE FLOW INTO THE TOOL CORRECTLY. REVERSING THE HOSES TO TEST MAY RESULT IN BLOWN SEALS, DAMAGE TO THE TOOL, AND PERSONAL INJURY. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...

  • Page 13: General Notes

    02500 IMPACT WRENCH GENERAL NOTES: MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...
  • Page 14 NO. 02598 SHAFT SEAL KIT DUST SEAL #02599 - INTERNAL SEAL KIT #02598 - 18mm SHAFT SEAL KIT CALL MATWELD BEFORE ORDERING IF YOU HAVE QUESTIONS CONCERNING WHICH MOTOR YOU HAVE MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice.
  • Page 15 OVAL SEAL FORMED PLASTIC SEAL #02599 - INTERNAL SEAL KIT #02597 - 20mm SHAFT SEAL KIT CALL MATWELD BEFORE ORDERING IF YOU HAVE QUESTIONS CONCERNING WHICH MOTOR YOU HAVE MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice.
  • Page 16 02500 IMPACT WRENCH MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...
  • Page 17 5/16-18 x 6 HEX HEAD BOLT A5602 1/4--20 x 5/16 SET SCREW A6749 #10-24 HEX NUT 02514 BEARING SPACER A2054 1/2-13 NYLOCK NUT MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...
  • Page 18 02515 EXTENSION ARM WELDMENT A1042 3/8-16 x 1 HEX HEAD BOLT A6930 DIA. 3/8 x 1 SHOULDER BOLT 00106 HANDLE GRIP MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...

  • Page 19: Decal Legend

    02500 IMPACT WRENCH DECAL LEGEND: MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...
  • Page 20 HOSES, COUPLERS, BITS, SOCKETS, AUGERS, AND BATTERIES. LIMITATION OF LIABILITY EXCEPT AS PROVIDED ABOVE, MATWELD SHALL IN NO EVENT BE LIABLE OR RESPONSIBLE FOR ANY INJURY, LOSS OR DAMAGE, DIRECT, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR MISUSE OR INABILITY TO USE THE PRODUCT, HOWEVER CAUSED AND ON ANY THEORY...
  • Page 21 7. NEVER LEAN ON TOOL OR USE IT FOR PRYING. ALL OF THE ABOVE SHOULD BE REVIEWED WITH AND UNDERSTOOD BY THE END USER OF THIS PRODUCT! MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 09/09...
  • Page 22 Company___________________________________________________ Serial # of your Matweld tool___________________________________ (Upon receiving your Matweld tool, make sure to list serial number above so that a good record is kept for order information.) MATWELD HYDRAULIC TOOL LIST All Matweld Hydraulic Tools operate at 5 or 10 GPM @ 2000 PSI POWER UNITS: 00100K –...
