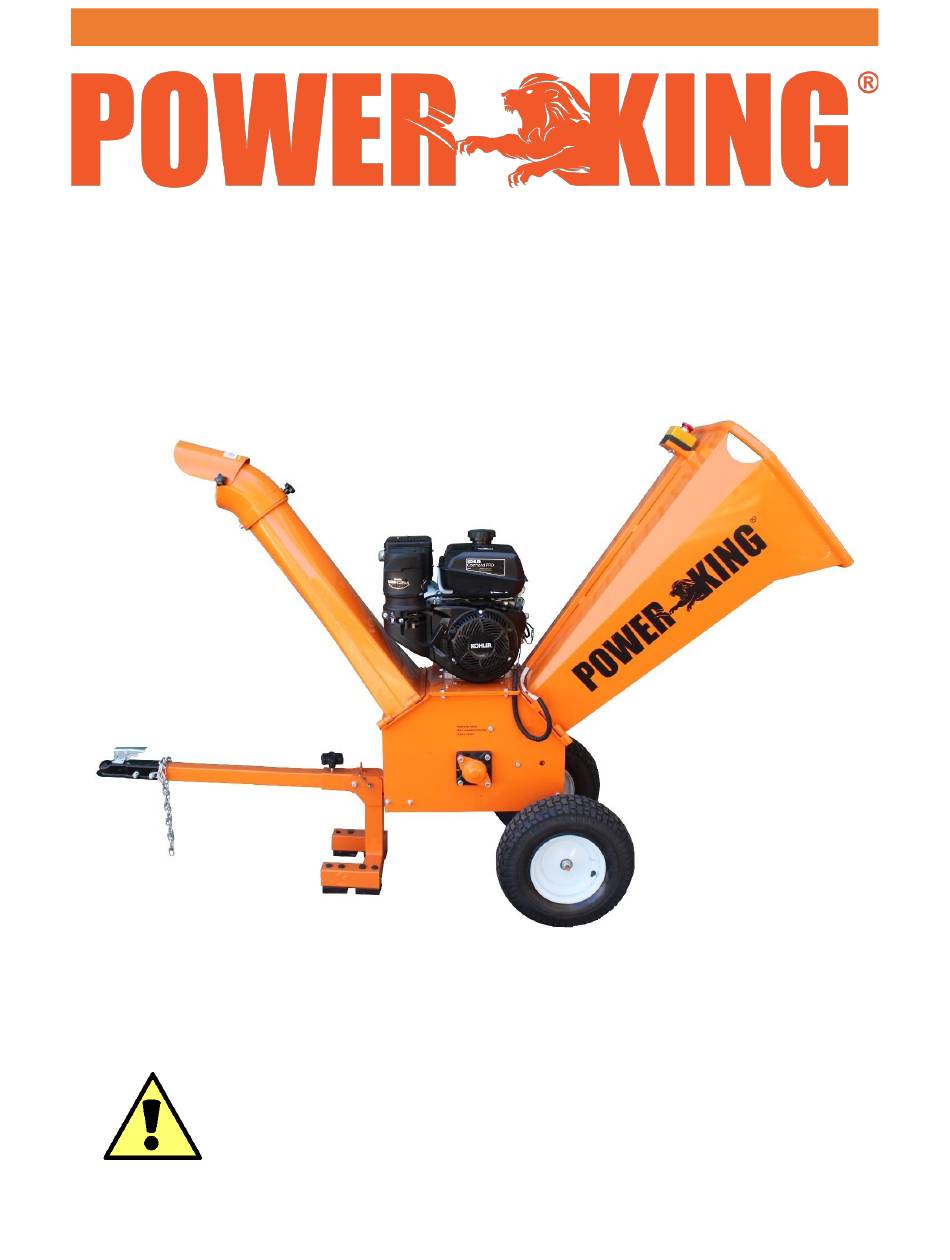

POWERKING
1-800-344-3371
SUPPORT@QVTOOLS.COM

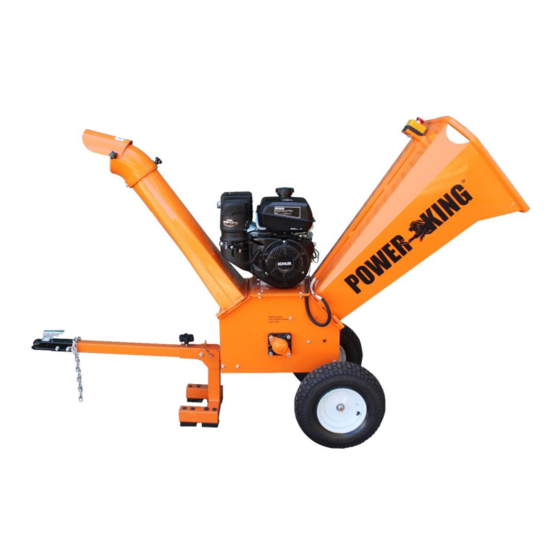

5" 14HP Chipper Shredder
4" 9.5HP Chipper Shredder
MODEL PK0915 (5") / PK0903 (4")
OWNER'S MANUAL AND OPERATIONS GUIDE
WARNING:
This product can expose you to chemicals including
benzene, carbon monoxide, and lead which is known to the State of
California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for power King PK0915
- Page 1 1-800-344-3371 SUPPORT@QVTOOLS.COM 5” 14HP Chipper Shredder 4” 9.5HP Chipper Shredder MODEL PK0915 (5”) / PK0903 (4”) OWNER’S MANUAL AND OPERATIONS GUIDE WARNING: This product can expose you to chemicals including benzene, carbon monoxide, and lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Page 2: General Safety Rules
POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM General Safety Rules Read this Safety & Operating Instructions manual before using your PowerKing Chipper Shredder. Become familiar with the operation and service recommendations to ensure the best performance from your machine. If you have any questions or need assistance, don’t hesitate to give us a call at 1-800-344-3371 or send us an E-mail at support@qvtools.com. -
Page 3: Protecting Yourself And Those Around You
POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Protecting Yourself and Those Around You This is a high-powered machine, with moving parts operating with a high amount of energy. You must operate the machine safely. Unsafe operation can create a number of hazards for you as well as anyone else in the vicinity. Always take the following precautions when using this machine: •... - Page 4 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Safety with Gas Powered Engines Gasoline is a highly flammable liquid. Gasoline also gives off flammable vapor that can be easily ignited and cause a fire or explosion. Never overlook the hazards of gasoline. Always follow these precautions: •...
- Page 5 No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate the chipper in a safe manner. Mechanical Specifications PK0915 (5”) PK0903 (4”) Model Engine 14HP CH440 9.5HP CH395 Kohler...
-
Page 6: Maintenance
SUPPORT@QVTOOLS.COM Chipper Operation All branches should not exceed 5in (PK0915)/ 4in (PK0903) diameter. Fresh cut branches and straw are recommended for best performance. Due to different hardness and moisture content, the engine may struggle but will continue to chip. Proper insertion of branches is large diameter to smaller diameter. - Page 7 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Before performing any maintenance procedure or inspection, stop the motor, unplug the power cord and wait 5 minutes to allow all parts to cool. Disconnect the spark plug wire to prevent accidental startup. Important Setup Notes Our unit does NOT have a GEAR REDUCTION SYSTEM as noted in the Kohler manual. This engine does not need OIL for a GEAR REDUCTION SYSTEM.
- Page 8 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM The blades can be removed by using the included T-bar wrench or a 17mm Socket with extension and ratchet driver. Make sure to use 2x4 or any soft material in the drum to prevent it from moving. If the drum moves, you may strip the bolts. Also, use rags or paper towel in the entry to prevent bolts or blades from falling into the drum.
-
Page 9: Troubleshooting
POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Troubleshooting SYMPTOM POSSIBLE CAUSE The engine won’t start. Is the ignition switch in the “ON” position? Is the fuel shut-off valve on? Are you using fresh, clean gas? If the gas is old, change it. Use (Please refer to the a fuel stabilizer if you keep gas longer than 30 days. - Page 10 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Assembly Number Part Drum Wheel Axle Support Tow Bar Tow Bar Locking Safety Housing Stand Joint Knob Installation Procedure: Lay the Drum Housing (1) on a small platform. Make sure it has space on the sides for installation of the wheels (2) and support leg (4). Attach wheels (2) to axle stand (3) and use the proper nuts to secure.
- Page 11 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Number Part Entry Chute Exit Chute Adjustable Set Knob diverter 10. Attach the hinge of the entry chute (9) to the hinge on the drum housing (1). Use wing nuts or hex nuts to secure. 11. Attach the hinge of the exit chute (10) to the hinge on the drum housing (1). Use wing nuts or hex nuts to secure.
-
Page 12: Parts Diagram
POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Parts Diagram... - Page 13 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM part No. description part No. description engine safety switch left tyre switch box right tyre bolt Lower part of exit feed chute chute Upper part of exit lock nut chute exit chute diverter protect sheet knob protect sheet plate washer small pulley bolt...
-
Page 14: Warranty Policy
Kohler engines are covered with a 3-year commercial and 3-year residential warranty for Command Pro series. Parts and Labor are covered as well. Power King engines by Lifan are covered with a 1-year residential warranty. Visit your engine manufacturer for warranty details or visit www.QVTools.com. - Page 15 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Defective Products We encourage you to test your product within 15 days of receipt so we can quickly remedy any mechanical problems. If you think your product is defective, call QVTools at 1-800- 344-3371. In most cases, it's a simple issue that can be resolved over the phone. We have expert technicians standing by to help resolve your issue.
