Summary of Contents for BLUCHER Connected Roof
- Page 1 REV. 03 / APRIL 2021 USER MANUAL & INSTALLATION GUIDE BLÜCHER Connected Roof ® INTELLIGENT BALCONY ROOF & PARKING...
-
Page 2: Table Of Contents
8.2 Modbus Termination ......................21 Gateway software update ......................21 Service and maintenance ......................22 Troubleshooting .......................... 23 Disclaimer ..........................24 Appendix – Configuration file parameters ................25 Appendix – Modbus tables ......................26 BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®... -
Page 3: Introduction
All documents related to this product can be found at www.blucher.com. BLÜCHER Connected Roof allows you to easily supervise the performance of your roof. ® The system is designed to detect a possible blocked drainage system before any major issues occur. -
Page 4: Scope Of Delivery
Please note that alterations, or improper repairs to the product are not permitted. If alterations or improper repairs are carried out, the CE-mark and the manufacturer’s warranty will become invalid. BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®... -
Page 5: Technical Specification
3. SD card 4. Input for power supply 5. Relay output 6. Internal power supply 7. Modbus 8. Jumper switch MONITOR 9. Mounting bracket 10. Level sensor 11. Monitor ID REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®... -

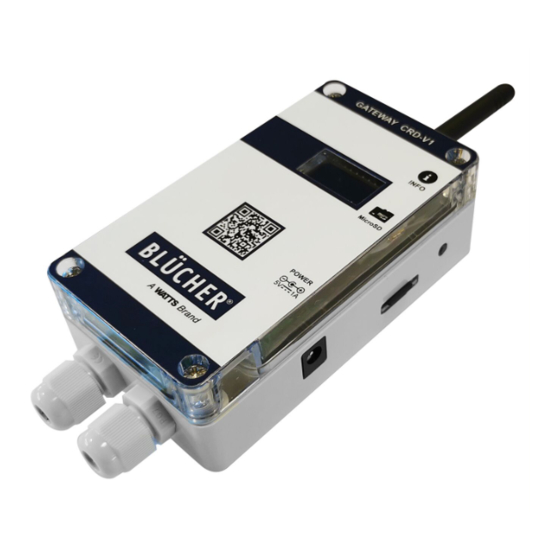

Page 6: Gateway Specifications
Size 120 x 65 x 40mm (without antenna and cable glands) Mounting hole Ø4 mm Environmental Working temperature -10°C - 55°C Storage temperature -30°C - 80°C Humidity Below 80% non-condensing BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®... -
Page 7: Monitor Specifications
Do not install the BLÜCHER Connected Roof Gateway in areas with a risk of water exposure and high humidity levels. ® The ambient temperature should be in the range between -10 °C and 55 °C and the humidity below 80% non-condensing. - Page 8 Item number #900.900.000 The external has a magnetic socket and can be mounted directly on metal. If preferred it can also be glued. BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®...
- Page 9 B, GND. If connection to a Modbus RTU terminals. BMS system is required, a suitable RS485 cable must be used and connected to A, B, GND. REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®...
-
Page 10: Monitor
We recommend that one Monitor is installed next to each drain on your roof. Monitors should be installed at the primary drainage system and not at emergency outlets and drains. This gives the system the best conditions to evaluate the performance of the drainage system. BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®... - Page 11 If the drain has a leaf guard, the 40-60 mm distance is from the edge of the leaf guard to the bracket. 40 mm - 60 mm REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®...
-
Page 12: Commissioning
SD card will only contain the configuration file. This file is used to setup the system with communication between a Gateway and Monitors. NB: Before removing the SD card, either power off or press the Info button for 5 seconds to enter “Remove SD card” mode. BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®... -
Page 13: Configuration File
Roof alarm setting (Optinal) To parameterized the sensitivity of Roof alarms. BMS Settings (Optional) If Modbus RTU is used, all connection settings and Monitor TAG’s are parametrized here. Monitor ID REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®... -
Page 14: Functions
When the first Monitor has been detected the display will jump to operation and show the Data view. By pressing the info button, the next Monitor’s data will be shown. BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®... -
Page 15: Menu Content
7.1.2 Menu content REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®... -
Page 16: Display Information
The info button is used for performing several actions. See table below. Next menu Short push Clear alarm (Alarm list on display) Hold for 2 seconds Remove SD card Hold for 5 seconds Reboot Gateway Hold for 9 seconds BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®... -
Page 17: Relay
Appending on the application, 1 or 2 set points can be selected, see below. Hysteresis = 1C° Setpoint 1= 4 C° Hysteresis = 1C° Setpoint 1= 4 C° Setpoint 2 =2 C° REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®... -
Page 18: Measurement Values
Remedy: Clean drain inlet from debris or pipe blockage Blocked sensor Appears when a Monitor detects lower water level than expected. Remedy: Excessive debris has settled around the sensor preventing it from measuring. Remove debris from sensor area. BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®... - Page 19 WATER_LEVEL_OFFSET_ID_15=0 WATER_LEVEL_OFFSET_ID_16=0 If a monitor is installed lower than the drain If a monitor is installed higher than the drain Offset water levels -X levels Offset water levels +X levels REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®...
-
Page 20: Systems Diagnostics
Power Loss: If a gateway loses power (power outlet or product reset), it will lose memory and will await a new frame from a monitor. Furthermore, it will also reset any previous alarms and the algorithm to determine alarms in the system. BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®... -
Page 21: Modbus Interface
3. With the SD card reinstalled in the Gateway, the Gateway will reboot, and the new software will automatically be installed - the .bin file will automatically be removed from the SD card after a successful update. REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®... -
Page 22: Service And Maintenance
We recommend regular service and maintenance around the area of a drain with a Monitor. Dirt and other obstructions can affect the performance of your drainage system and the BLÜCHER Connected Roof system. BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®... -
Page 23: Troubleshooting
Incorrect setup of the config file chosen. Check typing errors. The relay does not enable/ Incorrect setup of the config file Check setpoint value in config file disable as expected. REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®... -
Page 24: Disclaimer
Connected Roof Product. Therefore, BLÜCHER shall not be held in justice for any indirect property damage (included but not limited to roof or building that the BLÜCHER’s Connected Roof Product monitors) or any indirect personal injury. -
Page 25: Appendix - Configuration File Parameters
1STOPBIT, 2STOPBITS [Factory setting: 1STOPBIT] BMS_GATEWAY_TAG String up to 32 ASCII [Factory setting: characters WATTSELEC-3 ] BMS_MONITOR1_TAG - BMS_MONITOR16_TAG String up to 32 ASCII [Factory setting: Monitor1 characters - Monitor16] REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®... -
Page 26: Appendix - Modbus Tables
0 - “parameters combined by monitor index number” group, 1 - “parameters combined by type” group nXXnn -> monitor index number nnnXX -> parameter index number for a monitor 2 version numbers are represented by “A.B” format - each letter is a single byte BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®... - Page 27 12901 … … communication lost alarm bool 12916 blocked sensor alarm bool 12916 blocked drain alarm bool 12916 battery low alarm bool 12916 internal leak alarm bool 12916 … … REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®...
- Page 28 … … communication signal level uint16, decimal place = 2 0 ... 100.00 % 13801 … … communication signal level uint16, decimal place = 2 0 ... 100.00 % 13816 BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®...
- Page 29 0 - “parameters combined by monitor index number” group, 1 - “parameters combined by type” group nXXnn -> monitor index number nnnXX -> parameter index number for a monitor 2 version numbers are represented by “A.B” format - each letter is a single byte REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®...
- Page 30 1 modbus address structure: Xnnnn -> nXXnn -> nnnXX -> parameter index number for the gateway 2 version numbers are represented by “A.B” format - each letter is a single byte BLÜCHER CONNECTED ROOF - REV. 02 - MARCH 2021 ®...
- Page 31 REV. 02 - MARCH 2021 - BLÜCHER CONNECTED ROOF ®...
- Page 32 BLÜCHER offers you a complete roof drainage system. GRAVITY GREEN BLUE SIPHONIC INTELLIGENT BALCONY ROOF ROOF ROOF ROOF ROOF & PARKING BLÜCHER EuroPipe ® stainless steel drainage pipework system T: +45 99 92 08 00 • blucher.com © 2020 blucher.com...
