Shenzhen SCOTLE Technology
-----------------------------------------------------------------------
Email:sales08@diy-buy.net Tel:8675589378931 Alice
http://www.scotle.com/
------------------------------------------------------------------------------------------------
Scotle IR360 pro
V3 Manual
Scotle

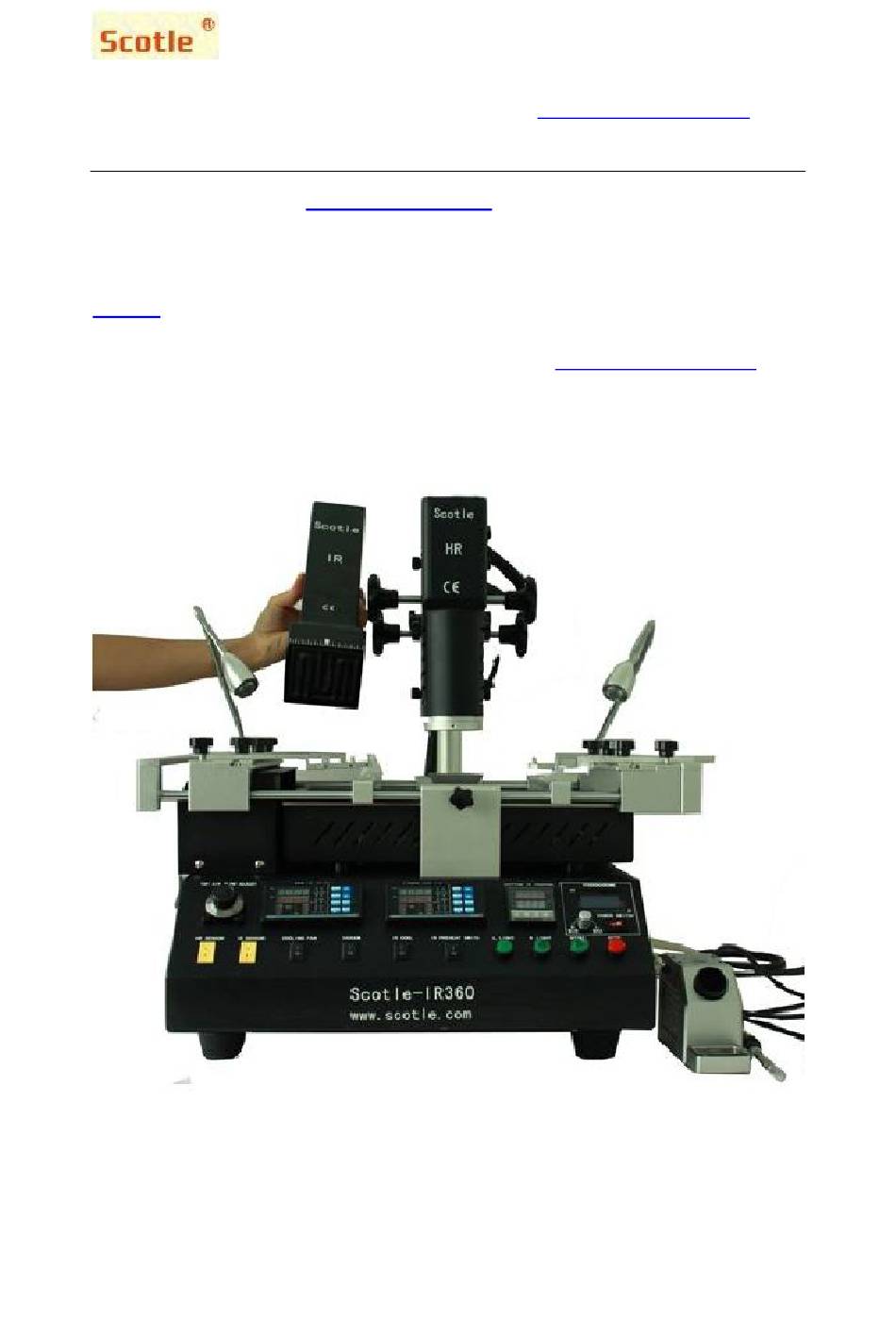

IR360 PRO V3 Brief Introduction
Scotle IR360 PRO V3 is a 3 in 1 multi-functional
BGA Rework Station
with hot air head, infrared head and an 80w soldering iron .
Scotle IR360 PRO V3 specifications：

Advertisement

loading
Need help?

Need help?

Do you have a question about the IR360 pro V3 and is the answer not in the manual?

Questions and answers

Related Manuals for SCOTLE IR360 pro V3

Summary of Contents for SCOTLE IR360 pro V3

  • Page 1 Scotle IR360 pro V3 Manual Scotle IR360 PRO V3 Brief Introduction Scotle IR360 PRO V3 is a 3 in 1 multi-functional BGA Rework Station with hot air head, infrared head and an 80w soldering iron . Scotle IR360 PRO V3 specifications：...
  • Page 2 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------...
  • Page 3 ------------------------------------------------------------------------------------------------ Scotle IR360 Pro Main Features: Scotle IR360 PRO V3 functions and outstanding features as below: 1.It is with three independent temperature zones, top temperature zone can use dark infrared or hot air heater for your preference, the lower is hot air heater and bottom is large infrared pre-heater.
  • Page 4 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ 2.It is with infrared ceramic preheating system which can bake damp PCB board and chips independently and its preheating area can be adjusted according to PCB. 3.High-power cross-flow cooling system to accelerate the preheating zone cooling, to ensure the success rate of continuous de-soldering.
  • Page 5 ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ 9. Scotle IR360 PRO is with two thermocouple outlet one for hot air and one for infrared. With higher efficiency for both. Installation of Scotle IR360 Pro V3 1.Installation Place Scotle IR360 on a stable and smooth rework bench which can avoid bottom deformation and large noise.
  • Page 6 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ Scotle IR360 pro V3 Photos SCOTLE IR360 PRO V3 Front View...
  • Page 7 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ SCOTLE IR360 PRO V3 vertical view...
  • Page 8 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ SCOTLE IR360 PRO side review...
  • Page 9 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ SCOTLE IR360 PRO V3 is with built-in an high quality soldering iron station, it can be used independently with independent controller and with LCD display.
  • Page 10 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ The hot air head and infrared heat is easy to be exchanged only by unscrewing the four screws here.
  • Page 11 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------...
  • Page 12 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ Top Heater head can move flexible forward &backward, up &down, right &left Top IR Heater...
  • Page 13 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ Lower Hot Air Heater(Can be moved up &down)& Infrared Pre-heater...
  • Page 14 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ Fix the PCB The thermocouple is easy to be placed...
  • Page 15 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ BGA chip already pick away successfully. Control Panel Introduction...
  • Page 16 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ Warning: Do not touch the infrared independent preheating switch in the normal reworking process Hot air rework thermocouple outlet(When you use hot air head, you need to use this outlet for...
  • Page 17 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ IR-Preheating button(UP Press: the machine enter into preheating status, only bottom IR controller work, and now the damp main board can be baked. Down Press: the machine enter into normal working status, all the...
  • Page 18 Stop：After Press stop button for 2sec,the heating stopped Scotle IR360 pro V3 ’s main power switch is on the right side, up close to “ON”, the machine is turned on, and the temperature controller will be start after 2s,then you can start your working.
  • Page 19 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ The size of preheating area(the last left and right long ceramic plates) can be controlled by the two buttons on the right side of the machine as below:...
  • Page 20 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ Temperature Controller Commonly Used Button: PTN:Temperature profile selection, each Temperature Control instrument can stored 0-9, total 10 group temperature curves. Press PTN, the PTN LCD window show the number of the current temperature profile and the station begin to run the selected profile.
  • Page 21 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ SV box is the second external K-type thermocouple wire (yellow) temperature(this machine does not have this function). In actual use，you only need to place the thermocouple wire sensor in the bottom of BGA chip then you can observe the BGA chip’s actual temperature.
  • Page 22 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ 5.Curve pause key(press it, the machine pause) 6.Set Switch. Press it to enter next step. 7.Actual temperature display window 8.Profile groups display window 9. Setting temperature display window 10.Profile selection button. Press it, you can choose 0-9, you can choose any.
  • Page 23 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ zone ℃ temperatur e ramp up Time Bottom temperatur slope ℃/S Bottom heating zone ℃ Bottom temperatur e ramp up Time S Preheating Target Set 160℃ area...
  • Page 24 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ Suggest:160 ℃（summer） 170℃（winter） Room temperature Preheating area has great effect on profile,need flexible adjustment 1.Press PTN, the PTN window display 0,means select ing“0” profile 2.Press SET button to set the first parameters of “0” group profile.”r1,” is the first segment heating slope of “0”profile.
  • Page 25 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ 3. After complete above setting, press PAR. to enter next parameter setting of “0” profile. ”L1” is the target temperature of first segment of “0” profile . We set for 60℃,and then continue to press PAR.
  • Page 26 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ to the target temperature165℃.In below picture, 60’ unit is second, It means after get to 165℃, this temperature keeps unchanged and lasts 60 seconds. 5.Press PAR to enter into second segment setting of “0”profile,r2 is 3.
  • Page 27 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ 7.Press PAR to set D2, the value is 40. After the temperature get to 165℃, it keeps no change and last 40 seconds. 8. Press PAR to set third segment of “0” profile, and r3 is 3.
  • Page 28 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ 9.Press PAR to set L3,it is 195℃ 10. After reach to target temperature 195℃.It will last40 seconds.
  • Page 29 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ 11. Press PAR to set fourth segment of “0” profile，slope r4 is 3.00. 12. Target temperature of fourth segment L4 is 215℃.
  • Page 30 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ 13. Press PAR to set D4 of fourth segment, it is 40 which means it will last 40 seconds after get to 215℃. 14.Press PAR to set fifth segment “0” profile e, the slope r5 is 3.
  • Page 31 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ 15. Set target temperature of fifth segment L5 to 225. 16. After reach to target temperature 225℃, it will last 40 seconds.
  • Page 32 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ 17. After the fifth segment finished, Press PAR to r6, then press ▼ until End comes out .It means after running above 5 segments, “0” temperature profile finished.
  • Page 33 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ If you want to set more segments of one temperature profile or more profiles, please do above steps. 18.Below parameters Hb is set for 320, please do not modify. Lower hot air heater temperature profile setting is the same as the top IR heater .
  • Page 34 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ 1.PV:Actual temperature display 2. SV : Setting temperature display: 3.“SET”:for setting temperature 4. Temperature +/- key Temperature Setting Methods: press“SET”for 1 second then loosen ,PV display SO，SV digit flashes，press ▲▼key to correct the parameters and...
  • Page 35 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ Other Cautions： 1.This BGA rework station is IR and hot air rework system, if there is breeze flow >2M/S, it will affect the efficiency of soldering. So please make sure to use it in room without obvious wind flow.
  • Page 36 775 and 478,the air nozzle should toward to 775 tentacle and 478 jack part, and other parts do not cover the nozzle, this will achieve Scotle IR360 PRO V3 BGA Rework Station Temperature profile: All of the following curves，heating slope r=3.00 Applicable room temperature 18～20℃，you can adjust according to the environment...
  • Page 37 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ area ℃ temperature area Time Bottom temperature area slope ℃/S Bottom heating area ℃ Bottom temperature area Time Preheating Set Point 160℃ Area Preheating Suggest:150（summer） 180（winter） indoor temperature...
  • Page 38 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ area has a great effect on curve impact on curve, need flexible adjustment Applicable Lead Free temperature curve（common material, such as Materials INTEL north/south bridge chips） Stage temperature area slope ℃/S Top heating area ℃...
  • Page 39 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ slope ℃/S Top heating area ℃ temperature area Time Preheating Set point:180℃ area Preheating Suggest:180（summer） 200（winter） indoor temperature area has a great effect on curve impact on curve, need flexible adjustment Simplify Curve Diagram：...
  • Page 40 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ Area Bottom Heating Area Time Preheating Suggest:180（summer） 200（winter） indoor temperature Area has a great effect on curve impact on curve, need flexible adjustment Applicable Lead Free Curve（lead free 775 connector CPU socket）...
  • Page 41 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ Area has a great effect on curve impact on curve, need flexible adjustment Applicable Leaded Curve（leaded 775 connector CPU socket 478CPU Materials socket） Stage Heating Area Bottom Heating Area Time Preheating Suggest:160（summer）...
  • Page 42 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ chips） Stage Heating Area Bottom Heating Area Time Preheating Suggest:180（summer） 200（winter） indoor temperature Area has a great effect on curve impact on curve, need flexible adjustment ATI\NV chips, PCB are all thinner, when heating, you can set low top heating, and high bottom heating.
  • Page 43 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ Heating Area Bottom Heating Area Time Preheating Suggest:180（summer） 200（winter） indoor temperature Area has a great effect on curve impact on curve, need flexible adjustment Seventh．BGA Welding Frequently Asked Question 1、BGA How to debug, and find suitable curve?
  • Page 44 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ appropriate adjustment, according to the actual situation and the curve. Debug methods: use desktop northbridge or laptop northbridge(you can use waste board, but requires PCB smooth, no deformation and no deterioration).Advice: don’t use laptop graphics or smaller chip to debugging.
  • Page 45 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ adjust up/down the hot air, each increase 10℃. If the gap is larger, the actual temperature is 195℃, then the bottom temperature increase 30℃， top increase 20℃,the top temperature should not increase too much, to avoid the thermal shock on chip is too high.
  • Page 46 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ heat within the same unit, and the higher temperature of the chip, all of the hot air machine are the same. While welding small size chips, use small air nozzle, can turn down the wind speed via volume control knob, this will decrease the probability of chip burst.
  • Page 47 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ flattening. 2. Solder Paste Selection Recommend to use environment friendly liquid solder paste, or BGA specialized solder paste. Notice: BGA solder paste has use limitation, high temperature preserve easily lead to solder paste invalidation. Such as 30℃room temperature, direct sunlight, the solder paste will completely...
  • Page 48 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ chip’s interior is humid, with moisture, while welding, the water vapor sharply spillover, cause the chip’s internal copper foil short circuit or disconnection. The same as PCB, seriously humid PCB is easy to cause short circuit and serious deformation in board layers.
  • Page 49 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ What should we attention about the temperature wire’s position? The distribution of copper foil on the PCB is not a regular, on the bottom of the chip, some are signal lines, and some are power lines and ground wires.
  • Page 50 Shenzhen SCOTLE Technology ----------------------------------------------------------------------- Email:sales08@diy-buy.net Tel:8675589378931 Alice http://www.scotle.com/ ------------------------------------------------------------------------------------------------ 2. CD without warranty. If damaged, please contact us to download. Contact Us: ----------------------------------------------------------------------- ADD: Room 101 First Floor, A# Dormitory, Nankeng First Industry Park,Bantian,Longgang District, Shenzhen, China Website: http://www.scotle.com/ Tel: 8675589378931 E-mail: sales08@diy-buy.net...
