Axema Vaka B28 Manual

Door contoller
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

Manual (En)
Updated 2019-05-09

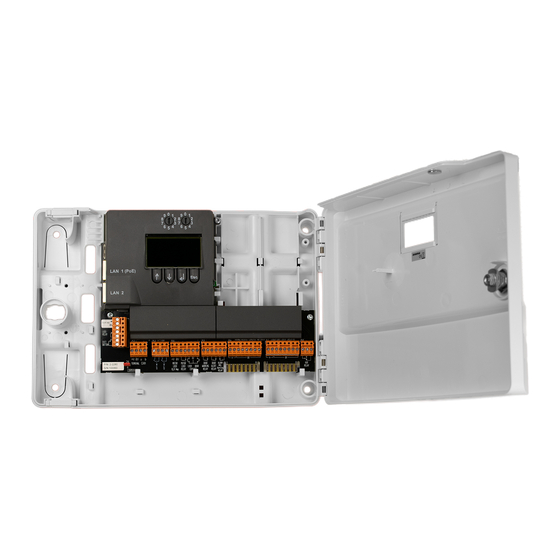

Door contoller VAKA B28
B28 supports one door with up to two modules, day and night locking, entry phone
and readers in a VAKA system.
Axema Access Control AB | Box 90215 | 120 23 Stockholm, Sweden | +46 (0)8-722 34 40 | info@axema.se | www.axema.se

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vaka B28 and is the answer not in the manual?

Questions and answers

Summary of Contents for Axema Vaka B28

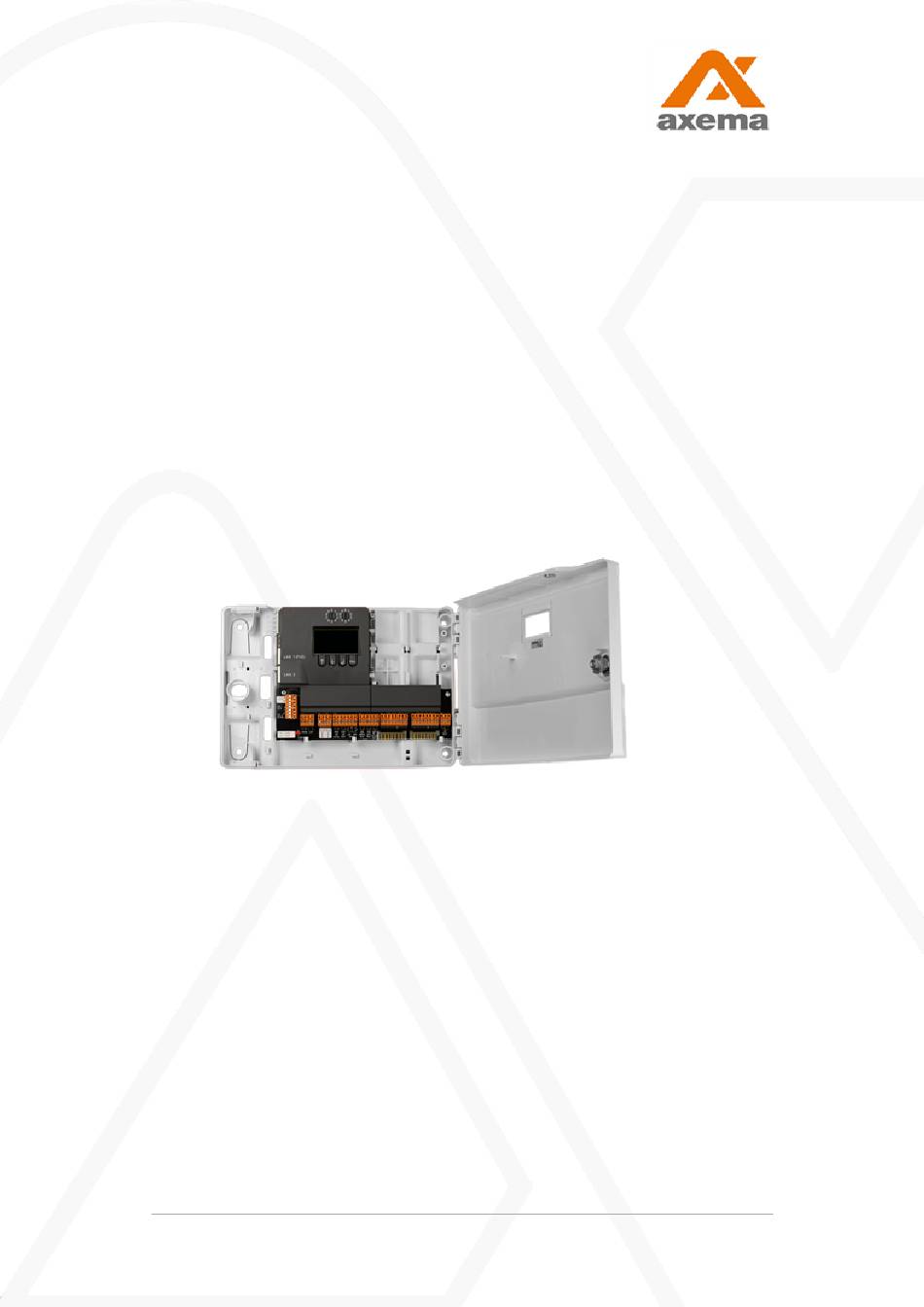

  • Page 1 B28 supports one door with up to two modules, day and night locking, entry phone and readers in a VAKA system. Axema Access Control AB | Box 90215 | 120 23 Stockholm, Sweden | +46 (0)8-722 34 40 | info@axema.se | www.axema.se...
  • Page 2 Door contoller VAKA B28 Mounting CPU module Node addresses VAKA Terminals Termination Technical Data 2 (5) Manual (En) B28...
  • Page 3 Mounting Above the door controller there shall be a minimum space of 40mm. CPU module Door controller with integrated network switch, rotary switches for node address and display with keys for settings and system information. Node addresses Door controllers in VAKA systems without B60 should have unique node addresses from 1 to 10.
  • Page 4 45- 47 AUX-output, potential free normally open (NO) relay. , i.e. lock, door opener, summary alarm, gate control... Function is set in VAKA soft- ware. Termination See the manual for the reader that is used. (http://info.axema.se) 4 (5) Manual (En) B28...
  • Page 5 Technical Data Attributes 12-35VAC/12-40VDC or PoE+ IEEE 802.1 at Power Supply Built-in switch Built-in firewall PoE-support 1 A 30 VDC Maximum load (relay) IP22 IP classification IK06 IK classification 0° to + 55°C Temperature 5 (5) Manual (En) B28...
