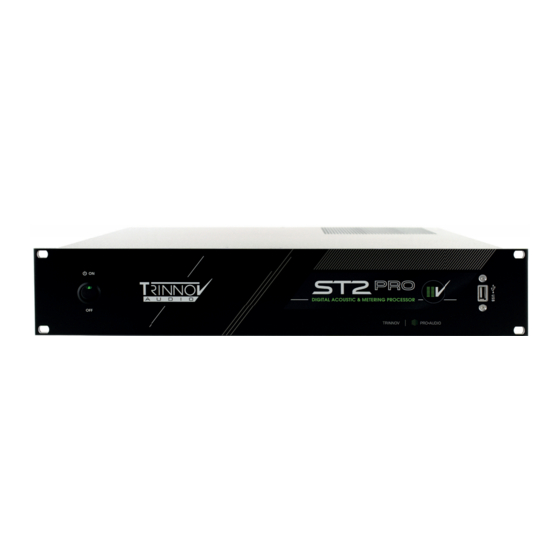

- Page 1 ST2 Pro Quick Start Version: 3.8.40 - December, 2020 www.trinnov.com...
- Page 2 ST2 PRO...
- Page 3 We will make sure to help you through every step of the setup process using your ST2 Pro as a room optimizer. For more detailed information on this product, please refer to the Trinnov Audio ST2 Pro User Manual.
- Page 4 ST2 PRO...
-
Page 5: Table Of Contents
Quick start S U M M A RY INSERTING YOUR ST2 PRO IN PRE-EXISTING CONFIGURATION 1.1 You are using a mixing desk or a sound card (DAC) with analog outputs. 1.2 You are using sources with digital outputs. ACCESSING THE INTERFACE 2.1 | Trinnov App (For macOS users) - Page 6 1. Read the following instructions carefully. Save all instructions for future reference. 2. Follow all warnings and instructions. 3. TRINNOV Audio expressly forbids unauthorized modification of this equipment. 4. Using the unit in the following locations can result in a malfunction: •...
-
Page 7: Inserting Your St2 Pro In Pre-Existing Configuration
Pair one Pair two If you are using a monitor controller in your setup, start by plugging it to the ST2 Pro. In this example, we will be using a DB-25 breakout cable from the controller to the Analog inputs 1... -
Page 8: You Are Using Sources With Digital Outputs
Figure 1: Using a monitor controller Then, make sure to plug the speakers to the ST2 Pro. Take the two cables that feed your main Left and Right speakers and plug them into the analog outputs 1 and 2 to the ST2 Pro. - Page 9 Quick start Don’t forget to plug the AC power cord to the ST2 Pro and a network connection into your router to use the Trinnov Mac App and control the ST2 Pro over the network. For more information, you can refer to the Trinnov App section of the Quickstart.
-
Page 10: Accessing The Interface
ST2 PRO 2 | ACCESSING THE INTERFACE The ST2 Pro is now online and connected to the internet. No need to configure your network settings as they are set as Automatic DHCP (by default). In order to connect to the interface, there are a few possibilities. -
Page 11: Using Your Browser
In your web browser address bar, type in “http://<ip>/vnc.html Replace <ip> with the ST2 Pro address. You are connected to the interface. Note: Also, as a Mac user, your ST2 Pro will be automatically listed in the “network”. You can double-click on the device, then, select “share screen”. - Page 12 ST2 PRO Figure 6: The password is the serial number of your device (Six-digit number) available on the rear side sticker...
- Page 13 Quick start Figure 7: The network page of the interface...
-
Page 14: Pre-Calibration
ST2 PRO 3 | PRE-CALIBRATION Here, we will focus on the process needed to get your first measurements. The first thing is to go to the Preset tab of the interface. Figure 8: The Preset page of the interface The most important thing here is to make sure that the Built-in Preset is loaded. - Page 15 Quick start Next, go to the Optimizer settings and hit the Calibration tab at the bottom left of the screen. Figure 9: The calibration page of the interface This is the page where you will take your first measurements. As you can see in the Calibrated column, Is marked in red.
- Page 16 ST2 PRO In order to do so, we need to configure it first. Hit the Configure button. Figure 10: Changing the microphone file The important information displayed here is the Mic name option. Each 3D measurement microphone has its own calibration file. If not present by default, that file must be installed first on your device for the measurements to be accurate.
- Page 17 Then, choose the “Microphone_Files” directory and hit “OK”. Now, any microphone profile that was on the USB stick has been loaded into the ST2 Pro. In order for the machine to take it into account, you will need to reboot the unit first.
-
Page 18: Microphone
ST2 Pro. L AUX INPUT R INPUT OUTPUT DC IN TB REMOTE SLATE CUE AMP OUT REMOTE DIG. INPUTS ANA. INPUTS GPIO 1-8 WORD CLOCK DIG. OUTPUTS ANA. OUTPUTS Figure 12: Plugging the 3D microphone to the ST2 Pro... - Page 19 Quick start Make sure to unplug your controller (if any) on the analog inputs of the ST2 Pro. The microphone is on a microphone stand and ready for usage. A few things to verify before calibrating regarding the measurement microphone position: •...
-
Page 20: Calibration
OFF. To prevent this process from hurting your ears or speakers, take a look at the top of the interface and reduce the volume of the ST2 Pro by pressing the “ ” (minus) button. This is the volume control in dB. - Page 21 Quick start When the “calibration finished” message appears on screen, turn Off the microphone to avoid feedback through your system. Then, press “OK”. Figure 13: Calibration done. Now, you are back at the calibration screen. Figure 14: Calibration done. Awaiting for compute.
- Page 22 • After you compute a new Optimization, all speakers are muted. Before unmuting, make sure your microphone is turned OFF (red LED OFF) • If you are using an external monitor controller, you can go back to unity gain on the ST2 Pro.
-
Page 23: Post-Calibration
Avoid listening to any of your own mixes at first in order to ensure objective, critical listening. While listening, go to the “Runtime” tab on the interface of the ST2 Pro and turn the Optimization filters Off. This way, you can return to an entirely bypassed situation and listen without any Trinnov processing. ... - Page 24 - Updating your ST2 Pro software; - Downloading the latest user manual; - Downloading the compensation file for your 3D microphone. NOTE: The registration must be done from a device located on the same network as the ST2 Pro (same public IP address).
- Page 25 CONTACT: GENERAL INQUIRY +33 (0)1 47 06 61 37 pro@trinnov.com CUSTOMER SERVICE +33 (0)1 84 23 40 34 support@trinnov.com HEADQUARTERS TRINNOV AUDIO INC 5 rue Edmond Michelet 93360 Neuilly-Plaisance 201 West High Street 06424 East Hampton France Connecticut +1 310-572-1070...
- Page 26 ST2 PRO Thank you for being part of the Trinnov Family. Enjoy!
