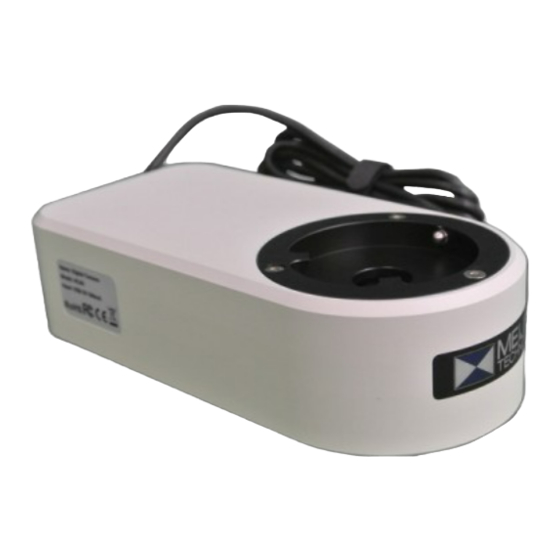

Summary of Contents for Meiji KoPa HD-MTU4K

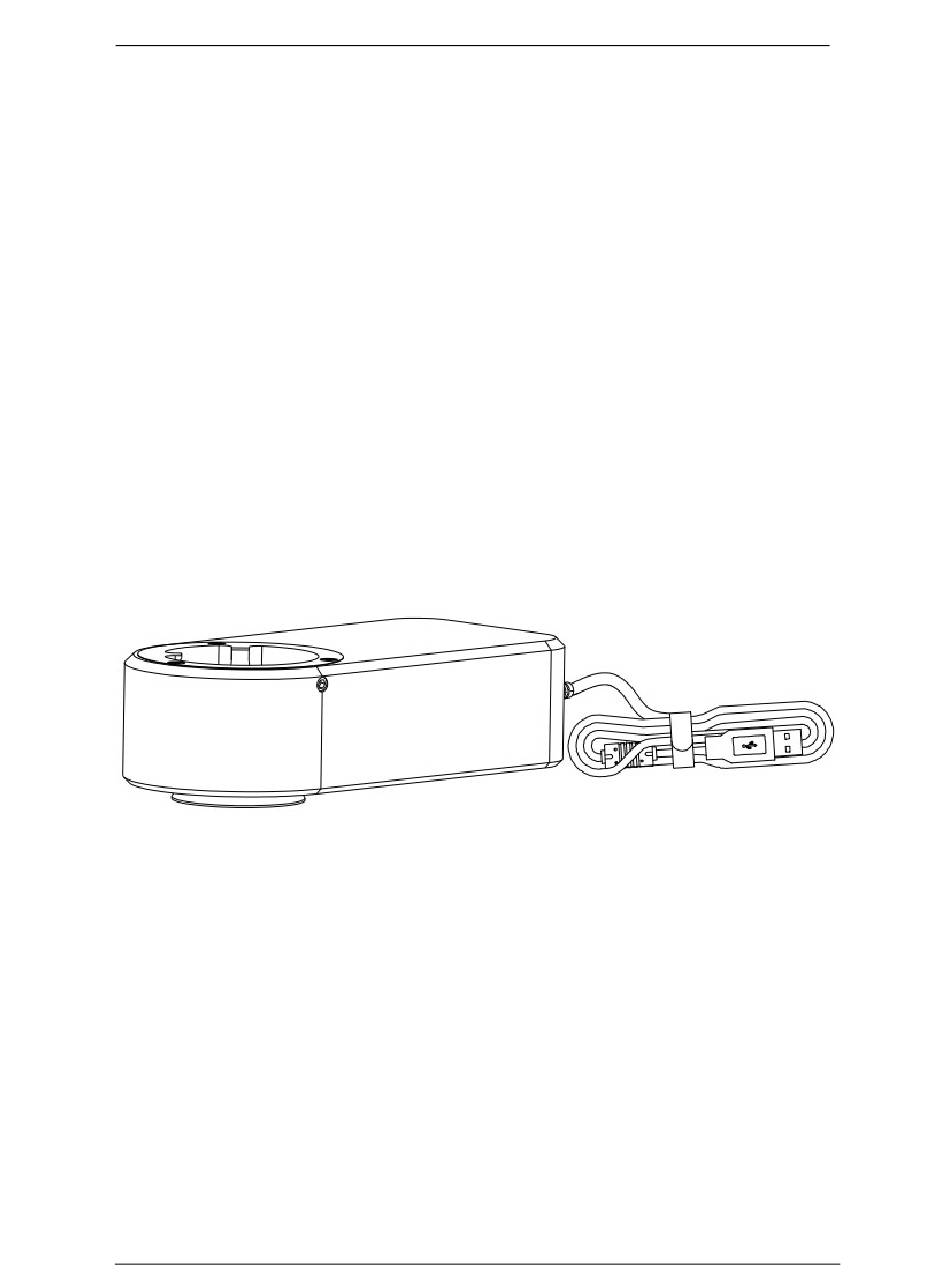

- Page 1 Digital Camera KoPa® HD-MTU4K User’s Manual Meiji Techno America meijitechno.com...
-
Page 2: Table Of Contents
HD-MTU4K User’s Manual Meiji Techno America meijitechno.com Content CHAPTER 1 NOTES AND SAFETY REQUIREMENTS ------------------------------------------------------------------------------------- 1 1.1 Cautions and Notes ------------------------------------------------------------------------------------------------------------------------- 1 -------------------------------------------------------------------------------------------------------------- - CHAPTER 2 SOFTWARE SYSTEM REQUIREMENTS -------------------------------------------------------------------------------------- 2 2.1 System Requirements Under USB Work Mode ------------------------------------------------------------------------------- 2... -
Page 3: Chapter 1 Notes And Safety Requirements
HD-MTU4K User’s Manual Meiji Techno America meijitechno.com Chapter 1 Notes and Safety Requirements 1.1 Cautions and Notes To avoid danger or damage incurred to the lens, do not touch the lens or sensor directly wth your fingers To avoid failure or electric shock hazard and so on, do not disassemble or modify the internal structure of the device. -
Page 4: Chapter 2 Software System Requirements
HD-MTU4K User’s Manual Meiji Techno America meijitechno.com Chapter 2 Software System Requirements 2.1 System Requirements under USB Work Mode ● Windows 7 (64 bits), Windows 8 (64 bits), Windows 8.1 (64 bits), Windows 10 (64 bits) ● Dual core 3 GHz or higher CPU ●... -
Page 5: Chapter 3 Packing List
HD-MTU4K User’s Manual Meiji Techno America meijitechno.com Chapter 3 Packing List 1. Digital Camera 2. Hexagon key 3. Installation disk KS077900G4-Ver1.1 - 3 -... -
Page 6: Chapter 4 Function Introduction Of Each Part
HD-MTU4K User’s Manual Meiji Techno America meijitechno.com Chapter 4 Function Introduction of Each Part 4.1 Name and Function for Each Part of the Digital Camera 1. Female interface: connected with the eyepiece end of biological microscope. 2. Fastening screws: tighten the screws with the hexagon key to fix the eyepiece end of the biological microscope. -
Page 7: Chapter 5 Product Assembly Guide
HD-MTU4K User’s Manual Meiji Techno America meijitechno.com Chapter 5 Product Assembly Guide 5.1 Digital Camera Assembly 5.1.1 Assembly with Biological Microscope 1. Separate eyepiece part from objective part as shown in figure 1 1) Loosen the fixing screw of the microscope. -
Page 8: Chapter 6 Instructions
HD-MTU4K User’s Manual Meiji Techno America meijitechno.com Chapter 6 Instructions 6.1 Install KoPa Capture Software Put the accessory disk into the DVD of the computer, click the file KoPa Capture Install and complete the installation of the application software according to the software prompts. -
Page 9: Chapter 7 Disclaimer
HD-MTU4K User’s Manual Meiji Techno America meijitechno.com Chapter 7 Disclaimer In order to protect the legitimate rights and interests of users, please carefully read the instructions, disclaimers and safety instructions provided with this product before using it. The company reserves the right to update the above documents.
