Summary of Contents for CAR-connect Volkswagen VAS 611023

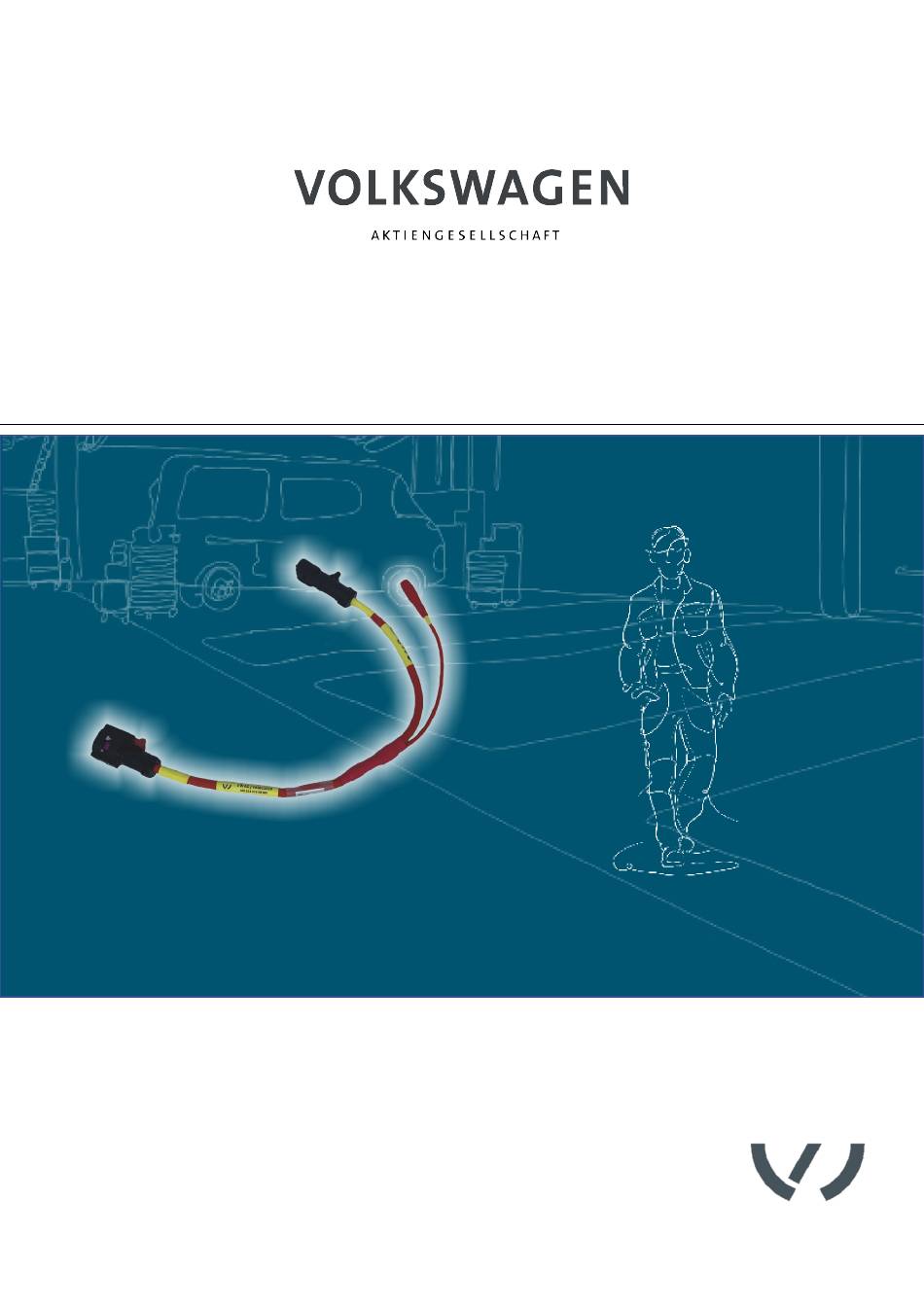

- Page 1 Operating manual M e a s u r e m e n t a d a p t e r c a b l e V A S 6 1 1 0 2 3 32.VW.2210.2598_BA_V00_EN VAS 611023...
-
Page 2: Legal Notice
TRANSLATION OF THE ORIGINAL OPERATING MANUAL All rights reserved. All text, images and graphics are subject to copyright and other intellectual property laws. Copyright 2020 CAR-connect GmbH. Image sources Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. -
Page 3: Table Of Contents
Contents Contents LEGAL NOTICE CONTENTS INTRODUCTION Preliminary information Validity of the declaration of conformity Manufacturer specifications SAFETY Warning levels Important safety instructions Intended use Requirements for the target group PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup... -
Page 4: Introduction
Our portfolio also includes measurement and diagnostic technology for the entire vehicle and battery analysis equipment. With extensive experience in software and hardware development, CAR-connect is your dependable partner at every production stage, from prototyping to series production. -
Page 5: Safety
EN | Safety Safety This safety chapter provides information about the following: • The warning levels contained in this operating manual • Important safety instructions for the product • Intended use of the product • Requirements for the target group This operating manual is only valid for the following product: Item number 22102598... -
Page 6: Important Safety Instructions
EN | Safety Important safety instructions This chapter contains the safety instructions that must be observed when handling the product. DANGER Danger of fatal electric shock! The electrical voltage in other systems is lethal and will cause death by electric shock! •... -
Page 7: Intended Use

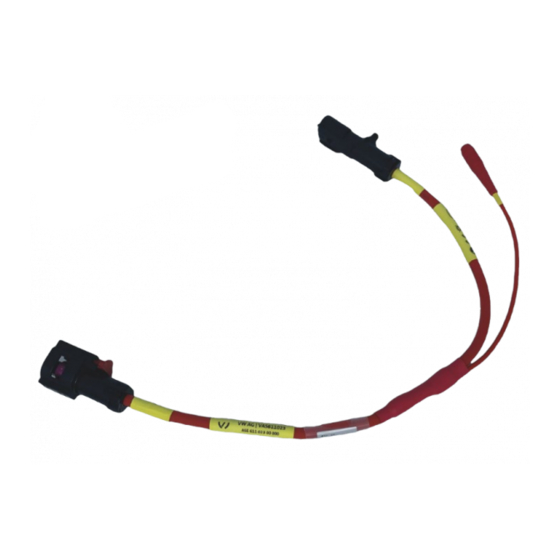

EN | Safety Intended use The measurement adapter cable is used to manually test that the 48 V vehicle electrical system is de-energized and to detect faulty components. The measurement adapter cable contains a branch with a laboratory safety socket for this purpose. For performing measurements with the laboratory safety socket, use suitable measuring equipment as specified by the vehicle manufacturer or other multimeters or insulation resistance testers suitable for the application. -
Page 8: Product Description
EN | Product description Product description Scope of delivery Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. Measurement adapter cable USB stick with operating manual Design Product design: Plug... -
Page 9: Symbols And Connections
EN | Product description Symbols and connections The following symbols are shown on the product: Symbol Meaning Serial number of the product Manufacturer part number Mark of conformity Vehicle manufacturer’s certification mark Wiring diagram 32.VW.2210.2598_BA_V00_EN VAS 611023... -
Page 10: Technical Data
EN | Product description Technical data Rated data Values Manufacturer number 22102598 Maximum rated voltage DC 60 V Maximum rated current 1 mA Protection class II / double insulated Weight ~ 100 g Cable length 500 mm Ambient conditions Operation Storage Transportation Temperature... -
Page 11: Operation
EN | Operation Operation This chapter provides information about the following activities: • Startup • Testing that the circuit is de-energized • Cleaning • Disposal • Maintenance Startup DANGER Danger of fatal electric shock! The electrical voltage in high-voltage systems is lethal and will cause death by electric shock! •... -
Page 12: Testing That The Circuit Is De-Energized
EN | Operation Testing that the circuit is de-energized 1. Test that the entire system is de-energized in accordance with the guided troubleshooting. The test is complete once you have verified that the entire system is de-energized. 2. Detach the connection to the 48 V starter battery. 3. -
Page 13: Cleaning
EN | Operation Cleaning DANGER Danger of fatal electric shock! The electrical voltage in high-voltage systems is lethal and will cause death by electric shock! • Disconnect the product from all power sources before cleaning the product! Observe the safety instructions! Use only a dry cloth to clean the product. -
Page 14: Help
Help Warranty CAR-connect GmbH grants a warranty period of 24 months from the date of purchase. The warranty is valid for demonstrable defects in functional material and workmanship. Further information on the warranty conditions can be found in the terms and conditions on the manufacturer’s website. - Page 15 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Edition 07 / 2020 32.VW.2210.2598_BA_V00_EN VAS 611023...
