Assembly Instructions
(Parts List and Assembly on page 4)

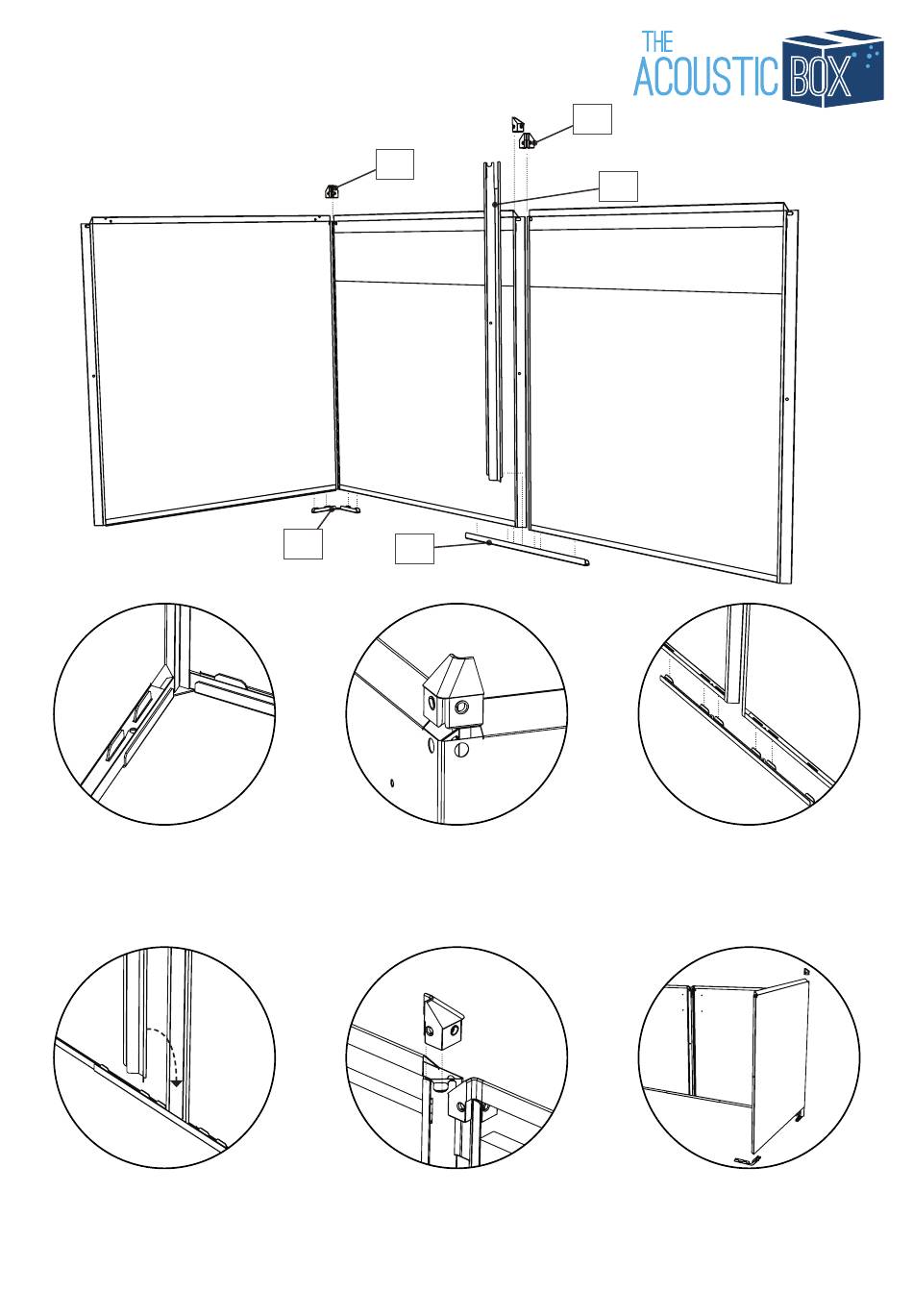

1.
Locate slots on bottom of
Side (002) and Rear (003)
Panels and push down into
Corner Bracket (007).
4.
Insert Filler (103) between
Rear Panels (003) and slide
into Straight Bracket (102).
2
1
3
2.
Insert Plastic Cap (012) into
holes in top of Panels to join
them. Tap into place with a
mallet.
5.
Insert Plastic Caps (012) into
Rear Panels (003) to join
them to Filler (103). Tap into
place with a mallet.
1
5
4
3.
Locate slots on bottom of
Rear Panels (003) and push
down into Straight Bracket
(102).
6.
Repeat steps 1 and 2 for
Side panel (002).
