Summary of Contents for EOS MOTORSCAN 602-D
- Page 1 HEADLIGHT 13602-D*A 21/11/2015 MOD. 602-D OPERATING INSTRUCTIONS...
- Page 3 It will be a useful working tool to satisfy both you and your customers. EOS S.r.l. Motorscan® Division is glad to include you among its Customers; furthermore, thanks to our wide range of products we are confident we will satisfy your current and future needs.
- Page 4 13602-D*A HEADLIGHT Blank Page...
- Page 5 Brand names and mentioned products in the document are registered brands of relevant owners. In no case EOS S.r.l. Motorscan® Division will be held responsible to third parties for specific, collateral, accidental, direct and indirect damages related to or deriving from the product purchase and use.
-
Page 6: Danger Of Injury
13602-D*A HEADLIGHT IMPORTANT INFORMATION ABOUT PERSONAL SAFETY GENERAL SAFETY AND BEHAVIOUR PRESCRIPTIONS FOR ACTIVITY IN WORKSHOPS OR SIMILAR PLACES. DANGER OF SUFFOCATION GASOLINE ENGINES Exhaust gases of gasoline vehicles contain carbon oxide, a colourless and odourless gas that, in case of inhalation, can cause serious physical problems. -
Page 7: Danger Of Burns
13602-D*A HEADLIGHT DANGER OF BURNS Some of the components in engines (exhaust gas manifold, etc.) can become very hot, as can certain sensors. Remember to never touch these parts. SAFETY MEASURES: Wear protective gloves. Never allow the connection wires of test instruments to rest on or near hot parts. Never keep the engine running after the tests. -
Page 8: Dangerous Voltage
13602-D*A HEADLIGHT DANGEROUS VOLTAGE Voltage is always a danger in civil or industrial electricity mains or the electric systems of vehicles. When a person touches test instruments or parts of engines to which electricity has been applied, there is always a risk of electric shock due, for example, to damaged connections. -
Page 9: General Information
13602-D*A HEADLIGHT IMPORTANT INFORMATION ABOUT SAFETY OF THE INSTRUMENT Strictly comply with the following instructions when servicing: Always replace fuses with others of equal value, if presents (see indications on the data plate or in this manual). Do not press excessively the display to avoid damaging the DEVICE. Contact a servicing technician if DEVICE fails to correctly function after compliance with the use instructions. - Page 10 13602-D*A HEADLIGHT SYMBOLS This paragraph describes the symbols used in the DEVICE. ALTERNATE CURRENT PROTECTING GROUND ATTENTION! CONSULT THE INSTRUCTION MANUAL ATTENTION! BURN RISK ATTENTION! RISK OF ELECTROCUTION ATTENTION! NEVER ATTEMPT TO REMOVE THE COVER (operation only to be carried out by qualified technicians) CE CONFORMITY MARK indicates the product compliance with the...
-
Page 11: Description Of The Equipment

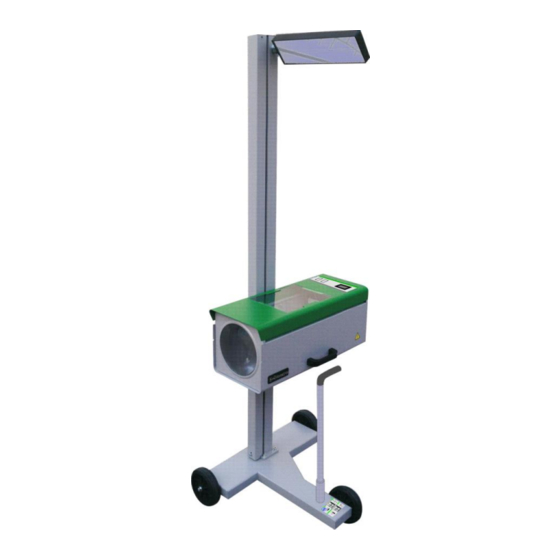

13602-D*A HEADLIGHT 1.0- DESCRIPTION OF THE EQUIPMENT The unit is packed in a specific carton box. More than two packages can not be put on. The weight is30 kg. The overall dimensions: B: 670 mm L: 590 mm H: 760 mm. HOW TO UN-PACK THE UNIT Open the top of the box, slightly incline it and get out the unit from the box. - Page 12 DISABLED: being tested in centering and setting occurred, with the knob parallel to the optical chamber. NOTE: With regard to the device alignment, having detected the effectiveness in the use of the headlight tester was filed patent by EOS Srl ENGLISH...
- Page 13 13602-D*A HEADLIGHT 1.5 - SLIDING DEVICE (E) The optical box is adjustable in height through a sliding system made of precise plastic skates moving on an extruded aluminium column. The centimetre scale is drawn on the column to facilitate the right vertical adjustment of the optical box respect to the vehicle headlight beam.
-
Page 14: Working Surface
13602-D*A HEADLIGHT 2.0 - PREPARATION ATTENTION! TEST THE VEHICLE WITH THE MOTOR ON, SO PROVIDE AN EXHAUST GAS EXTRACTION SYSTEM, BECAUSE CARBONOXIDE MONOSSIDE IS ABSOLUTELY DANGEROUS FOR HUMAN HEALTH. GET IN CONTACT WITH YOUR AREA RESPONSIBLE SO THAT HE CAN SUGGEST YOU THE MOST SUITABLE SOLUTION FOR YOUR WORKING AREA. - Page 15 13602-D*A HEADLIGHT 2.2 - CAR PREPARATION Ascertain the headlights are clean and dry. Set, if there are inside the passenger compartment, all "Position correcting" devices in the position corresponding to the "vehicle with normal load (0)" Eliminate anything could alter the position of the vehicle: ice, snow, mud, ... Straighten the car wheels up.
- Page 16 13602-D*A HEADLIGHT 2.4 - ADJUSTMENT Check the bubble inside the optical box to confirm that it is straight. If the bubble is not straight, loosen the handle (see picture aside) and adjust the optical box till the bubble is exactly in the middle. 2.5 - VISOR ALIGNMENT SYSTEM find two symmetrical points on the forward car body(ex: the beams themselves).
-
Page 17: Headlight Test
13602-D*A HEADLIGHT 3.0 - HEADLIGHT TEST Read on the bottom of the headlight manufacturer inclination specification, ex. 1,2%, turn accordingly the roller positioned on the back of the optical chamber. If no manufacturer specification, comply to the laws in force. ATTENTION! REMEMBER THE HEADLIGH INCLIANTION MUST COMPLY THE LAW IN FORCE, THAT ESTABLISH FOR THE LOW-BEAM HEADLIGHT SET TILL 80CM FROM THE... - Page 18 13602-D*A HEADLIGHT 3.2 - HIGH-BEAM HEADLIGHT TEST Test on the check panel if the headlight projection position is aligned to the silkscreened line. If no adjust headlight inclination. 3.3 - FOG LIGHT TEST Test on the check panel if the headlight projection position is aligned to the silkscreened line. If no adjust headlight inclination.
- Page 19 13602-D*A HEADLIGHT 3.4 - EXAMPLE FOR HEADLIGHT LOW BEAM TEST 3.5 – EXAMPLE FOR HEADLIGHT HIGTH BEAM TEST ENGLISH HEADLIGHT TEST...
- Page 20 EOS S.r.l. Motorscan® Division Via Monte Aquila, 2 Corcagnano 43124 PARMA – Italy Tel. +39 0521 631411 www.motorscan.com...
