ListenPoint Interface with PC Skype
Application Note
Description

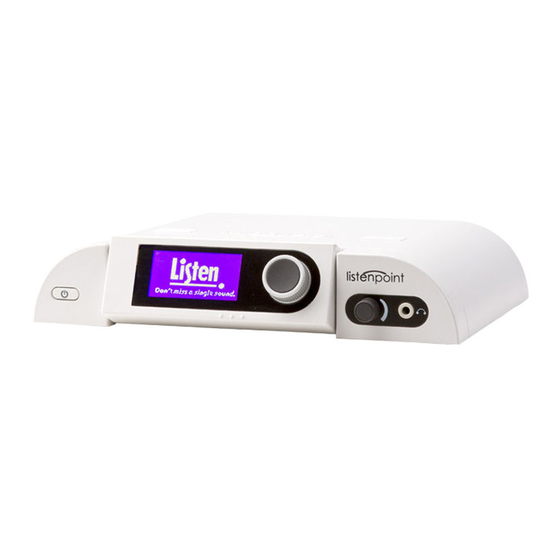

This document describes how to connect a ListenPoint LPT-C6 Control Unit to Skype via PC using the
conferencing cable in the LPT-A107 Audio Cable Kit. The procedures listed here are to be used as a starting
point with minor level adjustments to be made as necessary in both ListenPoint and Skype.

Connecting the Line Inputs/Outputs

1. Conference cable connectors and labels:
2. Connect the input output connection labeled
of the conferencing cable (Euro Connector) to the
Teleconference in/out labeled
Connector) of the ListenPoint Control Unit.
a. Connections shown below:
Listen Technologies Corporation • 14912 Heritagecrest Way • Bluffdale • Utah 84065-4818 U.S.A.
A
(Euro
A
+1.801.233.8992 • 1.800.330.0891
Listen Technologies Corporation All rights reserved 09082010
Don't miss a single sound.
•
801.233.8995
North America
+1.
fax
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ListenPoint LPT-C6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Listen ListenPoint LPT-C6

  • Page 1 Application Note Description This document describes how to connect a ListenPoint LPT-C6 Control Unit to Skype via PC using the conferencing cable in the LPT-A107 Audio Cable Kit. The procedures listed here are to be used as a starting point with minor level adjustments to be made as necessary in both ListenPoint and Skype.
  • Page 2 (Mono 3.5 mm) to the headphone output labeled of the PC (3.5 mm). a. Connections shown below: Listen Technologies Corporation • 14912 Heritagecrest Way • Bluffdale • Utah 84065-4818 U.S.A. +1.801.233.8992 • 1.800.330.0891 • 801.233.8995 North America...
  • Page 3 ListenPoint CU to pass through into the PC. 2. On the headphone output, adjust the output to a nominal level using the volume control. Listen Technologies Corporation • 14912 Heritagecrest Way • Bluffdale • Utah 84065-4818 U.S.A. +1.801.233.8992 • 1.800.330.0891 • 801.233.8995...
  • Page 4 2. Select Tools tab 3. Select Options 4. Select Audio Settings 5. Select your analog audio connections on both Microphone and Speakers Listen Technologies Corporation • 14912 Heritagecrest Way • Bluffdale • Utah 84065-4818 U.S.A. +1.801.233.8992 • 1.800.330.0891 • 801.233.8995 North America...
  • Page 5 4. The Teleconference input is set to 0 dB which is a nominal listening level. Adjust the input if needed to increase or decrease the level coming from the PC. Listen Technologies Corporation • 14912 Heritagecrest Way • Bluffdale • Utah 84065-4818 U.S.A. +1.801.233.8992 • 1.800.330.0891 •...
  • Page 6 Configuring a Skype Test Call 1. Select Tools tab 2. Select Options 3. Select Audio Settings 4. Select Make a free test call Listen Technologies Corporation • 14912 Heritagecrest Way • Bluffdale • Utah 84065-4818 U.S.A. +1.801.233.8992 • 1.800.330.0891 • 801.233.8995 North America...
  • Page 7 For additional assistance with the ListenPoint system, contact Listen Technical Support at +1.800.330.0891. Listen Technologies Corporation • 14912 Heritagecrest Way • Bluffdale • Utah 84065-4818 U.S.A.
