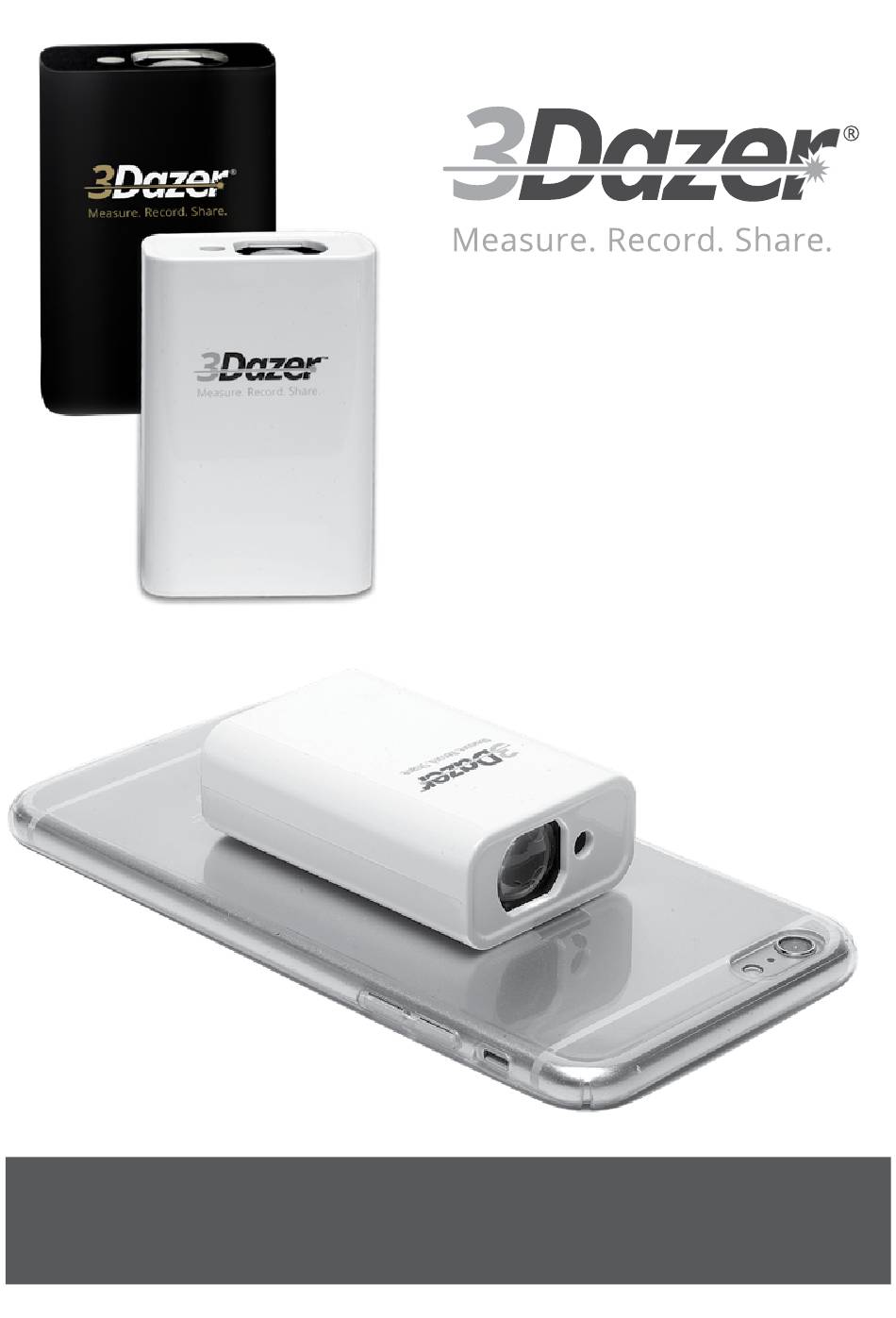

- Page 1 Turn your smartphone into a smart laser measurer The only app-driven device on the market USER’S M A NUA L...
-
Page 2: Safety Regulations
Safety Regulations Please read these safety regulations and operation guide carefully before operating. Please read all of the operation guide and safety regulations in this manual before operation. Improper operation without complying with this user’s manual could cause damage to the device, influence the measurement result or cause bodily injury to the user. -
Page 3: Product Technical Specifications
Product Technical Specifications 3Dazer Pro Product Name 3Dazer Pro Laser Measurer Model DZ-ID1601-P1 Distance Measured Range 4” ~ 260’ / 10cm ~ 80m Distance Measurement Precision ± 1/16” / 1.5mm (+distance x 0.0005) ≧ 2 HZ≤ Data Output Rate Laser Type... - Page 4 Product Technical Specifications 3Dazer Home Production Name 3Dazer Home Laser Measurer Model DZ-ID1601-H2 Distance Measured Range 4”~165’ / 10cm ~ 50m Distance Measurement Precision ± 1/8” ( 3.175 mm ) ≧ 2 HZ≤ Data Output Rate Laser Power < 1 mw...

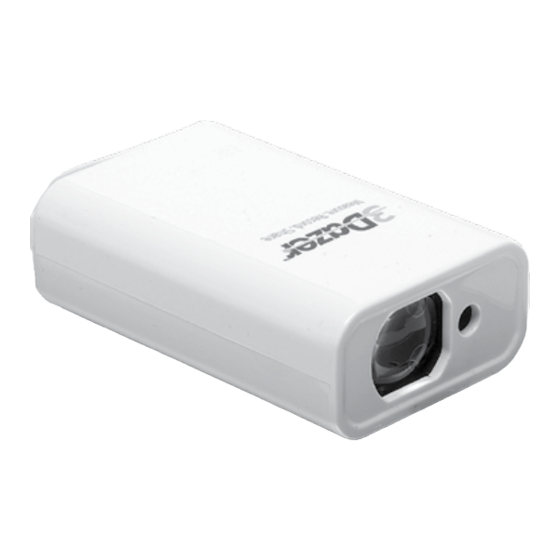

- Page 5 Side 1 Charging indicator Micro-USB port Power Side 2 Magnetic holder Lens Laser port...
- Page 6 Install The Metal Plate Mount 3Dazer provides 2 positions options for attached mode: • Upper edge • Bottom edge Set the position in the app settings and install the metal plate mount included in the package. Follow the instructions below to install the metal mount properly.
- Page 7 Installing Metal Plate Mount In order to use the 3Dazer in attached mode, the metal plate mount must be adhered to the outside of your phone case—2 options to choose from. Upper Edge Installation Kit 1. Using the lines on the...
-
Page 8: How To Measure
How To Measure Your 3Dazer can either be attached to your mobile or work separately depending on your situation Remote Mode Working separately Attached Mode Working together... - Page 9 Steps To Take Measurements 1. Download and install the 3Dazer App from the App Store or Google Play and attach the metal plate mount. 2. Turn on Bluetooth on your phone. Go to phone SETTINGS >...
- Page 10 Award-winning Project Management App Smart laser measurer with powerful app makes an impressive combination Bid jobs quicker Manage jobs easier Collaborate better To find out more how 3Dazer can help you work more efficiently, please visit 3Dazer.com...
-
Page 11: Warranty Information
To receive the “2 Years No Cost” period, the product under PROTECT must be registered at www.3Dazer.com within 30 days of the purchase date. If the product under PROTECT is not registered, a “1 year No Cost” period applies. - Page 12 Laurel At Sunset, Inc 895 Dove Street, Suite 300, Newport Beach, CA 92660 Tel: 310.694.0386 email: support@3Dazer.com www.3Dazer.com...
