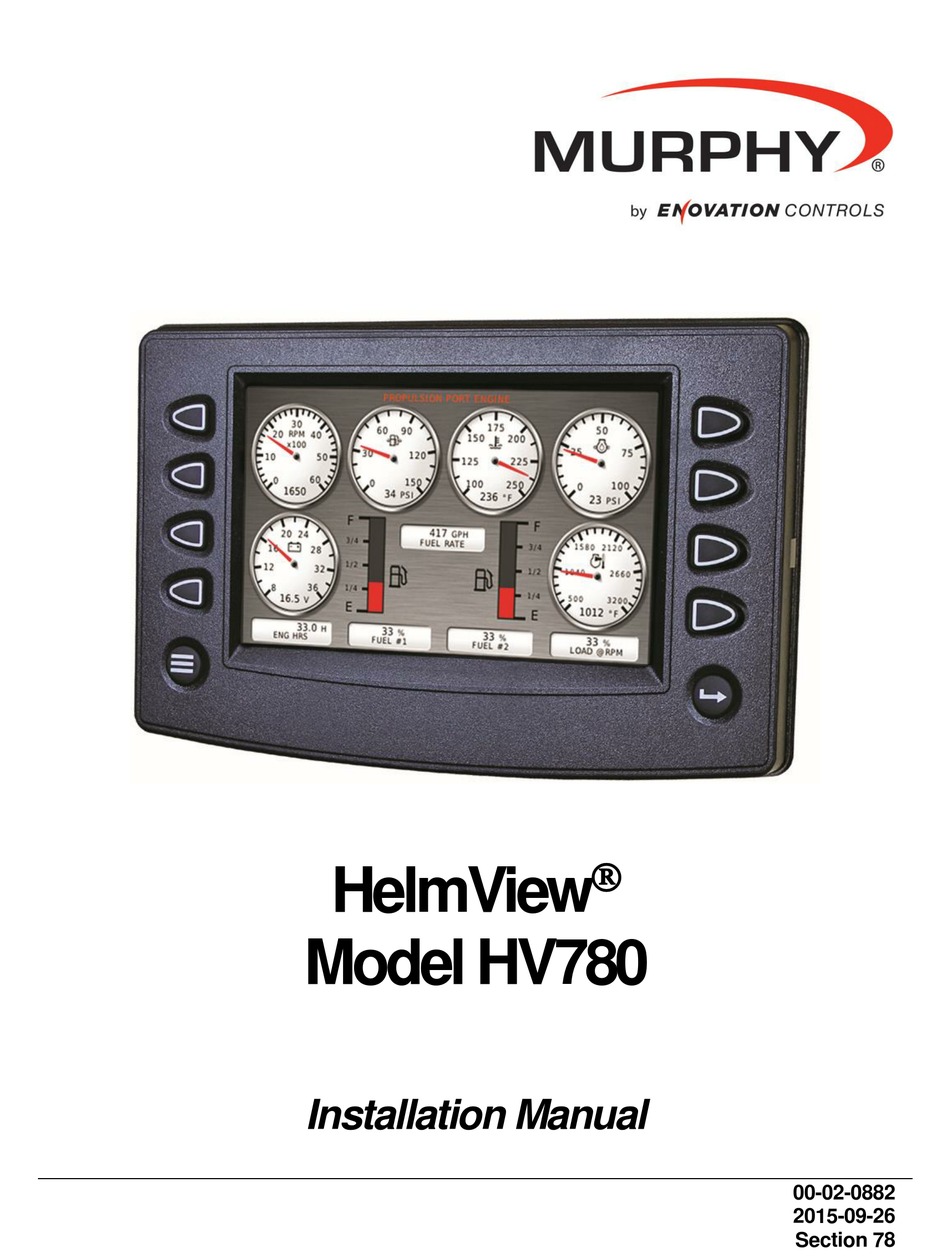

- Page 1 HelmView Model HV780 Installation Manual 00-02-0882 2015-09-26 Section 78...
- Page 2 The latest version of this manual can be found at enovationcontrols.com. BEFORE BEGINNING INSTALLATION OR OPERATION OF THIS MURPHY PRODUCT: Read and follow all installation/operation instructions. Please contact Enovation Controls immediately if you have any questions.
-
Page 3: Table Of Contents
Table of Contents Hardware Installation ......................... 1 Inspecting Package Contents ..................1 Dash-Mounted Installation....................1 Wiring Information ........................3 Pinout Specifications ....................3 Wiring Schematic ......................4 Specifications ..........................6... - Page 4 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 5: Hardware Installation
Hardware Installation The following instructions will guide you through installing the HelmView HV780 display. Inspecting Package Contents Before attempting to install the product, it is recommended that you ensure all parts are accounted for and inspect each item for damage (which sometimes occurs during shipping). The items included in the box are: HV780 unit Installation kit –... - Page 6 Mounting the Unit 1. Place the back side of the display through the opening in the dash. 2. Use the four screws to line up the unit with the drilled holes. 3. Push the unit through the opening and screws through the drilled holes until the back of the case is flush.
-
Page 7: Wiring Information
Wiring Information Pinout Specifications Signal Definitions CAN: 3 ports according to CAN specification 2: 1 port isolated according to NMEA 2000 USB 2.0 host Video input (optional): NTSC/PAL Inputs (3) 0-5 VDC analog inputs, (1) input configurable to support measurement frequencies from 2 Hz - 10kHz values from 0-100% duty cycle Output: Digital, capable of sinking 500mA. -
Page 8: Wiring Schematic
Wiring Schematic – Black Connector WARNING: Failure to install the unit per the specified wiring diagrams may cause damage to the unit. DO NOT connect power to the video ground. Warranty is void for damage caused by incorrect wiring. Section 78 00-02-0882 2019-09-26 - 4 -... - Page 9 Wiring Schematic – Gray Connector WARNING: Failure to install the unit per the specified wiring diagrams may cause damage to the unit. DO NOT connect power to the video ground. Warranty is void for damage caused by incorrect wiring. Section 78 00-02-0882 2019-09-26 - 5 -...
-
Page 10: Specifications
Specifications Electrical 7” / 178mm color transmissive TFT LCD Display Resolution WVGA, 800 x 480 pixels, 16-bit color Aspect Ratio 16:9 Orientation Landscape Backlighting LED, 1000 nit maximum brightness Contrast 400:1 Refresh Rate 60 Hz Freescale™ i.MX357, 32bit, 532 MHz, ARM 11 core Microprocessor Operating System QNX®... - Page 11 Environmental Operating Temperature -40º C to +85º C Storage Temperature -40º C to +85º C Protection IP66 and 67, front and back Emissions IEC 60945, 95/54/EC Immunity SAE J1113 Vibration Random vibration, 7.86 Grms (5-2000Hz), 3 axis Shock ± 50G in 3 axes Mechanical 9.75 x 6.23 in.
- Page 12 Section 78 00-02-0882 2019-09-26 - 8 -...
- Page 13 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 15 THIS PAGE INTENTIONALLY LEFT BLANK...
