Summary of Contents for Bevent Rasch RCKD

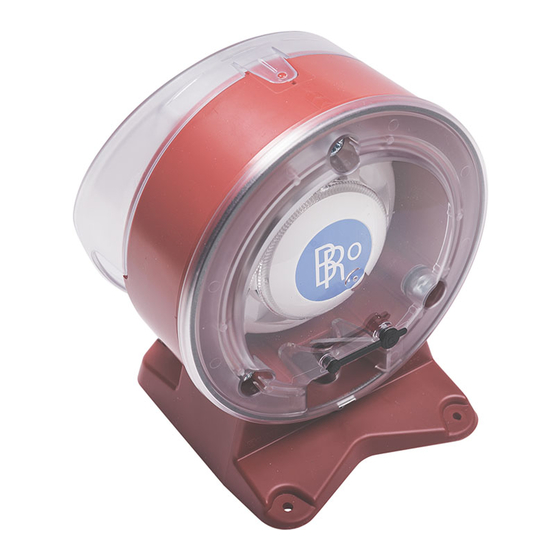

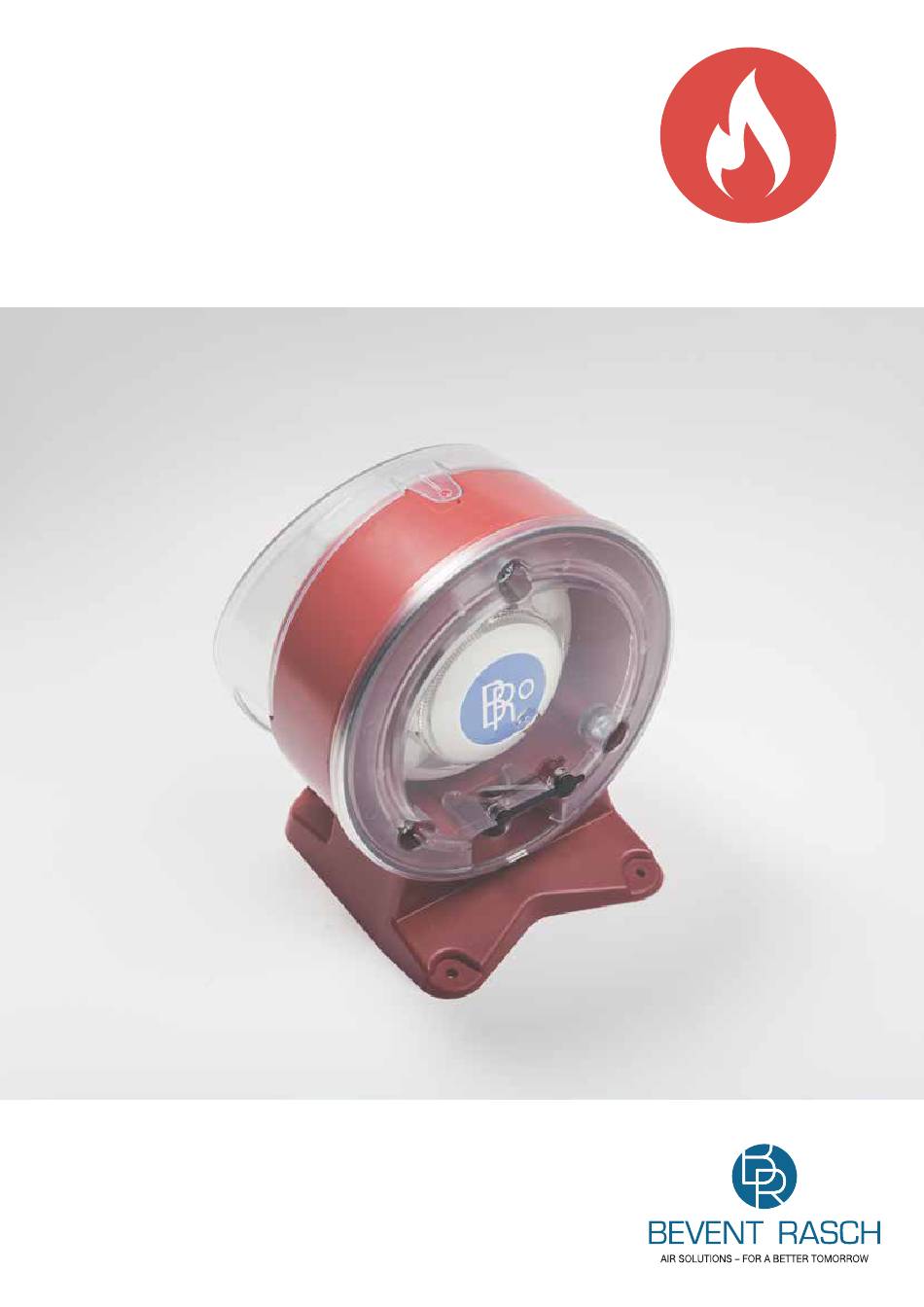

- Page 1 RCKD Duct detector FIRE SAFETY 13/09/2017 www.bevent-rasch.com...
- Page 2 Detector, white PVC with metal netting. Adapter housing Duct detector RCKD is delivered with a 0,6 m venturi pipe with lid for single tube detector, made of clear ABS. that can easily be shortened. When the duct is wider than Aluminum venturi tube.
- Page 3 24V AC from ventilation unit Note. Light box RBLD, if installed, is connected as follows: – RCKD = between base terminals 3 and 4 Tel +46 (0)33 - 23 67 80 Tel +46 (0)8 - 54 55 12 70 BORÅS...
- Page 4 Brand-/Brandgasspjäll BSKC6 EI60 Fire damper BSKC6 EI60 Dimensions and weight Ød max 55 Ød +105 max 200 Size Ød – – – – – Weight, incl, actuator, kg 10,6 13,0 17,0 Actuator - damper sizes Wiring Actuator Actuator BLF-T is supplied to damper sizes Ø100-315 mm. diagram Actuator BF-T is supplied to damper sizes Ø400-630 mm.
- Page 5 EI60 Brand-/Brandgasspjäll BSKC6 EI60 Fire damper BSKC6 Size chart Size 250 315 Sound power level , dB 70 dB 65 dB 60 dB 55 dB 50 dB 45 dB 30 40 50 1000 2000 3000 10.000 Air flow, l/s Sound data Correction of sound power level, L , in octave band Correction, K...
- Page 6 Brand-/Brandgasspjäll BSKC6 EI60 Fire damper BSKC6 EI60 Installation instruction Supporting construction (wall or floor) in fire resistance class EI60. Damper’s fire resistance class: EI60 (ve ho i <-> o) S. EC certificate 0402-CPD-SC0900-13 Option 1 Option 2 Seal with fire Seal acc.
- Page 7 EI60 Fire damper BSKC6 Installation instruction Installation in horizontal duct. Damper’s fire resistance class: EI60 (ve i <–> o) S. EC certificate 0402-CPD-SC0900-13 Max. 1000 mm Seal acc. to Insulation equivalent to Support of duct, section 2 fire resistance class of the see section 5 supporting construction Duct...
