Summary of Contents for Tuttnauer WTL198-0057

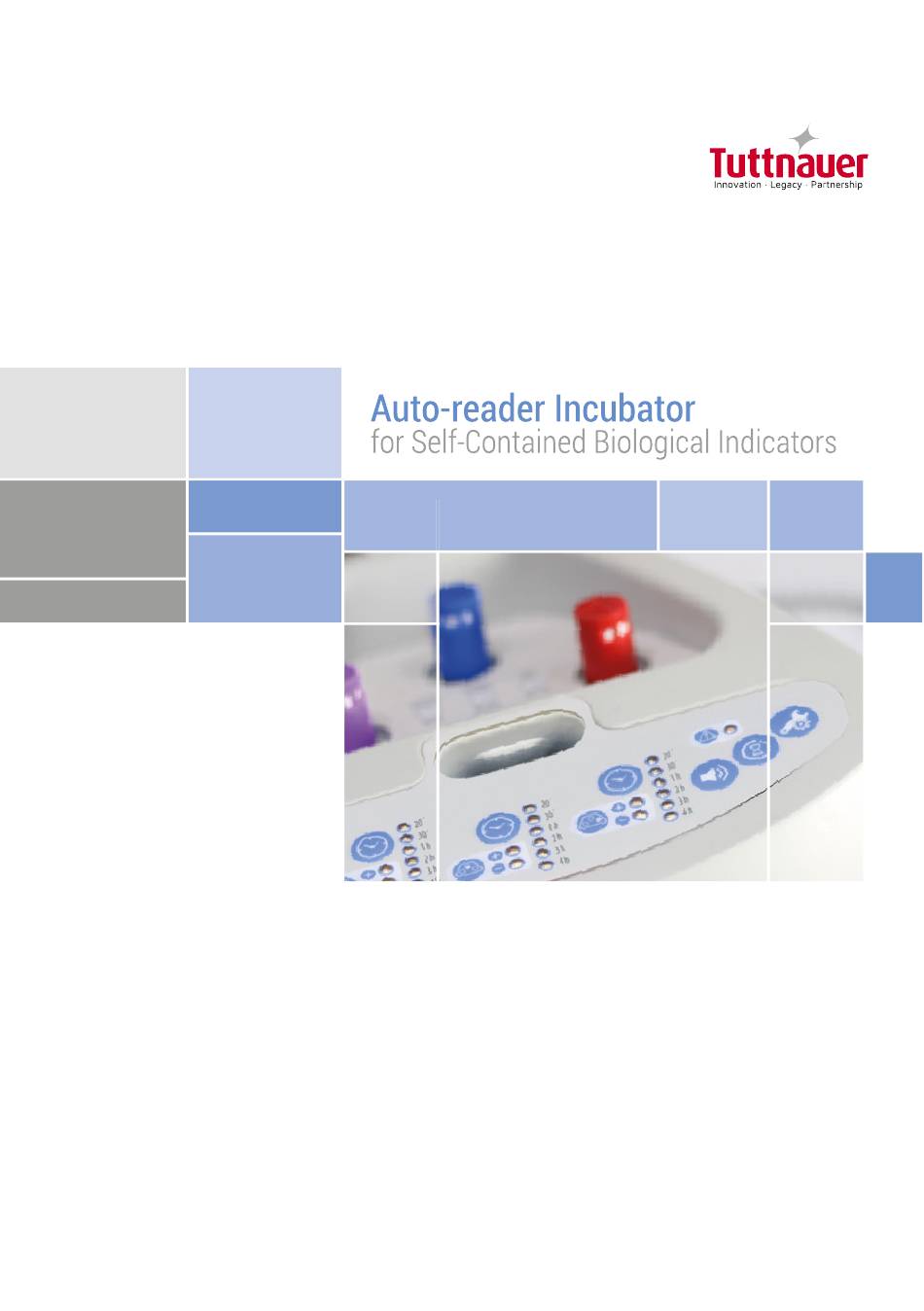

- Page 1 Rev.0 | October 2019 Warning: this product contains dry natural rubber...
-
Page 3: Table Of Contents
Index Index ............................3 Composition ..........................5 Use description ..................................5 References ....................................6 Safety information ........................6 Symbols ....................................6 Power supply specifications .............................7 Environment operating conditions ..........................7 Serial/Batch Number ................................7 Record Table ...................................8 Instructions for use ........................8 Start-up ....................................8 Remaining incubation time .............................10 Positive Control ..................................10 Interpretation of results ..............................10 Disposal....................................10... -
Page 5: Composition

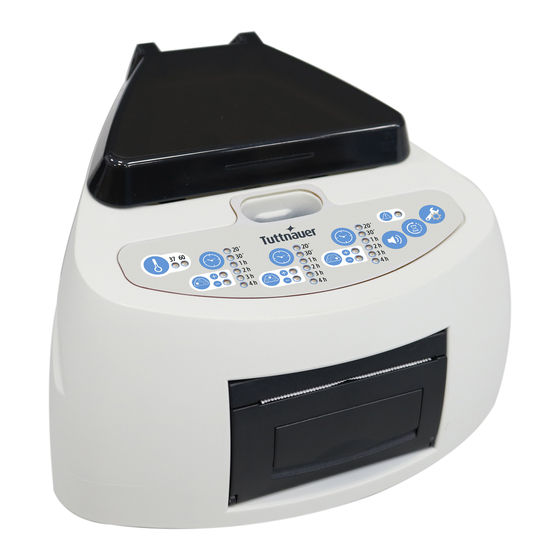

Composition Use description The Auto-reader incubator has been designed for the incubation and automatic readout of Self-Contained Biological Indicators (SCBIs). The auto-reader allows easy and rapid detection Six incubation programs are available: 4 hours at 37 ºC, of positive and negative Biological Indicators (BIs). 3 hours at 60 ºC, 2 hours at 60 ºC, 1 hour at 60 ºC, 30 Microorganisms contained within the Biological minutes at 60 ºC and 20 minutes at 60 °C. -
Page 6: References
Safety information Symbols References 80 % Protective Cover. Operating/storage relative humidity. 30 % Incubation Area. 30 ºC Operating/storage environmental temperature. 10 ºC Control Panel. Ampoule Crusher. Caution, warning. Cavity for paper. Important, attention. Thermal Printer. Direct current. Temperature Selector. Waste Electrical and Electronic Equipment. Programs Selectors for Incubation / Time Left Batch number. -
Page 7: Power Supply Specifications
Safety information STEAM with 3hs. at 60 ºC program Power supply specifications STEAM with 1 h. at 60 ºC program STEAM with 30 min. at 60 ºC program STEAM with 20 min at 60 ºC program. Operating Units Input VH2O2 with 2 hs. at 60 °C program conditions parameters VH2O2 with 30 min at 60 ºC program. -
Page 8: Record Table
Instructions for use Record Table Start-up Use the following table to record firmware updates. 1-Place the auto-reader on a firm surface, free from vibrations, away from sunlight, currents of hot or cold air, NOTE: manufacture firmware is printed on a label found chemicals and corrosive or flammable substances. - Page 9 Instructions for use Check that the time setting is appropriate for the BIs to be 7- Place the rapid BI in a reading position, close the incubated in each position. protective cover and wait for the result. Reading will To change the time program, press the button of the start automatically.
-
Page 10: Remaining Incubation Time
Instructions for use Interpretation of results Remaining incubation time The auto-reader allows verifying the remaining incubation Rapid Readout time in every reading position by ticket printing. Whenever a reading process is in course, press and hold the button The indicator used as positive control should show a for 3 seconds, a ticket will then be printed informing positive result (red light ). -
Page 11: Cancellation Of A Reading
Instructions for use 2. Place the new paper roll Cancellation of a reading with the outer side up. When a BI is removed from its position during incubation process, an audible alarm will sound to indicate that the tube should be returned to the corresponding position. If the indicator is not re-introduced into the reading position after 10 seconds of being withdrawn, the reading will be cancelled and the cancelation will be informed... -
Page 12: Setup Mode
Instructions for use firmware version available for the auto-reader; downloads Modification of printing language it and installs it in a few seconds without the loss of any device data. This functionality allows changing the language in which the incubator printer renders the tickets. Update procedure To make this change, the device must be started in Setup mode (see Setup Mode), then press the button... -
Page 13: Troubleshooting Chart
Troubleshooting chart Fault Possible cause Action The incubator does not start. Power source is not connected. Check that the power source is connected power supply according to its characteristics and that the plug is connected to the incubator. The incubator gives an error in A BI is placed in the position at the Check that every position is empty at one position during “Autotest”.
Need help?
Do you have a question about the WTL198-0057 and is the answer not in the manual?
Questions and answers
When the unit is turned on it has flashing blue lights. It will not exhibit the ready lights nor will it do a testing cycle
If the Tuttnauer WTL198-0057 unit has flashing blue lights and does not show ready lights or perform a testing cycle, it likely indicates that a Biological Indicator (BI) was placed in a position at the moment of starting the incubator. This causes an error during the "Autotest," disabling that position. To resolve this, ensure all positions are empty when starting the incubator and then restart the unit.
This answer is automatically generated
Reordering printer supplies for my reader. Could you please share the correct items numbers. Thank you
