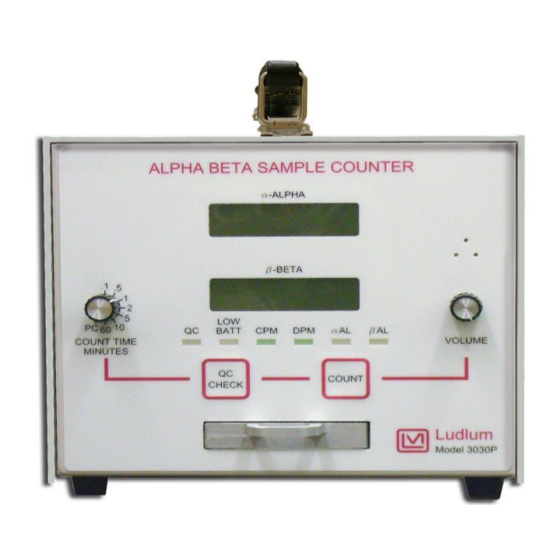

- Page 1 LUDLUM MODEL 3030P ALPHA-BETA SAMPLE COUNTER February 2021 Serial Number 251450 and Succeeding Serial Numbers Software Version 1.6.4 and Succeeding Versions...
- Page 3 LUDLUM MODEL 3030P ALPHA-BETA SAMPLE COUNTER February 2021 Serial Number 251450 and Succeeding Serial Numbers Software Version 1.6.4 and Succeeding Versions LUDLUM MEASUREMENTS, INC. 501 OAK STREET, P.O. BOX 810 SWEETWATER, TEXAS 79556 (800) 622-0828 (USA & CANADA) 325-235-5494 FAX: 325-235-4672...
- Page 4 RETURN OF GOODS TO MANUFACTURER If equipment needs to be returned to Ludlum Measurements, Inc. for repair or calibration, please send to the address below. All shipments should include documentation containing return shipping address, customer name, telephone number, description of service requested, and all other necessary information.
-
Page 6: Table Of Contents
Table of Contents 1. INTRODUCTION ......................1 2. GETTING STARTED ....................3 Unpacking and Repacking ............................. 3 Software Installation .............................. 3 Start-up .................................. 10 3. SPECIFICATIONS ....................12 4. DESCRIPTION OF CONTROLS AND FUNCTIONS ..........15 Front Panel ................................15 Back Panel ................................ - Page 7 Steps for performing a QC Check ........................36 Changing Thresholds ............................37 MDA Calculations ............................... 38 Data Logging ................................ 39 Spectral Information ............................40 USB Communication ............................41 COMMANDS ............................... 42 Bn – Background Subtract Status ........................42 Cn - Count ..............................42 Dn –...
- Page 8 SOFTWARE LICENSE ............................50 8. RECYCLING ......................52 9. PARTS LIST ......................53 Model 3030P Alpha-Beta Sample Counter ....................... 53 Main Board, Drawing 337 × 245 ....................... 53 Preamp Board, Drawing 337 × 335 ....................... 55 Display Board, Drawing 337 × 89 ......................... 57 Wiring Diagram, Drawing 337 ×...
-
Page 9: Introduction
5.1 cm (2 in.) diameter and up to 0.64 cm (0.25 in.) depth. The Model 3030P is powered by a universal input wall-mount power supply, or may be powered from four “D” cell batteries. The instrument features a built-in detector power supply, adjustable count time periods, and click-per- event audio with adjustable volume. - Page 10 Avoid touching the tray while counting, and place the instrument on a stable surface. Caution! The Model 3030P is sensitive to excessive shock, which can cause permanent damage to the detector. This can happen if the instrument is dropped or if it's not protected during shipping.
-
Page 11: Getting Started
(batteries, cable, etc.) and ensure that all of the items listed on the packing list are in the carton. Check individual item serial numbers and ensure calibration certificates match. The Model 3030P serial number is located centered on the bottom of the back panel. - Page 12 Technical Manual Section 2 Note: Uninstall any previous version of the Model 3030P interface software prior to installing this version. Insert the software media into the computer (it may be a CD or a USB thumb drive). The software will automatically install. If desired, double-click “setup.exe”...
- Page 13 Model 3030P Technical Manual Section 2 Agree to the license terms: Select Next: Note the install directory and select Next: Ludlum Measurements, Inc. Page 5 February 2021...
- Page 14 Model 3030P Technical Manual Section 2 Take note of the directory to which the executable file is saved. After completion of the installation, the program may be accessed through the directory in which it was saved and/or the program start menu/shortcut.
- Page 15 Model 3030P Technical Manual Section 2 Select Next: The software will complete installation. After the installation is complete, the FTFI CDM Drivers will be installed and the following install dialog will appear: Ludlum Measurements, Inc. Page 7 February 2021...
- Page 16 Model 3030P Technical Manual Section 2 Select Extract: Select Next: Ludlum Measurements, Inc. Page 8 February 2021...
- Page 17 Model 3030P Technical Manual Section 2 Accept the license agreement and select Next: Select Finish. Ludlum Measurements, Inc. Page 9 February 2021...
-
Page 18: Start-Up
Model 3030P Technical Manual Section 2 Select Finish to complete the software setup. Start-up Before using the instrument for the very first time, determine whether or not a computer interface is desired. If the computer interface is desired, please return to the previous subsection, “Software Installation,” before continuing, and then connect the instrument to the computer using the USB cable provided. - Page 19 Model 3030P Technical Manual Section 2 If using the computer interface, start the interface program from the appropriate directory/shortcut and set the desired operating parameters described in detail in Section 6 of this manual. Also, if desired, perform a QC check. See Section 6 of this manual for further details on QC check.
-
Page 20: Specifications
MEANS DPM mode; α /β means count has exceeded the alarm set point. When the Model 3030P is counting, there will be colons present on the display, as shown in the top right photo. The display also has a “rollover”... - Page 21 Model 3030P Technical Manual Section 3 A 99:99:99 display with decimals between each “9” means that the instrument has exceeded its count/count rate capacity and is currently taking a count (shown below). Warning! It is possible for very high activity samples to have multiple rollovers, and in such cases, the displayed measurement results could be wrong.
- Page 22 Model 3030P Technical Manual Section 3 : reading within 2% of true value Scaler Linearity : type “B” USB port Data Output : solid-state silicon detector Detector : made up of approximately 0.6 um aluminum and 0.6 um Detector Window varnish, approximately 1.2 to 1.5 um total...
-
Page 23: Description Of Controls And Functions
Model 3030P Technical Manual Section 4 Section Description of Controls and Functions Front Panel : resets and starts the counting cycle. This switch will also COUNT Button reset the two counters when depressed. : starts the QC (Quality Control) check cycle. This switch QC CHECK Button will also reset the two counters when depressed. -
Page 24: Back Panel
: When in the position, the Model 3030P is locked into Dipswitch 1 scaler mode only. The default position is : When in the position, the calibration date is enabled. The... -
Page 25: Safety Considerations
Cleaning Instructions and Precautions The Model 3030P Alpha-Beta Sample Counter may be cleaned externally with a damp cloth, using only water as the wetting agent. Do not immerse the instrument in any liquid. Observe the following precautions when cleaning: 1. -
Page 26: Warning Markings And Symbols
If the wrong power converter is used, the instrument and/or power converter could be damaged. The Model 3030P Alpha-Beta Sample Counter is marked with the following symbols: DIRECT CURRENT (DC) (IEC 417, No. 5032) - designates an input receptacle that accommodates a power cord intended for connection to DC voltages. -
Page 27: Electrical Safety Precautions
Model 3030P Technical Manual Section 5 Warning! The operator is strongly cautioned to take the following precautions to avoid contact with internal hazardous live parts that are accessible using a tool: 1. Turn the instrument power and disconnect the power cord. -
Page 28: Calibration And Maintenance
Calibration Procedure Perform mechanical checks, such as switch function and illumination of digital readouts. Connect the Model 3030P to the computer and load the default settings. Ensure that both dipswitches, located on the main board, are in the position. - Page 29 βSourceCα =β source count in α channel BackCα = background count in α channel βNetCβ = Net β source count in β channel For the alpha/beta PIPS™ detector in the 3030P, achievable 4π efficiencies are approximately: 15% for 36% for...
-
Page 30: Maintenance
Recalibration should be accomplished after any maintenance or adjustment has been performed on the instrument. Ludlum Measurements recommends recalibration at intervals no greater than one year. Local regulations may have precedence over this recommendation. - Page 31 Model 3030P Technical Manual Section 6 A PIPS™ detector can be cleaned to remove radioactive contamination in the form of dust/dirt, oil, oil films, fingerprints, or dust particles on the surface. Recoil nuclei contamination can be removed to some extent by cleaning as well, but recoil nuclei can become embedded in the varnish surface and cannot be completely removed by cleaning.
- Page 32 To clean the PIPS™ detector, it must be first removed from the 3030P detector assembly. If the detector only needs inspection and possible cleaning, this may be done without removing the entire shielding/cylindrical mounting assembly from the chassis.
- Page 33 Model 3030P Technical Manual Section 6 The connector assembly is wire-tied to the left bottom front support post of the circuit board (as viewed from the right photo above). Cut this wire tie and unplug the two connectors from the circuit board.
- Page 34 If the detector mounting and O-ring has contamination, an alternative and more extensive process of removing the entire cylindrical detector assembly and shield from the Model 3030P chassis can also be accomplished. Following the same steps above, power down and remove the cover of the Model 3030P and remove the connectors and the lead shield bracket.
- Page 35 Model 3030P Technical Manual Section 6 Note: Do not forget to secure the cover plate and re-install the four screws and lock washers in the cover plate. This will allow the whole detector and shielding assembly to be turned upside-down for inspection and cleaning.
- Page 36 Model 3030P Technical Manual Section 6 The assembly with the shield may be placed upsid- down and the detector cleaned as described previously or as seen in the PIPS cleaning video. Re- assembly of the system entails reversing the above steps with the replacement of the detector back into the housing, as well as the replacement of the foam pucks and securing the assemblies back into place.
-
Page 37: Computer Software
Section 7 Section Computer Software he Model 3030P Control Software allows the user to set all parameters, view QC check settings, change alpha and beta window and threshold values, perform MDA (Minimum Detectable Activity), and retrieve the sample data saved to the logging memory. - Page 38 Model 3030P Technical Manual Section 7 The following parameters require a password: Calibration Date, Date, Time, Background Subtract On/Off, Alpha Background Subtract, Beta Background Subtract, Alpha Efficiency, Beta Efficiency, Crosstalk On/Off, Alpha Crosstalk, and Beta Crosstalk. The password operation can be enabled in the Parameters menu. Selecting the Password Protect menu item will enable password protection.
-
Page 39: Parameters
Model 3030P Technical Manual Section 7 The user is prompted for the password when clicking on the Update button after changing any of the password protected parameters. If the password given is correct, the parameters are changed and the instrument is updated. - Page 40 DPM (disintegrations per minute). By knowing what the efficiency is for alpha and beta particles, the Model 3030P is able to divide measurements by the known efficiency and display in DPM. The DPM mode may be easier for users since many regulations and limits are expressed in terms of DPM.
- Page 41 Model 3030P Technical Manual Section 7 In DPM mode, the counts are adjusted for count time and efficiency. For example: Count Time = 0.1 minutes (6 seconds) Efficiency = 25% Input = 1000 DPM CPM = 250 counts per minute (no background subtract or crosstalk...
-
Page 42: Qc Check
Section 7 QC Check The Ludlum Model 3030P has a QC Check function that allows the user to determine if the instrument is operating within predetermined limits. This function is optional and does not have to be enabled. There is also an option to update the background every 24 hours. - Page 43 Model 3030P Technical Manual Section 7 3. The instrument counts background (no source inside the tray) and receives results that are within the upper and lower limits specified. QC Off/Normal QC/Background Update Only : If enabled, 24 hours after the last QC check the QC LED turns on and a QC check must be run before the normal operation can resume.
-
Page 44: Steps For Performing A Qc Check
Model 3030P Technical Manual Section 7 the background count time in minutes Background QC Count Time (min): used when the Override Count Time function is enabled Alpha/Beta Upper & Lower Limits : These determine what range is acceptable for the background during a QC check. If the background does not fall within these values, the QC check will fail. -
Page 45: Changing Thresholds
Model 3030P Technical Manual Section 7 Changing Thresholds : Pressing this button will read the current instrument threshold and Read window settings for alpha and beta. : Pressing this button will update the instrument with changes to the Update alpha and beta threshold and window, and will update other changes made in other tabs. -
Page 46: Mda Calculations
Model 3030P Technical Manual Section 7 MDA Calculations This screen shows the calculated MDA values for all count times based on the current background and efficiency values. The confidence level may be set at 90%, 95%, or 99%. This screen is only available when the instrument is in DPM mode. -
Page 47: Data Logging
Technical Manual Section 7 Data Logging The Model 3030P can store 600 samples in its data logging memory. The following fields are stored with each sample: time, date, alpha reading, beta reading, count time, count mode, and user-defined comment. Logging Mode : The choices are either Off, Log All, or Log QC only. -
Page 48: Spectral Information
When the count time is chosen, the time switch on the instrument needs to be set to “PC.” If the 3030P is not set to PC control, the spectral data acquisition time is determined by the setting on the 3030P. -
Page 49: Usb Communication
When the process is complete, the user may save the file to a comma- delimited (.csv) file. This file may be plotted to produce a spectra like this: Suggested setup for acquiring a spectrum using the Model 3030P is as follows:... -
Page 50: Commands
Model 3030P Technical Manual Section 7 The commands are not case sensitive. Any command not recognized will return "ERROR-xx" where xx is the first two characters of the unknown command. [LF] = line feed character (ASCII value 10) [CR] = carriage return character (ASCII value 13) COMMANDS Bn –... -
Page 51: Ra - Read Next Sample Number
0 = Turn printing OFF. 1 = Turn printing ON. 2 = Return printing mode (OFF, ON). This command sets quick power-on mode. The Model 3030P may be configured to display certain parameters during power-up. 0 = Show parameters OFF. -
Page 52: Rhn - Read Header
Model 3030P Technical Manual Section 7 1 = Read alpha percent efficiency. 2 = Read beta percent efficiency. RHn – Read Header This command reads the 15-character, user-definable header where “n” is a value from 1 to 6. Returns “xxxxxxxxxxxxxxx.”... -
Page 53: Rr - Read Count
Model 3030P Technical Manual Section 7 14 = Reads last QC date. Returns “MM/DD/YYYY.” 15 = Reads alpha background (cpm). Returns “nnnnnn.” 16 = Reads beta background (cpm). Returns “nnnnnn.” 17 = Reads last QC time. Returns “HH:MM.” 18 = Reads QC Mode. Returns “NOR” or “BKG.”... -
Page 54: Rxn - Read The Crosstalk
Model 3030P Technical Manual Section 7 RXn – Read the Crosstalk This command reads the beta-to-alpha or alpha-to-beta crosstalk. The value must be divided by 10 to get the correct value. Returns “nnn.” 1 = Reads beta-to-alpha crosstalk. 2 = Reads alpha-to-beta crosstalk. -
Page 55: Senxxx - Set Efficiency
Model 3030P Technical Manual Section 7 SEnxxx – Set Efficiency This command sets the alpha or beta efficiency. The efficiency must be multiplied by 10 before sending. 1 = Set alpha efficiency. 2 = Set beta efficiency. SHnxxxxxxxxxxxxxxx – Set Header This command sets a user-defined header. -
Page 56: Sr - Reset All Samples
Model 3030P Technical Manual Section 7 20 = Set alpha source count time (secs), format #####.# 21 = Set beta source count time (secs), format #####.# 22 = Set background count time (secs), format #####.# 23 = Set QC override status, 0 = OFF, 1 = ON SR –... -
Page 57: Sample Printouts
Model 3030P Technical Manual Section 7 Sample Printouts Ludlum Measurements, Inc. Model 3030P MDA Calculation Data ----------------------------------------------------------------------- 02/02/2009 11:05:07 AM Instrument Serial Number: 251450 Alpha Background(cpm): 0.0 Beta Background (cpm): 34.8 Alpha Efficiency %: 38.0 Beta Efficiency %: 20.0 Confidence Level: 95%... -
Page 58: Software License
Model 3030P Technical Manual Section 7 Ludlum Measurements, Inc. Page 50 February 2021... - Page 59 Model 3030P Technical Manual Section 7 Ludlum Measurements, Inc. Page 51 February 2021...
-
Page 60: Recycling
To this end, Ludlum Measurements, Inc. strives to supply the consumer of its goods with information regarding reuse and recycling of the many different types of materials used in its products. With many different agencies –... -
Page 61: Parts List
Model 3030P Technical Manual Section 9 Section Parts List Reference Description Part Number Model 3030P Alpha- UNIT Completely Assembled M3030P Beta Sample Counter Alpha-Beta Sample Counter 48-3509 Model 3030P Main BOARD Completely Assembled Board Drawing Main Board 5337-245 337 × 245 Micro 6.144 MHz... - Page 62 Model 3030P Technical Manual Section 9 Reference Description Part Number C59-C63 47pF, 100V 04-5660 C64-C66 100pF, 100V 04-5661 C67, C68 10µF, 25V 04-5728 1µF, 16V 04-5701 Q1-Q3 2N7002L 05-5931 TRANSISTORS LTC1144 05-5923 U1, U2 SN74AHC1G14 06-6556 INTEGRATED CIRCUITS OPA2349EA 06-6712...
-
Page 63: Preamp Board, Drawing 337 × 335
Model 3030P Technical Manual Section 9 Reference Description Part Number R24-R30 22.1K 1/8W, 1% 12-7843 RESISTORS 2.21K, 1/4W, 1% 12-7835 27.4OHM, 1/4W, 1% 12-7041 1.5K, 1/8W, 1% 12-7878 27.4OHM, 1/4W, 1% 12-7041 1K, 1/8W, 1% 12-7832 475OHM, 1/4W, 1% 12-7851 27.4OHM, 1/4W, 1%... - Page 64 Model 3030P Technical Manual Section 9 Reference Description Part Number 330pF, 100V 04-5657 CAPACITORS 10pF, 100V 04-5673 0.1µF, 100V 04-5792 0.01µF, 500V 04-5747 1µF, 16V 04-5701 C9-C10 0.1µF, 100 04-5792 10 µF, 10V 04-5968 C13- C14 100µF, 16V 04-5794 C15-C16 2.2µF, 50V...
-
Page 65: Display Board, Drawing 337 × 89
Model 3030P Technical Manual Section 9 Reference Description Part Number BOARD Completely Assembled Display Board, Display Board 5337-084 Drawing 337 x 89 47µF, 10V 04-5666 CAPACITORS C2-C5 0.1µF 50V 04-5663 C6, C7 27pF, 100V 04-5658 Q1, Q2 2N7002L 05-5840 TRANSISTORS... - Page 66 Model 3030P Technical Manual Section 9 Reference Description Part Number B1, B2 2 EA. 1.5 VOLT “D” DURACELL BATTERY 21-9313 POT-10K RV6NAYSD103A-PNON-LKG RESISTORS 09-6753 MISCELLANEOUS KNOBS KNOB-PKG-508-1/8 08-6601 FEET BUMPER SELF-LOCKING K717 21-8717 BATT HOLDER BATERY-HOLDER BXS017 22-9400 PIPS™ DETECTOR-CAM 1700ABM...
-
Page 67: Drawings And Diagrams
Drawings and Diagrams Model 3030P Main Board, Drawing 337 × 245 (4 sheets) Model 3030P Main Board Layout, Drawing 337 x 246A (2 sheets) Model 3030P Detector Preamp Board, Drawing 337 X 335 Model 3030P Detector Preamp Board Layout, Drawing 337 x 356A (2 sheets) Model 3030P Display Board, Drawing 337 ×...
