PRAWNTO MLG Series Owner's Manual

Shrimp cutter and deveiner
Hide thumbs Also See for MLG Series:
Table of Contents

Advertisement

Quick Links

SHRIMP CUTTER
AND
DEVEINER
Models MLG SERIES
And MLG-BC
Prawnto Shrimp Machine Of Texas Co., Inc.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLG Series and is the answer not in the manual?

Questions and answers

Related Manuals for PRAWNTO MLG Series

Summary of Contents for PRAWNTO MLG Series

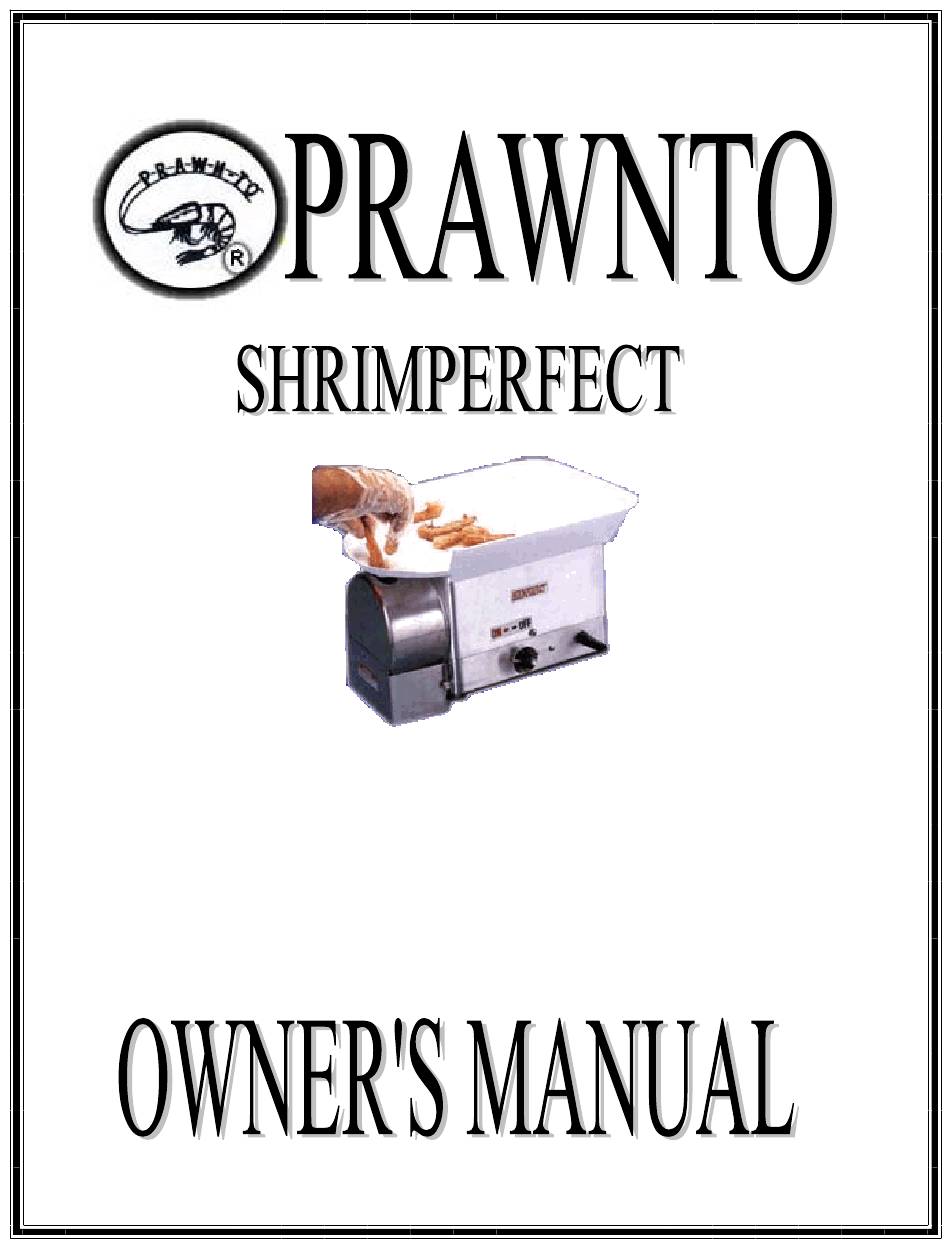

  • Page 1 SHRIMP CUTTER DEVEINER Models MLG SERIES And MLG-BC Prawnto Shrimp Machine Of Texas Co., Inc.

  • Page 2: Warranty

    Prawnto Shrimp Machine Co. of Texas, Inc. with all shipping costs to and from Prawnto™ to be paid by the purchaser. Proof and date of purchase is a prerequisite to the effectiveness of any warranty. There are no warranties, which...

  • Page 3: Table Of Contents

    ............................21 ERIES ALIGNMENT ............................. 23 MLG-BC ..............................23 TROUBLE SHOOTING ..........................28 MLG-S ............................28 ERIES MLG-BC ..............................29 PARTS AND ACCESSORIES ........................30 ..............................31 IAGRAMS ............................... 38 ARTS NOTES ................................ 42 Prawnto Shrimp Machine Of Texas Co., Inc.

  • Page 4: Change Control Page

    CHANGE CONTROL PAGE Last Update Change 07/24/03 New updated version of Owners Manual 5/13/06 MLG-BC machine and components added to manual Prawnto Shrimp Machine Of Texas Co., Inc.

  • Page 5: Prawnto™ Shrimp Machine

    What about cutting different sizes of shrimp? Here is the beauty of the Prawnto... It's self-adjusting for different sizes. With our NEW patented roller system only the depth knob is necessary for different depths of cut.

  • Page 6: Available Products

    NO. With proper, simple maintenance and cleaning, the cutting blade will always cut down the center of the shrimp's back each and every time. AVAILABLE PRODUCTS The Prawnto™ Shrimp Machine is available in three models: Prawnto™ Shrimp Machine MLG-3 Specifications: Dimensions: W-11 ½", L-17 ¼",...
  • Page 7 Hgt.-10 ½" Shipping Weight: 34 Electrical: 115V, 60 C.P.S. ¼ H.P.,, 5 amp Internal Cooling Fan for continuous operation Also 220V, 50 & 60 C.P.S., 2.7 amp Listings: MLG-4 (shown without cover) (fig 1.3) Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 8 Like the MLG Series the MLG-BC is adjustable for various depths of cut and is designed for ease of use, and is easily maintained.

  • Page 9: Accessories

    MLG-BC (Fig 1.4) Accessories The following Prawnto Accessories when used with the Prawnto Shrimp Machine MLG Series and the NEW Prawnto Belly-Cut Shrimp Machine MLG-BC allow for quicker and more efficient shrimp production. Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 10 Designed with built-in funnel for faster operation if Model 900 processing station is not used. Fits any model Prawnto ever sold. MLG-3 With Speed Pan Model 600 (fig 1.5) Processing Table Model 900 Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 11 It is a self- contained processing station that can be used anywhere there is a power plug. No assembly required Prawnto Shrimp Machine Of Texas Co., Inc.

  • Page 12: Additional Products

    The EX Shucker is crafted from high-quality stainless steel and commercial grade plastics. There is a 90-day guarantee on all parts, material and labor. Prawnto Shrimp Machine Of Texas Co., Inc.

  • Page 13: Important Safeguards

    50% off premium prices for select grades and still purchase top quality products. IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed. Use the following important safeguards whenever using your PRAWNTO SHRIMP CUTTER: ∗ Read all instructions ∗ For commercial use only ∗...

  • Page 14: Cleaning Procedures

    ∗ Always operate Prawnto Shrimp Machine with all covers and guards in place. ∗ To avoid injury, always have Prawnto Shrimp Machine in place before starting. CLEANING PROCEDURES MLG Series 1. Be sure to unplug the machine before cleaning. 2. Daily – Remove the safety guard #211 by loosening the two thumb screws securing it.
  • Page 15 Replace the round cutting guard #208 and re- secure the safety guard #211 with the thumbscrews. (See figure 2.4) 7. Store machine in a clean, protected place for further use. (Fig 2.4) Prawnto Shrimp Machine Of Texas Co., Inc.

  • Page 16: Cleaning Procedures

    CLEANING PROCEDURES MLG-BC Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 17 Then sanitized them. 7. Clean the splash area and food zone with hot soapy water, sanitize, then allow to air dry in a clean protected area . (Fig 3.3) Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 18 Replace the round cutting guard #208 and re-secure the safety guard #211 with the thumbscrews. (See figure 3.4) 9. Store machine in a clean, protected place for further use. (Fig 3.4) Prawnto Shrimp Machine Of Texas Co., Inc.

  • Page 19: Maintenance

    The Plastic Guide Roller should be oiled DAILY with use. Also oil the Plastic Guide Roller in the event of roller chatter or squealing. Prawnto Oil™ is recommended to increase the life of the cutting mechanism. Refer to figure 4.1 and 4.2 below for oiling locations. MLG Series MLG-BC (Fig 4.1)

  • Page 20: Preventative Maintenance

    (About ¾” sag when pressure is applied between the motor pulley and top shaft pulley) Prawnto Shrimp Machine Co. of Texas, Inc. stocks all parts and accessories for the Prawnto Shrimp Cutter. See the section on Parts in this manual for information on ordering...

  • Page 21: Alignment

    5. To remove cover #208 grasp on each side and remove by gently pulling towards you. 6. Using hex key in your Prawnto™ Tool Kit (included) loosen the set screws in the collars #426 and on pulley #423 of the rubber disk shaft.
  • Page 22 12. Replace covers and guards # 206, # 208 and #211 and secure with screws. 13. Plug Prawnto™ shrimp machine to power source and begin cutting. 14. When #504 shaft is removed from the machine by loosening the interior set...

  • Page 23: Alignment

    (Fig 6.2) ALIGNMENT MLG-BC Proper alignment is critical to the successful operation of your Prawnto™ Shrimp Machine. Follow these simple steps to insure proper alignment for the MLG-BC machine. 9. Unplug Prawnto MLG-BC Shrimp Machine™ from power source. 10. Move Machine to a dry, clean work place.
  • Page 24 13. To remove cover #208 grasp on each side and remove by gently pulling towards you. 14. Using hex key in your Prawnto™ Tool Kit (included) loosen the set screws in the collars #426 and on pulley #423BC of the rubber disk shaft.
  • Page 25 (Fig 7.2) Aligning and Adjusting Shrimp Guide The Prawnto Belly-Cut Shrimp Machine MLG-BC can be easily adjusted to allow any depth of cut desired. Follow these simple steps to align and adjust your MLG-BC. 1. Remove cutting guard #208...
  • Page 26 4. Tighten shrimp guide nuts to lock shrimp guide in place. 5. Once guide is locked in place locate the Adjustment Knob located on left side on machine. (See figure 8.3) Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 27 (Fig 8.3) 6. Turn adjustment knob counter clockwise until shrimp guide is approximately 1/8” from blade. Adjust shrimp guide more or less to reach desired depth of cut and size of shrimp. Prawnto Shrimp Machine Of Texas Co., Inc.

  • Page 28: Trouble Shooting

    TROUBLE SHOOTING The Prawnto™ Shrimp Machine is the most reliable product of it’s kind on the market today. A simple routine of daily maintenance and oiling using Prawnto™ Oil will prevent most problems and give your Prawnto™ Shrimp Machine a long and productive life.

  • Page 29: Mlg-Bc

    In the unlikely event that your Prawnto™ MLG-BC Shrimp Machine develops problems use these simple trouble-shooting steps to resolve most issues. Squealing or chatter noise • Oil the 313 roller with Prawnto™ Oil (part #100) as shown in the maintenance section of this manual. Knocking sound •...

  • Page 30: Parts And Accessories

    PARTS AND ACCESSORIES Prawnto Shrimp Machine Co. of Texas Inc. offers replacements parts and accessories for all models. Use the following diagrams and tables to determine any parts and accessories needed for your Prawnto™ Shrimp Machine. There are four easy way to order parts and accessories from Prawnto Shrimp Machine Co.

  • Page 31: Diagrams

    In the event of heavy use, and every two years under normal usage, or as often as necessary. MLG-Series Tune-Up Kit 539 MLG-BC Tune Up Kit 539BC (Fig 9.1) (Fig 9.2) Fan Assembly Kit Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 32 #603 is the in- line connector. This kit can be purchased and used with either the MLG-3 or the MLG-4. (Fig 9.3) Fan Assembly Model 601 MLG- Series Interior View 1 Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 33 (Fig 9.4) MLG Series Interior View 2 Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 34 (Fig 9.5) Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 35 MLG-BC Interior View 1 (Fig 9.6) Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 36 MLG-BC Interior View 1 Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 37 (Fig 9.7) MLG and MLG-BC Exterior View 1 (Fig 9.8) MLG and MLG-BC Exterior View 2 Prawnto Shrimp Machine Of Texas Co., Inc.

  • Page 38: Parts List

    Motor Cover Round Cutting Guard (stainless) 208A Round Cutting Guard (aluminum) 209PB MLG Motor Support W/ Mounted Bearings 209BC MLG-BC Motor Support W/ Mounted Bearings 211S Safety Guard-Stainless 211A Safety Guard-Aluminum MLG Small Upright Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 39 Spacer Washer (for feeder discs separation) 434S Solid Spacer 439PB3 “ (MLG-3) Frame Screw with nut Bearing Mount Screw Motor Cover Motor Bracket Bolt & Washer Tool Kit 499L MLG Back-up Nut 499BC MLG-BC Back-up Nut Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 40 MLG-BC Front Plate Tune-Up Kit Solid Welded Process Station PART # DESCRIPTION Catch Pan for # 900 Replacement Funnel for # 900 Replacement Hose and Clamps for # 900 1001 Shrimp Guide Speed Pan Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 41 Prawnto Shrimp Machine Of Texas Co., Inc.

  • Page 42: Notes

    NOTES Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 43 NOTES Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 44 NOTES Prawnto Shrimp Machine Of Texas Co., Inc.
  • Page 45 Your Prawnto™ Shrimp Machine can make virtually any type of cut you desire. Simple adjustments may be required to make some cuts. The experts at Prawnto Shrimp Machine Co. Of Texas, Inc. will be happy to answer any questions on how to adjust your shrimp machine to make your desired cuts.
  • Page 46 Or Visit our Website at www.prawntomachine.com Printed on October 21, 2008 Prawnto Shrimp Machine Of Texas Co., Inc.
