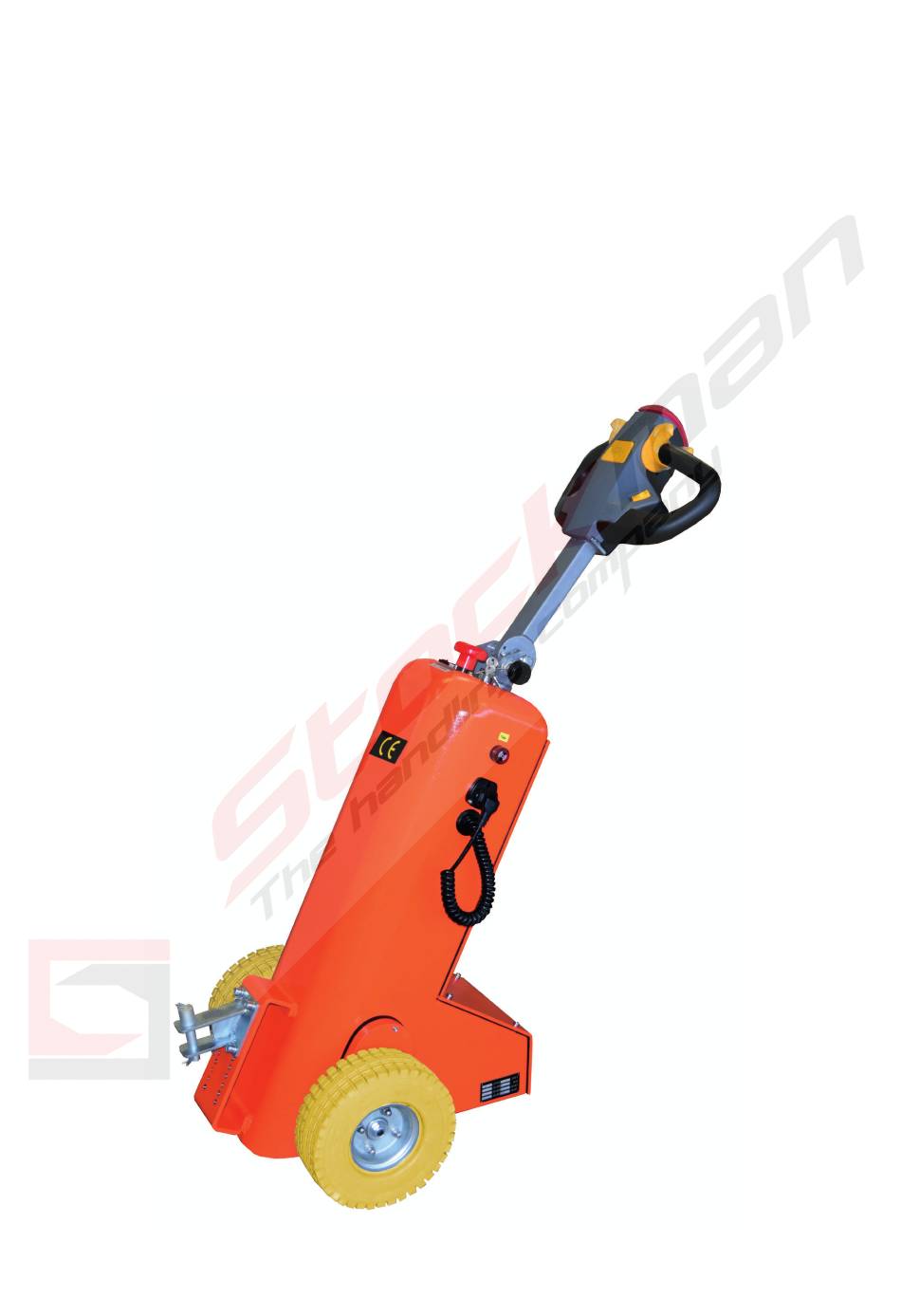

Stockman SK N User Manual

Electric tow / tug

Hide thumbs

USER GUIDE

Electric tow / tug

SK N

NOTE : All information contained in this document is based on the data available at the time of printing.

The manufacturer reserves the right to modify its products at any time without notice, obligation, or

constraint. Please check our website for any updates.

01.2021

Table of Contents

Need help?

Do you have a question about the SK N and is the answer not in the manual?

Questions and answers

Summary of Contents for Stockman SK N

Page 1 USER GUIDE Electric tow / tug SK N NOTE : All information contained in this document is based on the data available at the time of printing. The manufacturer reserves the right to modify its products at any time without notice, obligation, or constraint.
Page 2 Thank you for using this smart tow tractor, for your safety and correct operation, Please read these instructions carefully before using it . Keep this manual on file for future reference . If this is lost, please contact your local supplier for a new copy.
Page 3 Description Quantity Joint plate Mainframe Washer 8 Spring washer 8 Screw M8X25 Hook unit Fig 1 Description Quantity Joint plate Mainframe Joint base Screw M8X25 Spring washer 8 Restoration spring unit Handle Locking mechanism Bushing Shaft Nut M16 Hexagon socket screw Slide block Hook frame...
Page 4 4. OPERATING AND ADJUSTING HOOK UNIT After attached hook unit to mainframe, turn handle (No.6) backward, loosen nut M16 (No.11), Take allen wrench,and insert the hole of the hexagon socket screw(No.12),then turn hexagon socket screw (No.12) , so that the distance between slide block(No.13) and hook frame can be adjusted , to fit with object’s thickness , to clamp the object ,then tighten nut M16.
Page 5 5. GENERAL DRIVING INSTRUCTIONS 1) Before starting to operate, make sure that the daily maintenance has been carried out. 2) Turn the speed controller gently and smoothly; 3) To slow down, release the butterfly speed knob 6. BATTERY (No.1) AND CHARGER STAND (No.5) If the battery voltage is low, it must be recharged.
Page 6 Attention： Do not smoke when working with battery  skin or Battery fluid is a corrosive and solution, avoid getting it on the in the eyes  Please charge the battery in time  A low battery charge status may damage the battery during long-time use. ...
