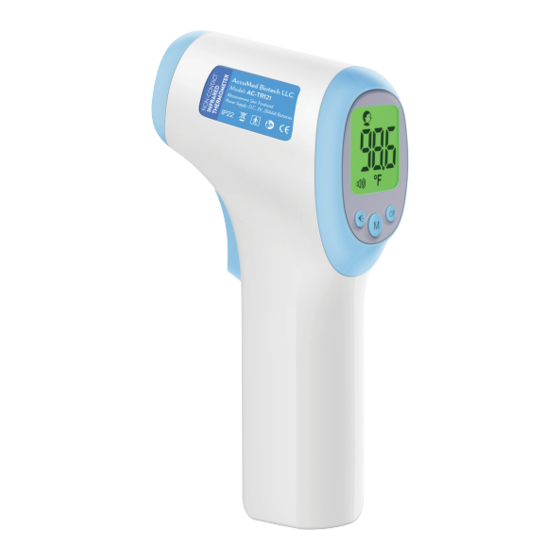

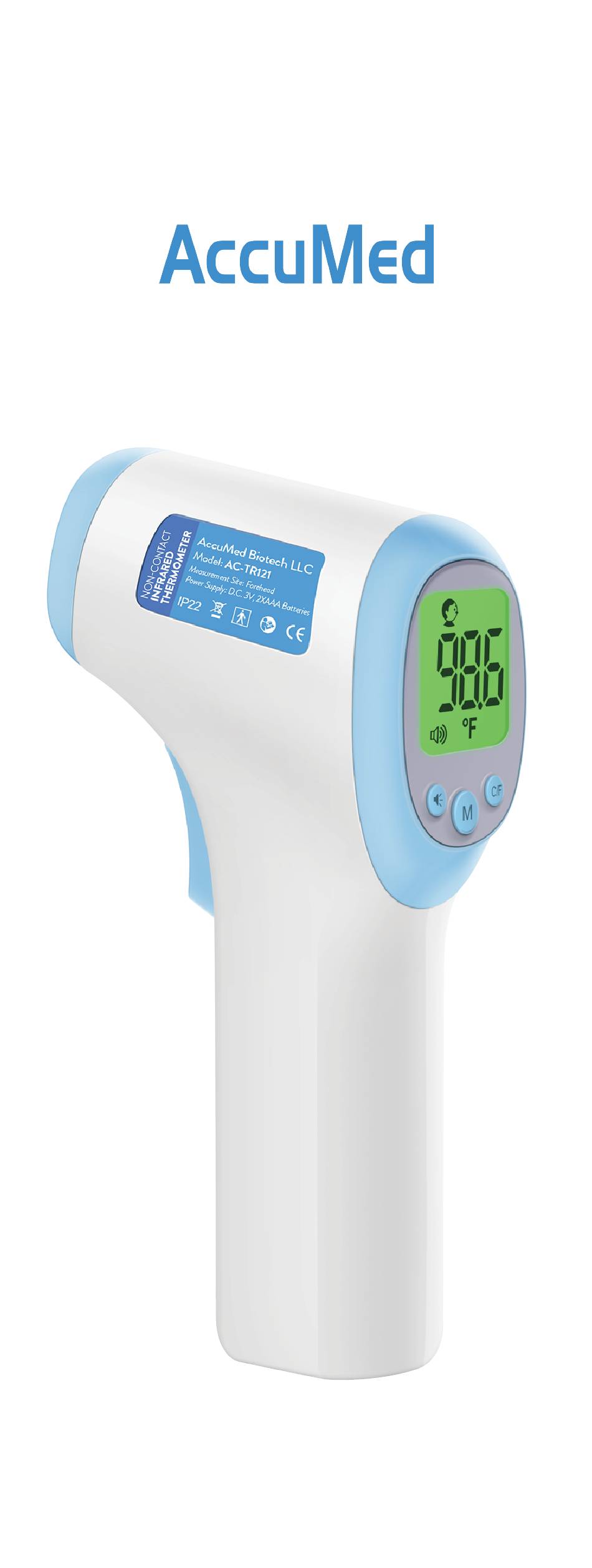

- Page 1 Non-Contact Infrared Thermometer Instruction Manual Model: AC-TR121 Version: 1.0.0 July 12th, 2021...
-
Page 2: Safety Precautions
Thank you for purchasing an AccuMed Non- Contact Infrared Thermometer! This device is used to measure an object’s temperature based on the relationship between temperature and measurable infrared radiation. This device is designed to provide a non-contact means of measuring an object’s temperature based on the relationship between temperature and measurable infrared radiation. -
Page 3: Temperature Measurement Mode
• Do not touch the lens of the probe with your ngers. Do not attempt to disassemble or repair the device. • Ensure the body temperature is within normal range before use. Wait at least 30 minutes after eating, bathing, or exercising before measurement. -
Page 4: Practical Considerations
Note: Do not take temperatures via the ear canal on children under three months old. Normal body temperature ranges may vary slightly with age and gender. Generally, newborns and children have higher body temperatures than adults. For more information, please refer to the chart provided below. Normal ranges for di erent measuring positions. -
Page 5: Product Structure
When the battery level is low, the device will display a low voltage icon on the LCD screen. When the battery level is low, the device will display a low voltage icon on the LCD screen. When the device is placed in a self-test function or is malfunctioning, the LCD screen will display an ErH or ErE prompt. -
Page 6: Display Description
Display Description Body Mode Icon Object Mode Icon Battery icon Readout Buzzer icon Memory icon Buzzer O icon °C (Celsius) Scale °F (Fahrenheit) Scale Operation Instructions Insert the batteries based on the correct polarity of the unit. Before use, ensure the device has been turned on and calibrated in the measurement environment for 30 minutes. - Page 7 3) Measuring Body Temperature Aim the thermometer towards 1-6cm (0.4-2.36in) the forehead from a distance of 1-6cm (0.4-2.36 inches). Press the SCAN button directly to measure the temperature of the forehead. The temperature will be displayed on the LCD screen along with a short beep sound.
- Page 8 1) While the device is o , press the M button. The LCD screen will display, “01” along with the last measurement taken. 2) Press the “M” button to display additional memory numbers. The device can hold up to 32 memory channels. The device will revert to MEM01 after the last channel is displayed.
-
Page 9: Maintenance
Maintenance Do not attempt to maintain or repair this device. If the product is damaged or defective, please contact AccuMed directly. Please visit: https://accumed.com/contacts/ Version: 1.0.0 July 12th, 2021... -
Page 10: Troubleshooting
If at any time you have questions regarding the accuracy of measurements being taken, please contact AccuMed directly. Storage Do not store the device in areas of direct sunlight, high temperatures, or areas with high levels of moisture or humidity. -
Page 11: Technical Speci Cations
Solution Do not attempt to repair or modify the device. If the hardware is damaged, please The hardware is contact AccuMed damaged. directly for a replacement. The battery is low however it can still be used. Replace the batteries if they are too low for unit. -
Page 12: Standard List
50°F-104°F (10-40°C), Relative humidity, ≤RH95%, Operating Conditions 70-106KPa 5.69” x 1.45° x 1.53° (144.6mm x 37.0mm x 39.0mm) Size (Dimensions) Weight 0.19lbs (87g) ≤100.4°F (38.0°C) High Body Temperature ≤109.4°F (43.0°C) Waterproof Grade IP22 Electric Shock Internally powered ME equipment Type BF applied part, including the whole unit Applied Part Continuous Operation Mode of Operation... -
Page 13: Emc Declaration
Medical device software - Software life-cycle processes. EN62304 Medical devices - Application of usability engineering to EN62366 medical devices. Biological evaluation of medical devices - Part 1: EN ISO 10993-1 Evaluation and testing within a risk management process. Disposal Dispose of the device in accordance with the regulations applicable at the place of operation. - Page 14 Copyright © 2020 AccuMed. All rights reserved. Designed by AccuMed. Assembled in China. https://accumed.com...
