Assembly and Care Instructions
First assembly will take about twenty minutes and is best done with two people. However,
once complete, much of it will not have to be repeated and it will go much faster.
If you refuse to read instruction save yourself time and effort and read the bold
faced notes.

Safety

Periodically check to be sure that the top is not sagging over the side doors, that the under
straps are snug and that the lower hooks are not loose near the wheels.

Cleaning

Don't clean the plastic windows when they are dry - you can scratch them.
The best way to clean your windows is to hose them with water and to rub with your bare
hands or a very soft cloth. Liquid soap may be used.
During freezing weather an automotive windshield solvent and a soft cloth will work.
Fabric areas of the cab may be washed with a rag or soft bristle brush and a mild soap.

Storage

Store in a clean dry place. Never store a wet enclosure off of the car in an enclosed area, as
it can become mildewed.
Avoid folding the plastic windows of the enclosure for long periods. Wrinkles can be
relaxed with a hair dryer but take care not to melt the plastic.

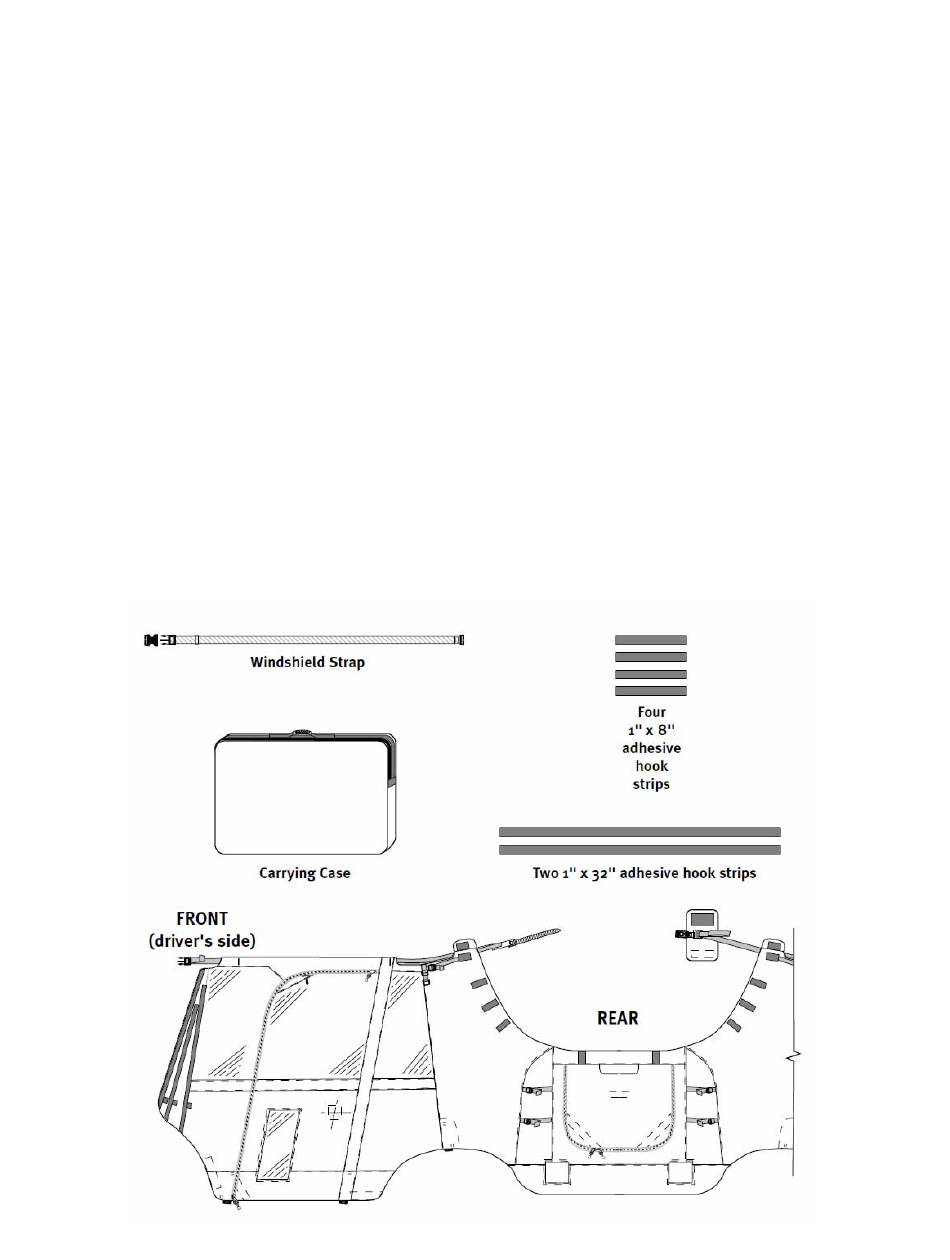

Parts:
72042 (page 2 of 7)
12.18.09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 72042 and is the answer not in the manual?

Questions and answers

Summary of Contents for FAirway 72042

  • Page 1 Store in a clean dry place. Never store a wet enclosure off of the car in an enclosed area, as it can become mildewed. Avoid folding the plastic windows of the enclosure for long periods. Wrinkles can be relaxed with a hair dryer but take care not to melt the plastic. Parts: 72042 (page 2 of 7) 12.18.09...
  • Page 2 Cut the 32” strip into individual pieces to go above and below your marks and then attach them to the roof posts. Wait for two days for the glue to cure before proceeding. 72042 (page 3 of 7) 12.18.09...
  • Page 3 Clip the strap buckle into the buckle end on the web strap and tighten the strap. Slip excess strap under the strap keeper and slide the strap keeper down toward the end of the strap. 72042 (page 4 of 7) 12.18.09...
  • Page 4 Grasp each hook and stretch to attach to the bottom edge of the golf car. Keep you face and eyes cela of the hook and straps when you connect tehm. The elastic strap can snap back if the hook fails to connect. 72042 (page 5 of 7) 12.18.09...
  • Page 5 To hold the trunk door open you can either fold one of the bottom corners up and mate the hook tab on the inside of the door to the loop tape on the flap at the door top, or you can roll the door up and attach it to the top flap. 72042 (page 6 of 7) 12.18.09...
  • Page 6 The side doors can be held open to either the inside or the outside. Just attach the snap hook to the “D”-ring on the top of the enclosure. You may want to put the door on the inside for periods of good weather and on the out- side in bad weather.
