- Page 1 Hardware Installation Guide AdvantageGPS.com l 1-800-553-7031...

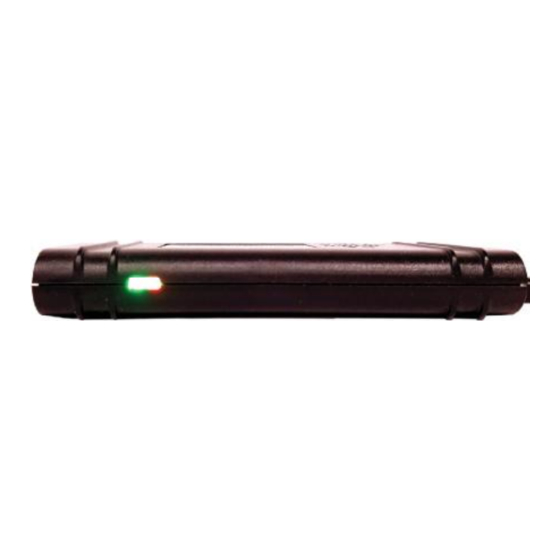

- Page 2 Welcome Experience 4G LTE Evo, the next evolution in GPS tracking. Advantage by Procon Analytics - where automotive telematics meets genuine analytics. Installation Made Easy Tools needed for install: screwdrivers, wire strippers and cutters, crimping tool and voltmeter. Plus, you might want to have the following handy: connectors, velcro, and zip ties.
- Page 3 Evo Wiring [POWER/SERIAL CABLE DIAGRAM] We’ve included a detachable wiring harness. Connect everything before plugging harness into the Evo device. Black Wire: Ground – Connect the ground wire to the vehicle chassis (should always be first connection made.) Red Wire: 12 VDC Constant Power –...
- Page 4 ECM Starter Disable [DIAGRAM 1] If the starter is controlled by the ECM (Engine Control Module), splice the wire that leads directly from the ECM to the starter. Note: Do not splice into the wire leading from ignition switch to the ECM. GREEN (Not In Use) Ignition RED =...
- Page 5 Starter Interrupter [OPTIONAL FEATURE – DIAGRAM 1] • Locate and cut the starter wire of the vehicle. This wire will only display 12VDC while the vehicle is starting. • Connect yellow wire from the harness to the yellow wire of the starter interrupt relay.
- Page 6 Payment Reminder [OPTIONAL FEATURE] • Locate a switch ignition power wire that reads 12V when the vehicle’s ignition is in the ON position and 0 Volts when the vehicle ignition is in the OFF position. The ignition wire retains 12V as the vehicle is starting.
-
Page 7: Led Troubleshooting
LED Troubleshooting [TECHNICAL DATA] Technical Data Operating Voltage 7V - 28V Power Consumption 2.5 mA (standby), 50 mA (active) Operating Temperature C to +75 Storage Temperature C to +85 Operation Humidity 20% to 90% (non-condensing) Solid Green = Cellular Signal is OK Flashing Green = Searching Solid Red = GPS Signal is OK Flashing Flashing Red = Searching... - Page 8 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 9 If you have questions or would like to have our team of experts help you with your install, please: 1-800-553-7031 Support@AdvantageGPS.com AdvantageGPS.com/Knowledge-Center AdvantageGPS.com l 1-800-553-7031...
