Windsor L-GG054PST-PK Assembly Instruction

Grill gazebo-canopy

Table of Contents

Download this manual

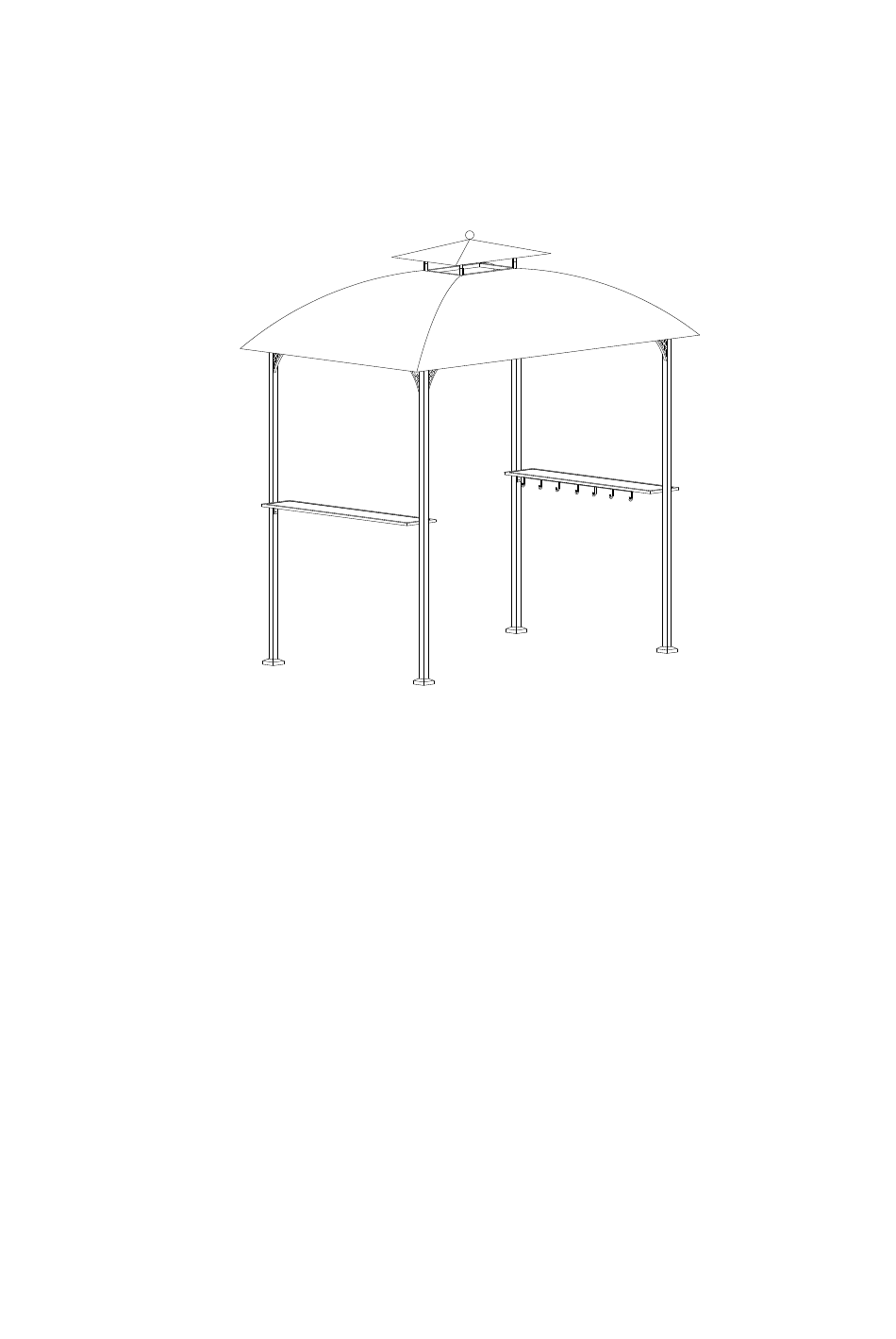

Windsor Grill Gazebo-Canopy

Assembly Instruction

Item no# L-GG054PST-PK

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble

or install the product.

WARNING

Keep all children and pets away from assembly area. Children and pets should be

supervised when they are in the area.

Keep all flame and heat sources away from the tent fabric. This tent is made with

fabric that meets CPAI-84 specification for flame resistance. It is not fireproof. The

fabric will burn if left in continuous contact with any flame sources. The application of

any foreign substance to the tent fabric may render the flame-resistant properties

ineffective.

Before beginning assembly of product, make sure all parts are present. Compare

parts with package contents list. If any part is missing or damaged, do not attempt to

assemble the product.

Table of Contents

Do you have a question about the L-GG054PST-PK and is the answer not in the manual?

Page 1 Windsor Grill Gazebo-Canopy Assembly Instruction Item no# L-GG054PST-PK SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble or install the product. WARNING Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area.
Page 2 Parts List Small canopy 1 pc Big canopy 1 pc Fig.1: Remove the canopy (Q) from four corners and put the canopy away. Fig.2: Take down the small top from the big top. Fig.3: Take down the finial (N) from the small top. Fig.4: Remove the small canopy (P) from four corners of small top cant beam (F) and put away the small canopy.
Page 3 Fig.1: Put the big canopy (Q) onto the big top and do not spread out. Fig.2: Put the small top (P) onto the small top, and then fix four corners of small canopy to the end of small top cant beam (F). Fig.3: Fix the finial (N) to the small top.
Page 4 Please do not return this product to the store. For technical assistance or IMPORTANT: replacement parts, please call Sunjoy Group at 1 (866) 578-6569 between 8:00 AM EST and 8:00 PM PST. You may fax your replacement parts form (which is included in the packaging) to 1 (740) 283-3549 or email to customer.care@sunjoygroup.com CARE AND MAINTENANCE...
