Description

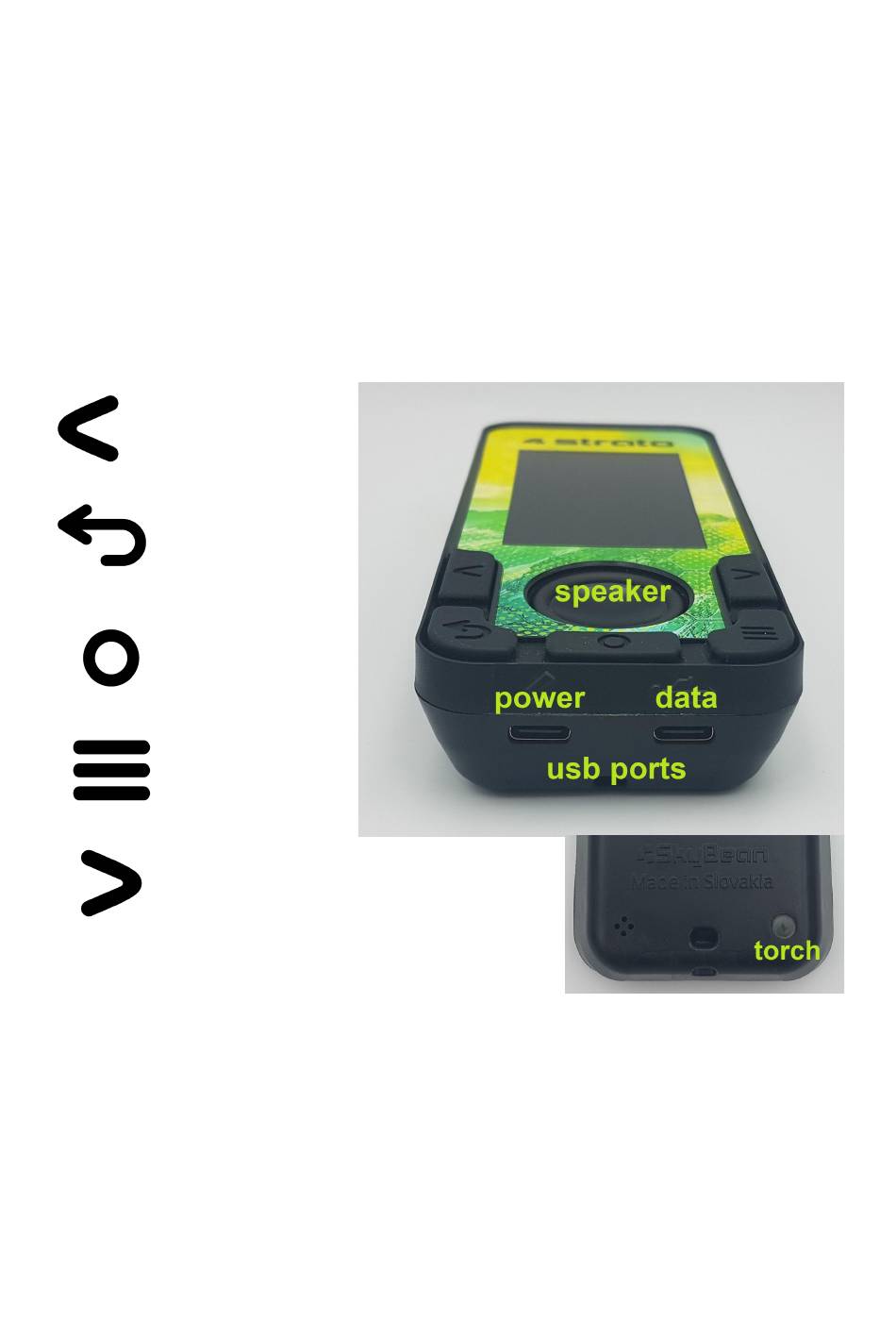

The main physical user interface of Strato are 5 buttons placed around the speaker.

There are two USB-C ports, the power port on the left has a quick charge feature

and the data port on the right can communicate with other devices and can charge

them. Strato can be charged via both ports (only one at the time), so the data port is

power bi-directional.

Left arrow

Back

Enter/Confirm

Options

Right arrow

On the back side, there is a torch lens and eye for safety strap.

Turn ON

Press the enter button for 1 second.

Turn OFF

Press&hold the enter button for 1 second until the menu bar is pulled up, then

release and click it again.

strato

user guide

210909

Table of Contents

Do you have a question about the Strato and is the answer not in the manual?

Page 1 There are two USB-C ports, the power port on the left has a quick charge feature and the data port on the right can communicate with other devices and can charge them. Strato can be charged via both ports (only one at the time), so the data port is power bi-directional.
Page 2 :) Vario acoustics editor There is a PC web server based editor for audio profile/s inside Strato. To use this feature, Strato needs to be connected to the local WiFi network (see Update chapter). Go to the Wi-Fi submenu, then into Network info. If Strato has successfully connected to your local network, it has assigned an IP address.
Page 3 Reset Strato is a complex device with 6 CPU cores onboard, so there is real chance it can freeze. If this happens, it is necessary to perform hardware reset. There is no “magic...
Page 4 To update the bootloader, go to strato.skybean.eu/dfu/ and follow the steps on this page. For some users, it might be tricky to put Strato into DFU mode, which is needed to update the bootloader. Strato will enter DFU mode when it detects the options button pressed just after its reset.
