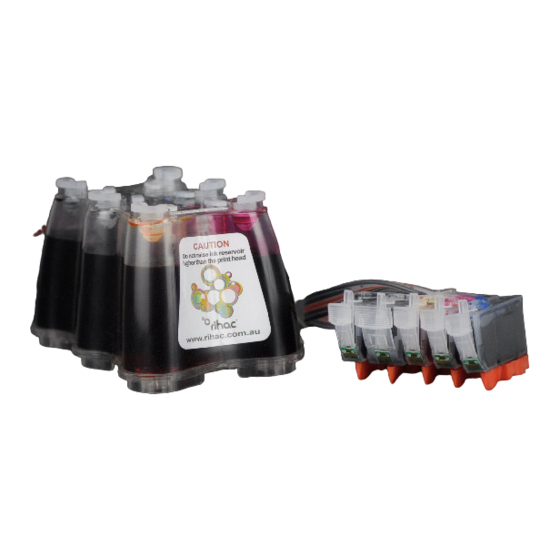

Rihac MP810 Specific Install Instructions

a) First the plastic clip on the end of the metal tube arm will need to be removed.
We will be using the clip later on. Removing the clip is as easy as twisting it off.
If you have damaged the double sided tape whereby it looks as though it is no
longer sticky remove the double sided tape of the back of the metal tube arm.
In the packaging you will find a replacement double sided tape. Remove one
side of the backing tape then place it on the metal tube arm.
b) Install the CISS cartridges in to the printer cartridge holder. Ensure that the
cartridges are primed and the chips have been placed on correctly
c) Attach the metal tube arm on the left hand side of the printer just above the
angle molding. Ensure that there is no twisting in the tubing between the metal
arm and the cartridges.
MP810 Specific Install Instructions
Angled Moulding
