Summary of Contents for Radlink Wireless C-Arm Kit
- Page 1 Radlink Wireless C-Arm Kit User Manual An accessory of the Radlink GPS & Radlink GPS Tablet Page 1 of 13 00.09-014 Rev. C – Radlink Wireless C-Arm Kit User Manual (11/15/16)
-
Page 2: Table Of Contents

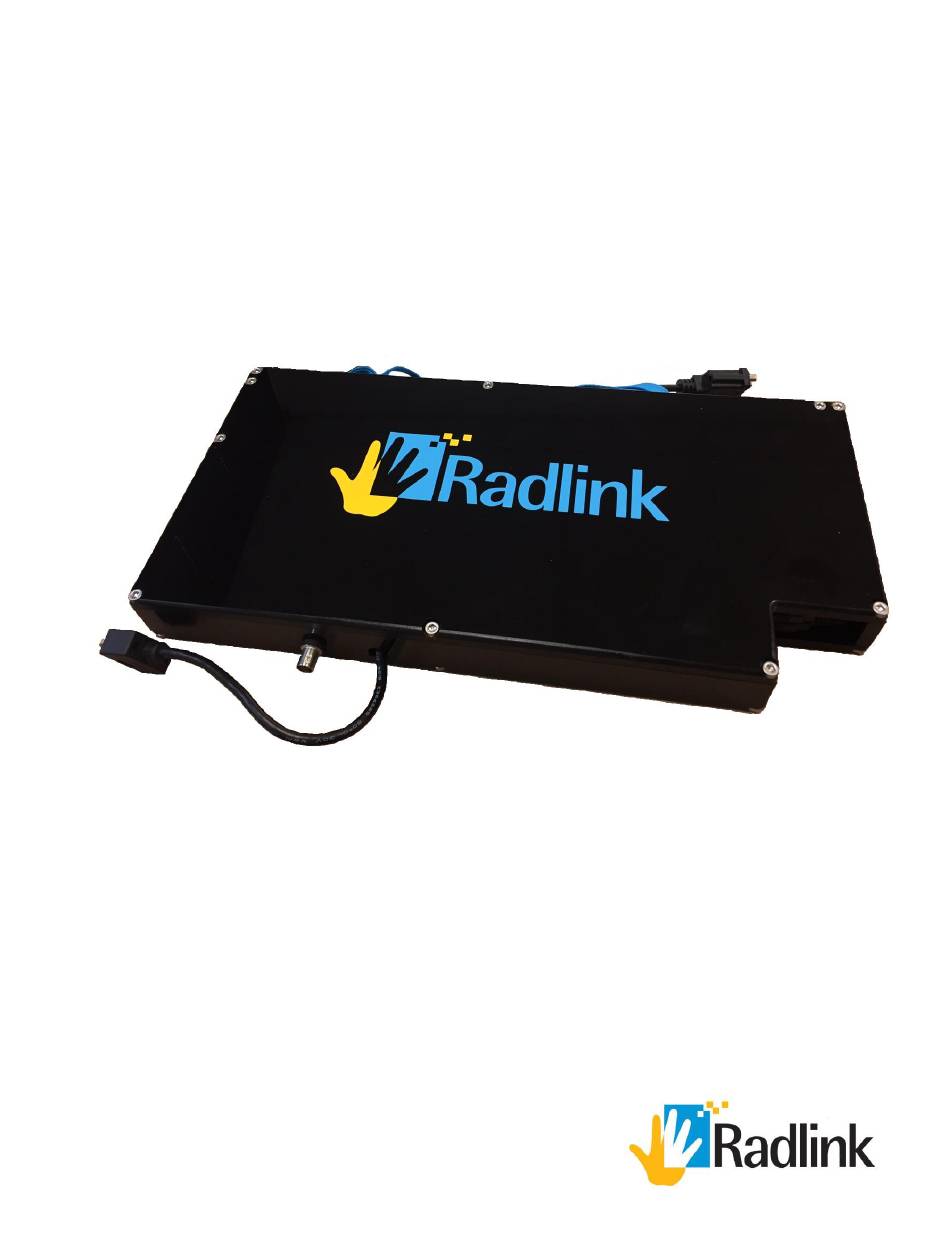

System™) & GPS Tablet that is used to wirelessly send images from a video source such as a C-Arm to the Radlink GPS or GPS Tablet. The Radlink Wireless C-Arm Kit is a computer system that accepts video signals from BNC, VGA, or DVI connections and converts these signals into an image file, which is then sent wirelessly to a Radlink GPS or GPS Tablet. -
Page 3: Radlink Wireless C-Arm Kit System Overview
Wireless to GPS Console Cart Tablet GPS Tablet GPS Console Cart Images sent via Wired or Wireless to Hospital PACS Hospital PACS & EMR System Page 3 of 13 00.09-014 Rev. C – Radlink Wireless C-Arm Kit User Manual (11/15/16) -
Page 4: Radlink Wireless C-Arm Kit Technical Specifications
- No High Voltage Terminals or multiple socket outlets - GPS Tablet contains no PEMS required for basic safety or essential performance - GPS Tablet contains no cooling liquids or oil lubrication systems Page 4 of 13 00.09-014 Rev. C – Radlink Wireless C-Arm Kit User Manual (11/15/16) -
Page 5: Warnings For Radlink Wireless C-Arm Kit Unit
Recommended that the user reads Radlink Wireless C-Arm Kit User Manual prior to operating unit Do not touch the Radlink Wireless C-Arm Kit and the patient at the same time The Radlink Wireless C-Arm Kit has no “Applied Parts”, or parts meant... - Page 6 Warnings for Radlink Wireless C-Arm Kit unit (Continued) Position the Radlink Wireless C-Arm Kit so the mains plug is readily accessible for quick disconnection from the power supply Antennas for the Wireless Router (12-14-003) inside of the Wireless C-Arm Kit must be 20cm from all persons & must not be co-located or...
-
Page 7: Frequently Used Functions
2. Press the Power Switch on the bottom side of the Wireless C-Arm Kit to turn it on. The blue lights will illuminate within 5 seconds as the system powers on. If not, plug in the unit... -
Page 8: Connect Radlink Wireless C-Arm Kit To A Gps Tablet
Connect Radlink Wireless C-Arm Kit to a GPS Tablet 1. First, identify the last 4 digits of the Serial Number of the Radlink Wireless C-Arm Kit that you are trying to connect to. Make sure the device is powered on, and the blue power light is illuminated. -
Page 9: Using A Radlink Gps (Tablet) In An Anterior Approach Tha Procedure
Using a Radlink GPS (Tablet) in an Anterior Approach THA Procedure 1. Make sure that your Radlink Wireless C-Arm Kit is on and connected to the wireless internet network “RadlinkWCAXXXX” where XXXX is the last 4 digits of the WCA Kit serial number 2. -
Page 10: Troubleshooting
- “Wireless Frame Grabber” is not 2. Make sure the Wireless Frame selected as the System Mode in Grabber is checked under the software System Mode 3. Click Save Settings Page 10 of 13 00.09-014 Rev. C – Radlink Wireless C-Arm Kit User Manual (11/15/16) -
Page 11: Safety Signs & Symbols
Indicates the range of atmospheric pressure to which this equipment can be safely exposed Fragile, handle with care Keep this equipment dry European Representative Information MDSS GmbH Schiffgraben 41 0123 30175 Hannover, Germany Page 11 of 13 00.09-014 Rev. C – Radlink Wireless C-Arm Kit User Manual (11/15/16) -
Page 12: Preventative Maintenance
If you find any damage on any part of your Radlink Wireless C-Arm Kit charger cable, stop using the cable and contact Radlink Technical support for a replacement. - Page 13 Radlink, Inc. www.radlink.com (310) 643-6900 815 N. Nash St. El Segundo, CA 90245 Page 13 of 13 00.09-014 Rev. C – Radlink Wireless C-Arm Kit User Manual (11/15/16)
