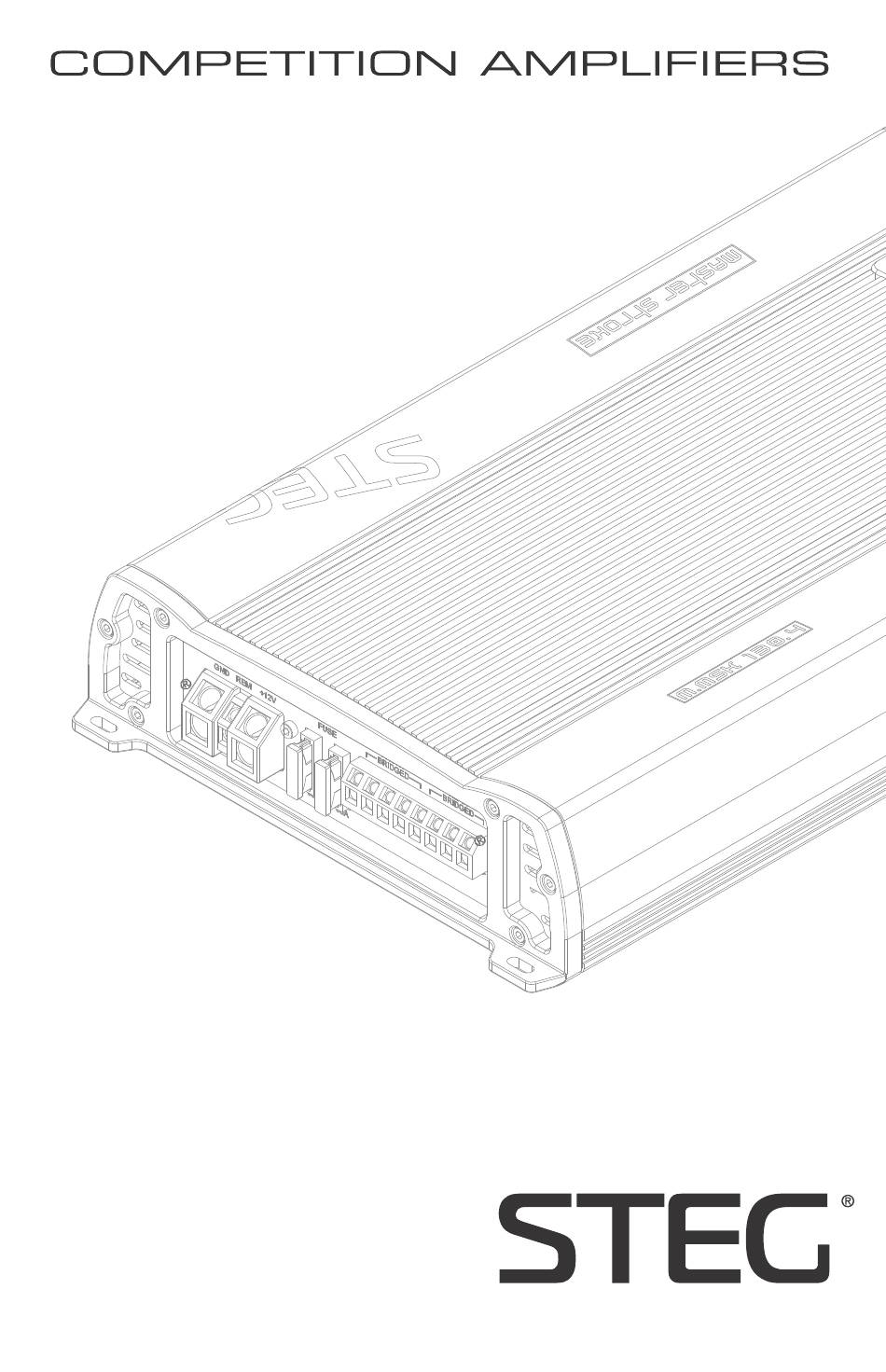

- Page 1 M.MSK130.4 M.MSK200.2 USER'S GUIDE Car Audio Power Amplifiers...
- Page 2 • STOP USE IMMEDIATELY IF A PROBLEM OCCURS. Failure to do so may result in personal injury or damage to the product. Return it to your authorized STEG dealer. • HAVE AN EXPERT DO THE WIRING AND INSTALLATION. This unit requires special technical skill and experience for wiring and installation.
- Page 3 INTRODUCTION Thanks and congratulations for choosing STEG for your audio amplification needs. These amplifiers have been significantly improved throughout the years in order to assure quality and reliability. The latest technology has been incorporated into every product, providing you with incredible power and unparalleled sound quality. Our highly developed and simplified circuitry contributes to low distortion and the...
- Page 4 Fuses: These ATC fuses are to protect the amplifier and must be inserted for operation. When replacing fuses, check for system wiring faults and always use the specified value for each fuse. The M.MSK130.4 model requires two 35A fuses, while the M.MSK200.2 requires two 30A fuses.
- Page 5 M.MSK130.4 Speaker Connection Examples: 4-Channel 3-Channel (Stereo + Bridged) 2Ω 2Ω 2Ω (min) (min) (min) 4Ω (min) 2Ω 2Ω 2Ω (min) (min) (min) 2-Channel (Bridged) 4Ω 4Ω (min) (min) M.MSK200.2 Speaker Connection Examples: 2-Channel 1-Channel (Bridged) 2Ω 2Ω 4Ω (min)
- Page 6 Readjustment may be necessary after any changes to crossover or bass boost settings. Crossover Mode (X-OVER): This switch is available on the M.MSK130.4 model (rear channels only) and the M.MSK200.2 and is for selecting the crossover filter mode as a high-pass (HP), a low-pass (LO) or bypassed for full-range operation (AP).
- Page 7 Warranty & Service Care GT Trading warrants this product to be free from manufacturing defects for a period of one (1) year from original date of purchase. Under this warranty, Wāvtech will replace the defective product on behalf of GT Trading with a new or remanufactured one at no charge.
- Page 8 The described in this User's Guide represent just a part of the STEG products available. All brands and trademarks mentioned have been used exclusively for description purposes and all rights belong to the respective owners, total or partial.
