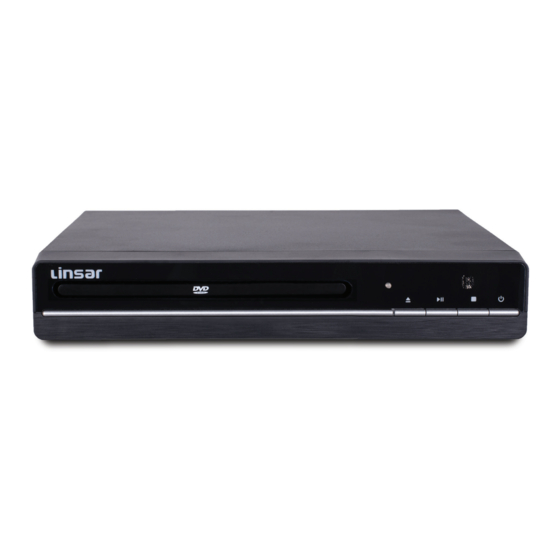

Linsar LS51DVD User Manual

5.1 channel dvd player

Hide thumbs

Table Of Contents

Quick Links

5.1 CHANNEL

DVD Player

MODEL: LS51DVD

User Manual

Table of Contents

Need help?

Do you have a question about the LS51DVD and is the answer not in the manual?

Questions and answers

Summary of Contents for Linsar LS51DVD

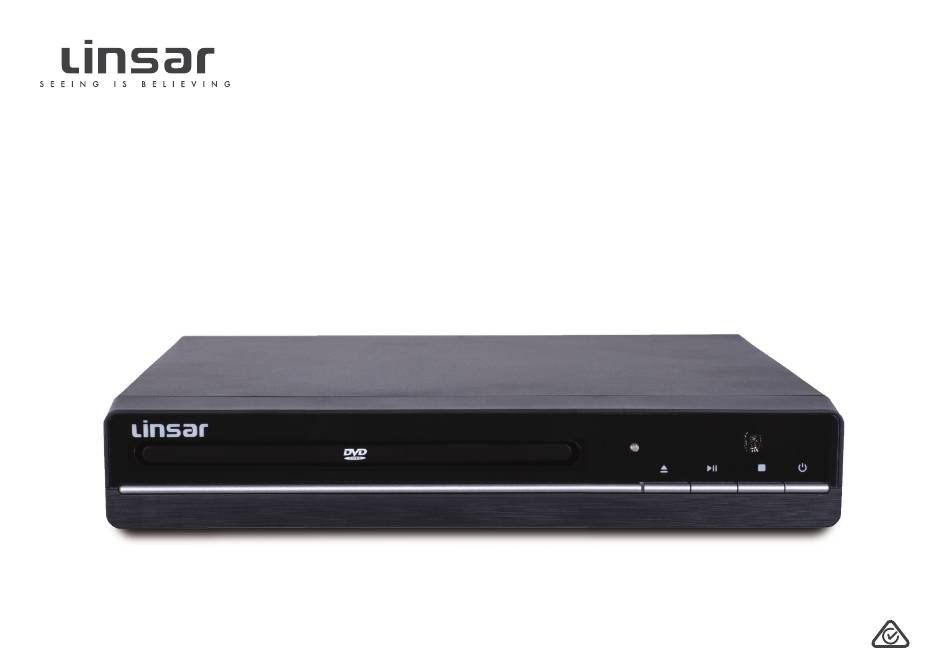

Page 1 5.1 CHANNEL DVD Player MODEL: LS51DVD User Manual...
Page 2: Welcome
All products brought to you by Linsar are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by a comprehensive 1 Year Warranty.
Page 3: Table Of Contents
Contents Welcome Product Overview Controls and Connections Remote Control Operation Troubleshooting Specifications Compliance and Responsible Disposal...
Page 4: Product Overview
Product Overview What’s in the box: A. 5.1 Channel DVD Player B. Remote Control C. AAA Batteries D. AC Adaptor E. AV Cable F . User Manual G. Warranty Certificate H. General Safety Warnings 4 | PRODUCT OVERVIEW...
Page 5: Controls And Connections
Controls and Connections Front view Disc Tray 2. Power Indicator (Open/Close) Button Play/Pause Button Stop Button Power Button Remote Sensor Rear view See next page for more info on the connections. CONTROLS AND CONNECTIONS | 5...
Page 6 HDMI All-digital connection between the DVD player and any HDMI Use a HDMI cable for best device. picture and sound quality. You can use this to connect audio from your DVD player using Audio L/R the AV cable (included). You can use this to connect your DVD player. Supports CVBS Standard Definition (SD) picture quality.
Page 7: Remote Control
Remote Control Setup Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into AAA size batteries place. included Precautions When Using Batteries • Do not use old and new batteries together. •...
Page 8 Remote Control OPEN/CLOSE STANDBY VOLUME MUTE 0/10 SETUP MENU SUBTITLE STEP STOP TITLE ANGLE ZOOM GOTO AUDIO PROG SLOW REPEAT OPEN/CLOSE: Press to open STANDBY OPEN/CLOSE STANDBY: Turn the unit ON or close the disc tray from standby mode; press again to put the unit back into standby NUMBER BUTTONS: Numerical mode...
Page 9 OPEN/CLOSE STANDBY VOLUME MUTE 0/10 SETUP MENU OSD: Display/hide detailed SUBTITLE STEP STOP TITLE ANGLE ZOOM GOTO AUDIO PROG SLOW REPEAT information about the currently playing media SUBTITLE STEP STOP TITLE N/P: Switch between NTSC or PAL SUBTITLE: Turn the subtitle on/off ANGLE ZOOM GOTO...
Page 10: Operation
Operation Connect to power • Plug in the AC/DC adaptor to the power outlet, and connect the other end to the power input on the unit, then switch on the power at the outlet. Once the unit is connected to power, the indicator will turn red. Playing a DVD/VCD/CD •...
Page 11 • Press the STOP button once to stop playback. The unit will remember the point where the disc was last stopped. Press the PLAY/PAUSE button to start playing and the unit will resume playback from this point. • If you press the STOP button twice, the unit will stop playing completely, and when the disc is played again, it will start from the beginning.
Page 12 Setting Menus Press the SETUP button and the setting menu will appear. TV SYSTEM LAST MEMORY SCREEN SAVER TV SHAPE ANGLE MARK DEFAULT • Use the / buttons to select and highlight the setting you want to adjust. Press the OK button to confirm the selection.
Page 13 Screen Saver Use the and OK buttons to set this function to ON/OFF . When set to ON, the screen saver will appear when the unit has been idle for several minutes. TV Shape Use the and OK buttons to set the Aspect Ratio to match the connected TV. Options: 4:3 PS (Progressive Scan) / 4:3 LB (Letter Box) / 16:9.
Page 14 Subtitle Lang Use the and OK buttons to set the language for subtitles, or to turn this function off. Menu Lang Use the and OK buttons to set the language for on-screen menus. Video Video Use the and OK buttons to set to CVBS when the unit is connected using the composite output jacks.
Page 15 Dual Mono When this is selected, use the and OK buttons to choose from the following settings (depending on the recording of the disc): • STEREO • MONO-L: Plays the left channel on all speakers. • MONO-R: Plays the right channel on all speakers. •...
Page 16: Troubleshooting
Troubleshooting If you encounter any problems with your DVD Player, please check this list of possible issues for a solution. If you don’t find a solution here, contact After Sales Support on 1300 886 649. Problem Solution • Ensure the DVD player is firmly connected to your TV and amplifier. There is no sound.
Page 17: Specifications
Specifications Input: AC 100-240V, 50/60Hz Power Adaptor Output: DC 5V, 1.2A 6.0W Max. Disc Compatibility DVD/CD/CD-R/CD-RW/DVD ± R/DVD ± RW/JPEG Colour System NTSC/PAL HDMI Output 480i / 480P / 720P / 1080i / 1080P Weight 577g Dimensions 225 (W) x 200 (D) x 46.5 (H) mm For Technical and Warranty Support 1300 886 649 www.tempo.org...
Page 18: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging Compliance The packaging of your product has been This product complies with the Australian Safety selected from environmentally friendly Standard AS/NZS 60065 to ensure the safety of the materials and can usually be recycled. Please ensure product.
Page 19 Notes...
