Summary of Contents for TScale TN-M Series

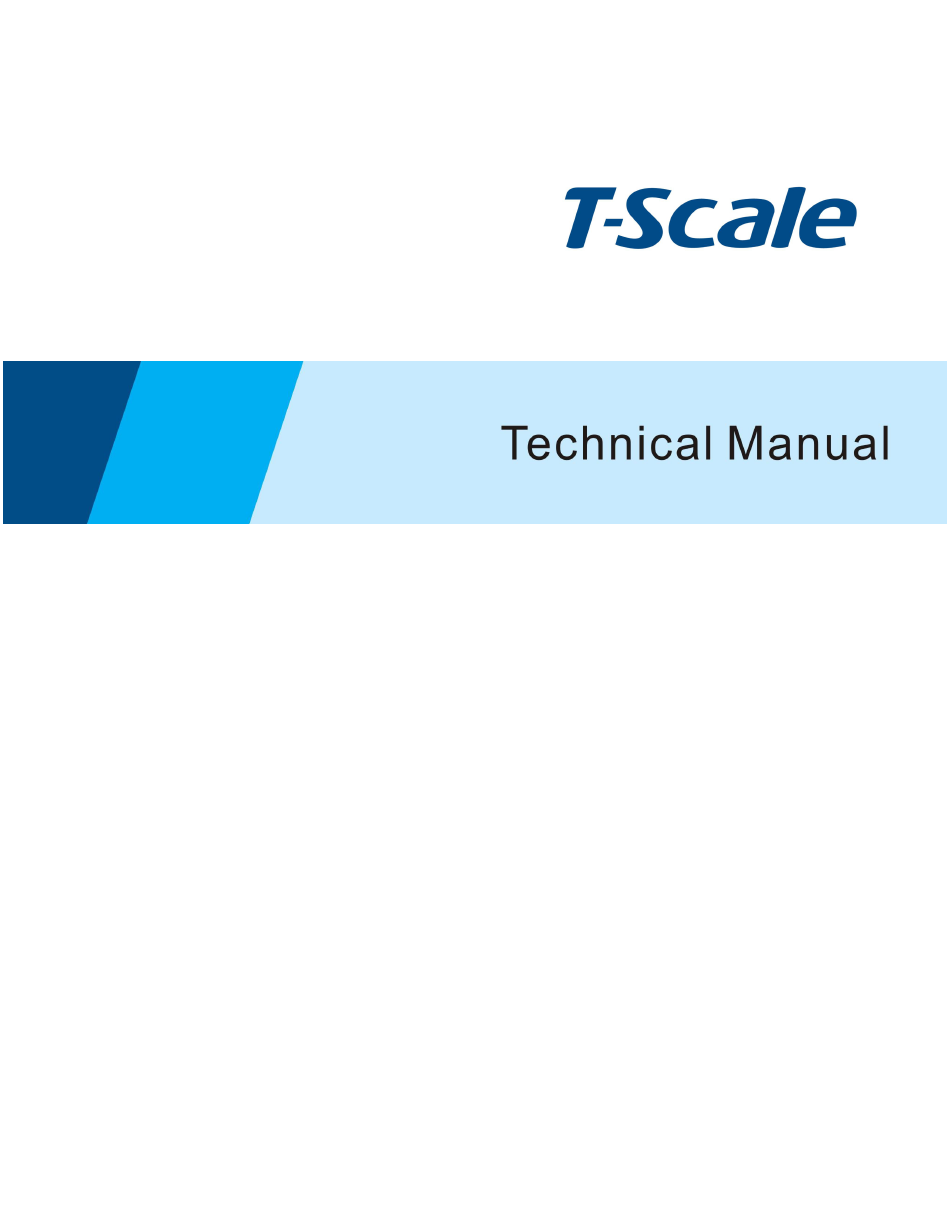

  • Page 1 Crane Scales V1.13-V1.10 08/18/2020...

  • Page 2: Table Of Contents

    TN-M Series Crane Scales Technical Manual CONTENTS 1. PRECAUTIONS......................- 1 - 2. PRODUCT DESCRIPTION....................- 2 - 2.1 General......................- 2 - 2.2 Overview......................- 2 - 3. INSTALLATION......................- 3 - 3.1 Unpacking......................- 3 - 3.2 Installation......................- 3 - 3.3 Power Connection.....................
  • Page 3 TN-M Series Crane Scales Technical Manual 12. HANDLING INSTRUCTIONS..................- 27 -...

  • Page 4: Precautions

    TN-M series crane scale technical manual 1. PRECAUTIONS WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, CLEANING, OR SERVICING. FAILURE TO DO SO COULD RESULT IN BODILY HARM OR DAMAGE THE UNIT. CAUTION  Permit only qualified persons to service the instrument ...

  • Page 5: Product Description

    TN-M series crane scale technical manual 2. PRODUCT DESCRIPTION 2.1 General  The crane scales has Die-Casting Aluminum housing ,that are a multi-purpose and cost-saving solution for overhead weighing applications .  30mm digits LCD display with LED back light.

  • Page 6: Installation

    TN-M series crane scale technical manual 3. INSTALLATION 3.1 Unpacking When you receive the scale, inspect it to make sure that it is not damaged and that all are parts are included:  Remove the scale from the carton.  Remove the protective covering. Store the packaging and to use if you need to transport the scale later.

  • Page 7: Battery Maintenance

    TN-M series crane scale technical manual  When the scale is plugged into the mains power the internal battery will be recharged.  Verify that the AC power socket outlet is properly protected.  Under right side of the weight display there is an charging LED to indicate the status of battery charging ...

  • Page 8: Display&Keys Funtion

    TN-M series crane scale technical manual 4. DISPLAY&KEYS FUNTION 4.1 Key Board Keys Description ON/OFF ON/OFF key ,turn the scale on / off. ZERO 1)Zero key,Used to clear and zero the display. 2)Enter key. Used to enter the selected menu,sub-menu and setting .

  • Page 9: Remote Controller

    TN-M series crane scale technical manual 4.3 Remote controller Key 1 For using shift gross and net weight Key 2 For using enter sleep mode Key 3 For using enter Zero Key 4 For using tare - 6 -...

  • Page 10: Operation

    TN-M series crane scale technical manual 5. OPERATION Initial Start-up Warm-up time of 15 minutes stabilizes the measured values after switching on. 5.1 Switching on/off ON/OFF  Switch on the scale by pressing key.Display will be show the scale version and will be starting self checking.

  • Page 11: Sleep Mode

    TN-M series crane scale technical manual 5.6 Sleep Mode SLEEP  Press key to enter sleep mode in normal weighing mode, the display only show sleep indicator when in sleep mode; SLEEP  Press key again ,display will be back to normal weighing mode.

  • Page 12: Overload Records

    TN-M series crane scale technical manual 5.10 Overload Records  Please do not add item that is over the maximum capacity. When reading show“--- ol---“ and hear beeping sound, remove the item on the hook to avoid damage to the load cell.

  • Page 13: App Software Operation In Android Mobile Operating System (Optional)

    TN-M series crane scale technical manual  Search the new Bluetooth device in the PC.  Select the device. If ask password, enter 1234 If connected with Bluetooth successfully,the Bluetooth indicator in the display will be on. 5.12 APP Software Operation In Android Mobile Operating System (optional) File Name:app-release.apk...
  • Page 14 TN-M series crane scale technical manual 5.Click the icon in the right top of corner of the screen to select Bluetooth to pair with crane scale 6.If using in the first time,it need to search the device to pair with your mobile...
  • Page 15 TN-M series crane scale technical manual 5.12.2.Keys Function Keys Description Used to shift the gross weight and net weight. Used to make display back to zero. When the hook is empty, but display is not zero, press this key to make display zero. Please only press this key when stable indication on.
  • Page 16 TN-M series crane scale technical manual The weighing records will be show Tab each weighing record can see the detail weighing data for the product key ,the weighing record can be sent to PC via E-mail or other chat tools in csv.file...

  • Page 17: Wifi Operation (Optional)

    TN-M series crane scale technical manual 5.13 WIFI Operation (optional) It can set WIFI (optional) function, For settings, see the parameter F5 com > mode > WIFI>ON The following steps only for testing the WIFI communication,please as reference 1)Enter parameters to set Communication F5 com > mode > WIFI >on F5 com >...
  • Page 18 TN-M series crane scale technical manual 5) Select MODULE >WIFI to settings as follows WIFI : AP+STA AP: Enable STA:Enable DHCP:Disable 6)Select the wireless router name from the SSID list and input the wireless router password 7)Assign IP address of the scale...
  • Page 19 TN-M series crane scale technical manual 10)Open the Hyper Terminal in computer 11)Create a new connection and enter a name for the connection 12)Enter the host address and port number The host address is the IP address of scale The default port number is 9000...

  • Page 20: Parameters

    TN-M series crane scale technical manual 6. PARAMETERS 6.1 PARAMETER SETTING Enter the Menu  Turn on the scale. TARE  Press key during that start up until display will be shown P1---;  Then input password,the default password is 000;...

  • Page 21: Menu Block

    TN-M series crane scale technical manual 6.2 Menu Block Menu Description F0 CAL Calibration F1 CAP single To select the capacity 1500 3000 6000 12000 F2 SP Slow Set AD speed Fast F3 INP To show the internal counts F4 GRA Set your local gravity value.

  • Page 22: Calibration

    TN-M series crane scale technical manual 7. CALIBRATION ON/OFF 1) Press key to turn ON the Scale; TARE 2) Press key during that start up until display will be shown P1---; 3) Then input password,the default password is 000; 4) Press key to move the active digit;...

  • Page 23: Bluetooth _Wifi Protocol

    TN-M series crane scale technical manual 8. BLUETOOTH _WIFI PROTOCOL 8.1 Specifications Bluetooth output of weighing data Code : ASCII Baud rate : 600bps to 9600bps selectable 8. 2 Continuously output protocol <20> <CR> <LF> <CR> <LF> Weight value Tare value S: Stable;...

  • Page 24: Technical Data

    TN-M series crane scale technical manual 9. TECHNICAL DATA 9.1 General Specification MODEL TN-M-600 TN-M-1.5 TN-M-3 TN-M-6 TN-M-12 Maximum Capacity 600 kg 1.5t 12 t Minimum Capacity 4 kg 10 kg 20 kg 40 kg 100 kg Readability 0.2 kg 0.5 kg...

  • Page 25: Battery Specification

    TN-M series crane scale technical manual 9.2 Battery Specification Items Parameter Remarks Rated Capacity Discharge:0.2C 5200mAh cut-off voltage:2.75V Minimum Capacity 5000mAh Energy 38.48 Wh Nominal Voltage 7.4V Open Voltage 7.6V~8.2V Load Voltage ≥7.4V 10Ω AC 1KHz after standard ≤250mΩ charge...

  • Page 26: Overall Dimension

    TN-M series crane scale technical manual 9.3 Overall Dimension 600kg 1.5T (mm) 128.5 128.5 128.5 128.5 128.5 219.5 247.5 Φ19 Φ19 Φ22 Φ25.4 Φ31.8 Φ50.8 Φ50.8 Φ58 Φ68.3 Φ82.5 Φ23 Φ23 Φ26.5 Φ30 Φ36 Φ23 Φ23 Φ26.5 Φ30 Φ36 42.9 42.9...

  • Page 27: Error Codes

    TN-M series crane scale technical manual 10. ERROR CODES Error Message Description Solution Err 4 Zero setting error Zero setting range exceeded due to switching on.(4%max) Make sure platform empty. --ol-- Over range Remove the load. Re calibrate LO-BAT Low battery indicator...

  • Page 28: Exploder Drawing

    TN-M series crane scale technical manual 11. EXPLODER DRAWING Parts list Name Material SPEC Overlay Front cover Main board “ + ” round screw Carbon Steel M3*8 Seal ring Rear cover Waterproof gland Spring Washer Carbon Steel Internal hexagon screw...
  • Page 29 TN-M series crane scale technical manual Seal ring 7.4V/5200MA Li battery Battery cover “ + ” screw Carbon Steel M4*8 Internal hexagon screw Carbon Steel M6*55 Cabel gland Adaptor plug Adaptor socket Washer SUS304 Hook Carbon steel “ + ” screw...
  • Page 30 TN-M series crane scale technical manual 12. HANDLING INSTRUCTIONS Read and observe the following warnings and precautions to ensure correct and safe use of Li- ion batteries. Danger!  Do not immerse the battery in water or allow it to get wet.
