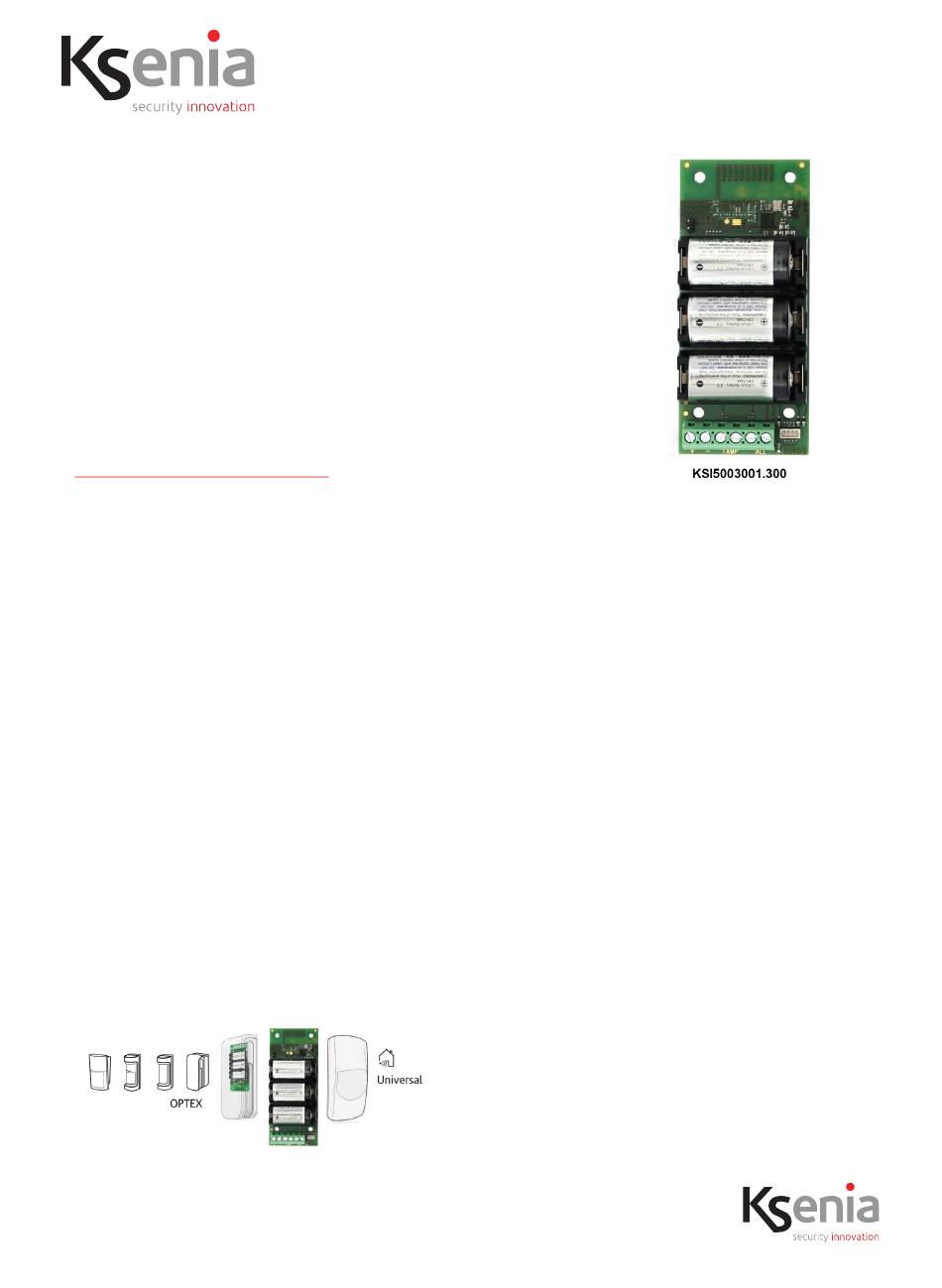

matrix
Universal Transmitter
Installation guide
INTRODUCTION

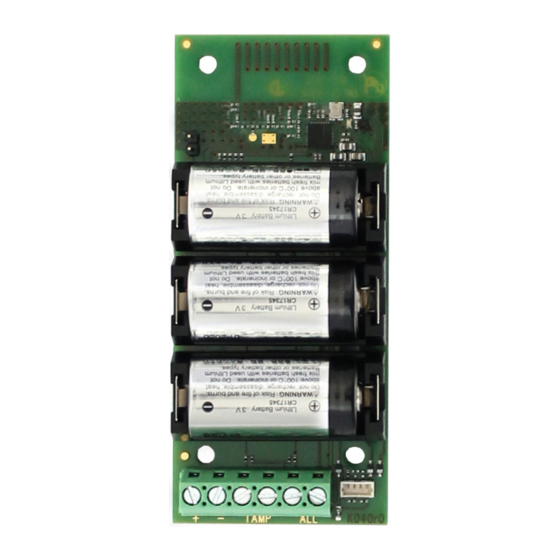

matrix module is a bi-directional universal radio interface for connecting third-party low power
consumption motion detectors to the lares 4.0 platform, at 868 MHz frequency band, and it is compatible
with OPTEX sensors series:
•
BXS (PIR or PIR+AM/ curtain coverage right and left sides);
•
VXS (PIR+AM/ PIR+AM+MW/ 90° coverage);
•
WXI (PIR/ PIR+AM/ 180° coverage right and left sides);
•
WXS (PIR+AM/ PIR+AM+MW/ 180° coverage right and left sides);
•
QXI (PIR/ PIR+MW/ 120° coverage right and left sides);
allowing their remote management (configuration data and detailed alarm signalling).
matrix directly feeds the connected motion detector with its own standard CR 123A batteries, from 1 to 3
batteries (second and third are optional) dependently on the consumption of the connected motion
detector. Through the supervision function, the control panel verifies the persistence of the radio
communication with all the wireless devices. Two dedicated inputs (alarm and sabotage) detect any
disappearance and/or sabotage of the connected detector. matrix itself has a tamper protection vibration
sensor (accelerometer), which allows, for example if it is mounted on a joint, to detect even a simple
rotation or change of position. To connect third-party motion detectors it provides a connection terminal on
board (If programmed as UNIVERSAL) and, alternatively, a serial port that is compatible with OPTEX sensors
(if programmed as OPTEX).
WARNING! OPTEX sensors series WXI, WXS, QXI are compatible with matrix device whose serial number is
equal or higher than 004000.
code R30040.110en
ed.09/2020
www.kseniasecurity.com
Advertisement
Table of Contents
Summary of Contents for Ksenia Matrix
- Page 1 (configuration data and detailed alarm signalling). matrix directly feeds the connected motion detector with its own standard CR 123A batteries, from 1 to 3 batteries (second and third are optional) dependently on the consumption of the connected motion detector.
- Page 2 (battery powered device from 1 to 3 batteries (second and third are optional) it depends on the power consumption of the connected motion detector) WARNING! DO NOT connect external power sources to matrix power – supply outputs ( on screen-printing).
- Page 3 Ksenia SecureWeb or APP Ksenia PRO; the OPTEX switch manual settings are completely avoided. WARNING! JUST in case you are installing matrix inside OPTEX series QXI, follow the instructions below. Due to the small size of the OPTEX QXI series, to allow the OPTEX tamper to function correctly and to avoid damaging the matrix or the OPTEX sensor itself, pay particular attention when installing matrix inside the case.
- Page 4 Make sure that matrix PCBA does not cover the support highlighted in the next image, the space left will be occupied by the sensor tamper. Be careful not to compress the cable when repositioning the OPTEX QXI main unit. Close the sensor cover in a way that is close-fitting.
- Page 5 -> matrix, by choosing between UNIVERSAL (for third-party motion detectors) or OPTEX (for Optex BXS, VXS, WXI, WXS, QXI motion detectors). In case of UNIVERSAL operation, the configuration is limited to general information about matrix (serial number, supervision and tamper protection).
