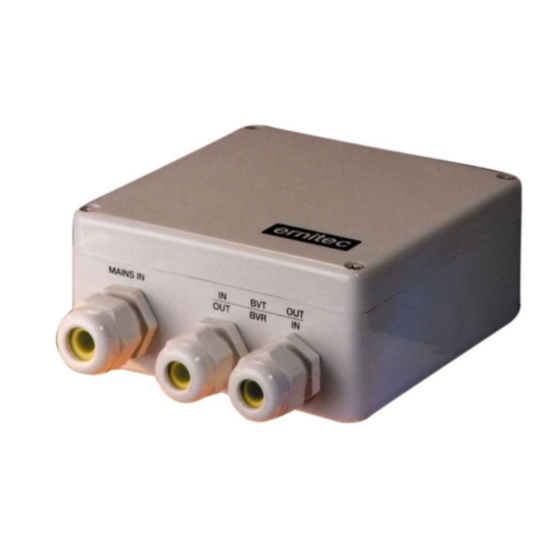

Summary of Contents for ERNITEC BVT-65
- Page 1 Manual INSTALLATION AND ADJUSTMENT INSTRUCTIONS FOR BVT-65 & BVR-65...
- Page 2 3. Adjustment The best performance is obtained by connecting a video generator to video in on the BVT-65 and an oscilloscope to video out on the BVR-65 receiver. Check that H2 line status indication (green LED) is quickly flashing. If a negative or turned over picture is displayed the twisted pair cable should be reversed at the receiver Input terminal X1.
