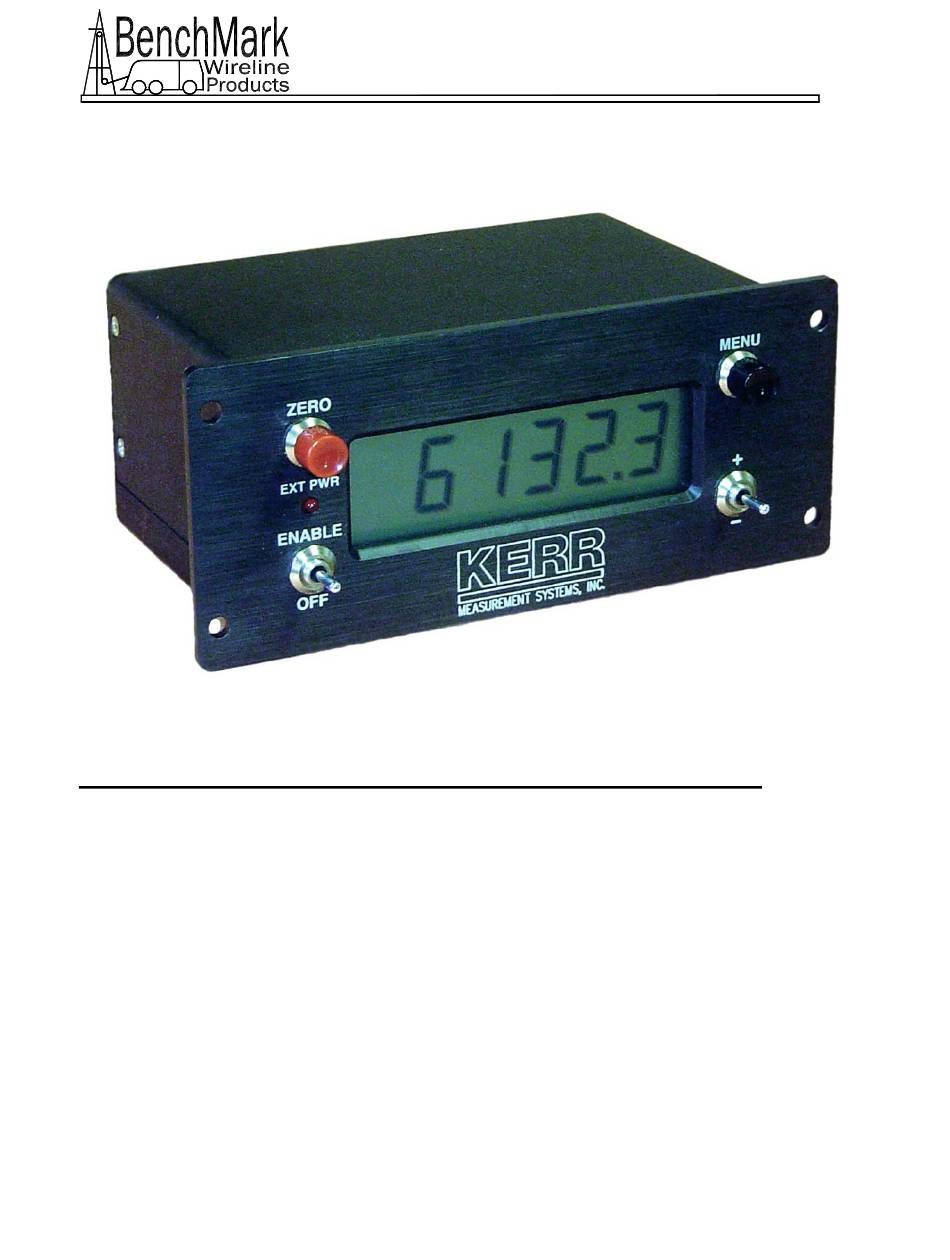

AMSL6A100 BACKUP DISPLAY PANEL
Operations and Maintenance Manual
SECTION
1.0
2.0
3.0
4.0
5.0
6.0
7.0
June-2007
36220 FM 1093
P. O. BOX 850
Simonton,Texas 77476
Phone: 281.342.6415
Fax:
281.342.4848
benchmarkwireline.com
TABLE OF CONTENTS
DESCRIPTION
GENERAL DESCRIPTION
OPERATING PROCEDURES
DESCRIPTION OF FEATURES
MENU SELECTIONS
INSTALLATION PROCEDURES
SPECIFICATIONS
PARTS LISTS AND DIAGRAMS
Rev D
Page 1 of 18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMSL6A100 and is the answer not in the manual?

Questions and answers

Summary of Contents for KERR AMSL6A100

  • Page 1 36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com AMSL6A100 BACKUP DISPLAY PANEL Operations and Maintenance Manual TABLE OF CONTENTS SECTION DESCRIPTION GENERAL DESCRIPTION OPERATING PROCEDURES DESCRIPTION OF FEATURES MENU SELECTIONS INSTALLATION PROCEDURES SPECIFICATIONS PARTS LISTS AND DIAGRAMS...
  • Page 2 36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com GENERAL DESCRIPTION The Backup Depth System is designed to be an independent depth measurement indicator for mounting inside a wireline unit. The depth is measured by a magnetic pickup mounted in the measuring head and displayed in either feet or meters at the display unit.

  • Page 3: Operating Procedures

    36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com OPERATING PROCEDURES Turn the unit on by pressing the enable switch up. If external power is applied, the unit will power on automatically. Select the appropriate settings from the menu (see section 4.0) Set the depth to the proper value by using the set depth switches or to 0 by pressing the zero switch.

  • Page 4: Description Of Features

    36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com 3.0 DESCRIPTION OF FEATURES Enable Switch switch is a center-biased three position switch. If you ENABLE push the switch down, the magnetic pickup stores the displayed value in the non-volatile memory and switches the unit off if not on external power.

  • Page 5: Menu Selections

    There are four different menus, one for each of the different type of measuring systems. 3K – Kerr AM3K Cased Hole Measuring head 5K – Kerr AM5K Open Hole / Cased Hole Measuring head SL – Kerr dual 16” Wheel Slickline Measuring head OT – Other wheel size To change the head type, press the menu button until Hd is displayed.
  • Page 6 36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com 4.1 3K MODE This mode is for a BenchMark AM3K cased hole measuring head. The available menu selections in AM3K mode are: LINE SIZE SETTINGS (LS) Select the size of the cable you will be using.
  • Page 7 36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com 4.2 5K mode No wheel size selections are available. It is set for 2’. Use the setting for any straight-line measuring device that uses a 2 foot measuring wheel.
  • Page 8 Fax: 281.342.4848 benchmarkwireline.com 4.3 SL mode This mode is used for a Kerr SHARK slickline sytem using a 4’ counter wheel. The available menu selections in SL mode are: LINE SIZE SETTINGS (LS) Select the size of the cable you will be using. This setting will adjust the wheel size to account for this size of cable.
  • Page 9 4.4 OTHER (OtH) This menu is to be used if you have a measuring device with a different wheel circumference than the standard Kerr measuring devices. No line size selections are available The available menu selections in the OTHER menu are:...

  • Page 10: Installation And Mounting

    36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com INSTALLATION AND MOUNTING INSTALLATION PROCEDURE 5.1.1 Prepare an appropriate panel cut-out with four fixing holes (refer to drawing in section 6.1) or use one of the two mounting brackets shown below (section 5.2).
  • Page 11 36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com MOUNTING KITS 5.2.1 AMS4A161 PIVOTING MOUNT 5.2.2 AMS4M110 PLATE MOUNT TOP VIEW FRONT VIEW SIDE VIEW June-2007 Rev D Page 11 of 18...

  • Page 12: Specifications

    36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com 6.0 SPECIFICATIONS Mechanical Material Aluminium, anodized Weight 1.5 lbs (.68 kg) 4 × .019 holes Mounting fixing centers: 6.19” (19.05 cm) from side, 2” (5.08 cm) from top/bottom. Environmental IP Rating 0 to + 50 °...
  • Page 13 36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com Electrical Input power Voltage 100 - 240 VAC or 12 – 24 VDC Input power frequency 50 - 60 Hz, DC Input power current 0.4 A Batteries Battery 2100 mAh...
  • Page 14 36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com Depth measurement Quadrature counts/revolution Measurement resolution 0.048 m 0.1573 ft Display resolution 0.1 m 0.1 ft Line Speed Minimum Line Speed 0 ft/min Maximum Line Speed 1200 ft/min 6.10 Power management...

  • Page 15: Parts Lists And Diagrams

    36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com 7.0 PARTS LISTS AND DIAGRAMS PARTS LISTS ALS6A100 PANEL AMS BATT BACKUP DISPLAY Part Number Description Qty Required --------------- ------------------------------ ------------ ALS6M001 PANEL FRONT BACKUP PANEL MT ALS6M002 PANEL REAR BACKUP PANEL MT ALS6M004...
  • Page 16 This is mounted with terminal A uppermost. The wiring to the magnetic pickup is pin-for-pin straight through. Function Pin Number Vsensor Channel A E Channel B C Ground Kerr P/N Description Qty Required AMS4P222 CABLE 20/4C ALPHA 25154 BLACK SHIELDED 0.28OD AM5KP057 CONN KPT06F10-6P STR PLUG...
  • Page 17 36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com INTERNAL VIEW TOP Note position of the three batteries. USE ONLY 1.2V NIMH AA 2100MAH BATTERIES WARNING DO NOT USE NON RECHARGEABLE BATTERIES AS THEY ARE LIKELY TO EXPLODE WHEN CHARGED June-2007 Rev D...
  • Page 18 36220 FM 1093 P. O. BOX 850 Simonton,Texas 77476 Phone: 281.342.6415 Fax: 281.342.4848 benchmarkwireline.com INTERNAL VIEW REAR Install a shorting jumper across pins 3 and 4 of the gray connector on the rear of the main pc board to prevent the head type from being changed.
