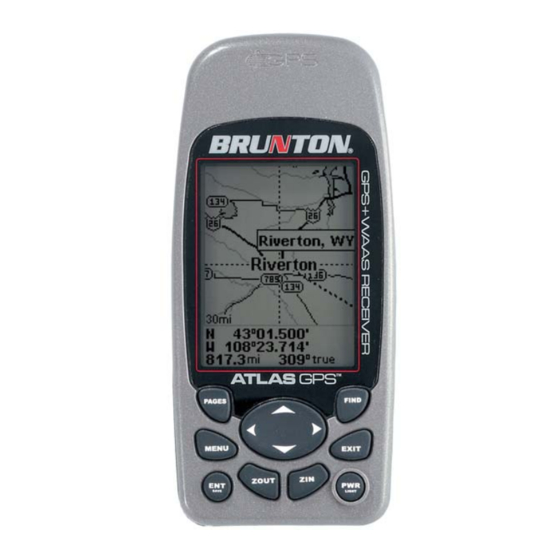

ATLAS
™
Handheld Mapping GPS Receiver

Operation Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Atlas and is the answer not in the manual?

Questions and answers

Related Manuals for Brunton Atlas

Summary of Contents for Brunton Atlas

  • Page 1: Operation Instructions

    ATLAS ™ Handheld Mapping GPS Receiver Operation Instructions...
  • Page 2 Copyright © 2003 Brunton All rights reserved. Atlas is a trademark of Brunton Brunton is a registered trademark of Brunton ® Points of Interest Data in this unit are by infoUSA, copyright  2001, All Rights Reserved. infoUSA is a trademark of infoUSA, Inc.

  • Page 3: Table Of Contents

    Table of Contents Sec. 1: Read Me First! (but if you can't wait, see page 24) ... ….7 Capabilities & Specifications... ….9 How Atlas Works ..10 Introduction to GPS and WAAS..11 How to Use this Manual: text conventions ..14 Sec.
  • Page 4 Create and Save a Trail ...57 Clear a Trail ...57 Delete a Trail ...58 Edit a Trail...58 Transferring GPS Data Files between Atlas and a Computer ...58 Transferring and loading Custom Maps from Computer to Atlas...58 Utilities ...58 Alarm Clock...58 Sun/Moon Rise &...
  • Page 5 Find Interstate Highway Exits ...88 Find Map Places ...89 Find Streets or Intersections ...91 Find Waypoints ...93 Supplemental Material Datums used by Atlas ... ….……95 FCC compliance statement ...106 Database license & Warranties ...107 How to Obtain Customer Service & Order Accessories ...110...
  • Page 6 WARNING! When a GPS unit is used in a vehicle, the vehicle operator is solely responsible for operating the vehicle in a safe manner. Vehicle operators must maintain full surveillance of all pertinent driving, boating or flying conditions at all times.

  • Page 7: Sec. 1: Read Me First! (But If You Can't Wait

    Here's how: The manual is organized into six sections. Section 1 is an introduction to the Atlas and to GPS. It tells you the basics you need to know before you can make Atlas look around and tell you where you are.
  • Page 8 Mode menus and submenus, the rest of the section contains all of Atlas's command functions, organized in alphabetical order. When you come to a menu command on the Atlas screen, you can look it up in the manual by skimming over the table of contents, just flipping through Section 3 or scanning through the command portion of Section 4.

  • Page 9: Capabilities & Specifications

    MMC memory cards for recording GPS trip details and displaying custom maps MMC slots: One inside battery compartment Background map: Built-in custom, detailed Brunton map Mapping memory: Up to 128 MB on one MMC card Position updates: Every one second Position points: 1,000 waypoints;...

  • Page 10: How Atlas Works

    First, think of your Atlas as a small but powerful computer. (But don't worry — we made Atlas so easy to use, you don't need to be a computer expert to find your way!) The unit includes a keypad and a screen with menus so you can tell Atlas what to do.

  • Page 11: Introduction To Gps And Waas

    MapCreate maps. Introduction to GPS and WAAS Well, now you know the basics of how Atlas does its work. You might be ready to jump ahead to Section 2, Installation & Accessories, on page 15, so you can install the batteries.
  • Page 12 This Manual" on page 14. But, if you want to understand the current state of satellite navigation, look over this segment describing how GPS and its new companion WAAS work together to get you where you're going. The Global Positioning System (GPS) was launched July 17, 1995 by the United States Department of Defense.
  • Page 13 Like most GPS receivers, Atlas doesn’t have a magnetic compass or any other navigation aid built inside. It relies solely on the signals from the satellites to calculate a position. Speed, direction of travel, and distance are all calculated from position information. Therefore, in order for Atlas to determine direction of travel, you must be moving and the faster, the better.

  • Page 14: How To Use This Manual: Text Conventions

    Instructions = Menu Sequences Most functions you perform with Atlas are described as a sequence of keystrokes and selecting menu commands. We've written them in a condensed manner for quick and easy reading.

  • Page 15: Section 2: Installation & Accessories

    Installation & Accessories Power The Atlas operates from AA batteries or on 3 volts DC using an optional external power cable with a cigarette lighter adapter. If the power cable is used, the Atlas automatically switches to it if the external power is greater than the battery voltage.
  • Page 16 Remove Atlas battery cover. Install the batteries according to the decal in the battery compartment, which shows the correct polarity. Point the positive pole of the upper battery to the left; point the positive pole of the bottom battery to the right.

  • Page 17: Cigarette Lighter External Power Cable Installation

    Attach external power cable to Atlas. MMC or SDC Memory Card Installation Your Atlas uses a MultiMedia Card (MMC) to store information, such as custom maps, waypoints and other GPS data. The unit can also use Secure Digital Cards (SD card or SDC) to store information.
  • Page 18 MMC. 4. Drag the MMC from the slot into the battery compartment. 5. Hold Atlas face up and give it a shake to dump the MMC into your hand or onto a work surface.

  • Page 19: External Antenna Installation

    External Antenna A GPS antenna requires a clear view of the sky for optimum reception. Inside a vehicle, your Atlas can sometimes maintain “satellite lock” while sitting on the seat beside you, but we don't recommend this for optimum performance.

  • Page 20: Vehicle Bracket Mounting System

    If these accessories are not available from your dealer, see brunton.com for more information on how to order. From left to right, DC power cable, data cable, Atlas MapCards and Case, Atlas, MMC card reader, external antenna and MapCreate™ CD-ROM.

  • Page 21: Sec. 3: Easy Mode Operation

    Advanced Mode work. Before you turn on Atlas and find where you are, it's a good idea to learn about the different keys, the three Page screens and how they all work together. But, if you just can't wait to get outside, grab the batteries and turn to the one-page Quick Reference on page 29.

  • Page 22: Power/Lights On And Off

    The tutorial lessons in this section will deal only with functions, the basic commands that make Atlas do something. Atlas will work fine for these lessons right out of the box with the factory default settings.

  • Page 23: Satellite Status Page

    Satellite Status Page This Page, shown on page 22, provides detailed information on the status of Atlas's satellite lock-on and position acquisition. No matter what page you are on, a flashing current position indicator/question mark symbol and flashing GPS data displays indicate that satellite lock has been lost and there is no position confirmed.

  • Page 24: Navigation Page

    The GPS receiver is tracking satellites that are in bold type. The receiver hasn't locked onto a satellite if the number is grayed out, therefore it isn't being used to solve the position.
  • Page 25 Navigation Page, recording a trail, traveling due north. Page looks like this when Atlas is not navigating to a waypoint , following a route, or backtracking a trail. When navigating to a waypoint, the Navigation screen looks like the one shown on page 26.

  • Page 26: Map Page

    appears on the screen as you approach the waypoint as shown on the screen below. Travel Time is the time that it will take to reach your destination at your present closing speed. Arrival Time is the local time that it will be when you arrive at the destination, based upon your present closing speed and track.
  • Page 27 available map zoom ranges, from 0.05 miles to 4,000 miles. Far left, Map Page opening screen. Center, zoomed to 100 miles and right, zoomed to 6 miles. Over Zoomed means you have reached the detail limits in an area covered only by the basic background map. Zooming in any closer will reveal no more map details because a high-detail custom map has not been loaded on the MMC for this area.
  • Page 28 The following page contains a 12-step quick reference for Easy Mode operation. If you don't want to carry the manual with you as you practice with Atlas, you might consider photocopying this quick reference page and tucking it into your pocket.

  • Page 29: Easy Mode Quick Reference

    1. Install two AA batteries and an MMC card in the battery compartment on back of case. (See installation details on page 11.) 2. To turn on Atlas, press and release 3. Opening screen displays map of North America at the 4,000 mile zoom range.

  • Page 30: Find Your Current Position

    Find Your Current Position Finding your current position is as simple as turning the Atlas on. Under clear sky conditions, the unit automatically searches for satellites and calculates its position in approximately one minute or less. NOTE: "Clear sky" means open sky, unobstructed by terrain, dense foliage or structures.

  • Page 31: Selecting Any Map Item With The Cursor

    Press → to HAINS 3. Atlas says it is calculating, then a list of restaurants appears, with the closest at the top of the list, and the farthest at the bottom of the list. The nearest is highlighted.
  • Page 32 If you wish, you could scroll ↑ or ↓ here to select another restaurant, but for now we will just accept the nearest one. Press ENT. 5. The POI information screen appears. (This is how you can use Atlas as a business phone directory!) If you wanted to navigate there, you could press Enter, since the Go To command is highlighted.

  • Page 33: Set Home Waypoint

    NOTE: Search works from mapping and POI data loaded in Atlas. If you do not have a high-detailed custom map (containing POI data) for the area you are searching loaded on the MMC, you may not find anything.

  • Page 34: Navigate Back Home

    |↓ to MENU ANCEL Atlas stops showing navigation information. Set Man Overboard (MOB) Waypoint One of boating's most terrifying events is having a friend or family member fall overboard. This situation can be deadly on any body of water — fresh or salt.

  • Page 35: Navigate To Cursor Position On Map

    Navigate to cursor. In this example, the cursor has selected the town of Oologah, Oklahoma. 3. Press and Atlas will begin navigating to the cursor location. MENU The Map Page will display a dotted line from your current position to the cursor position.

  • Page 36: Navigate To A Point Of Interest

    ANCEL AVIGATION navigation information. Navigate to a Point of Interest Atlas can navigate to any Point of Interest (POI) you can look up with the key. (For help with 's searching capabilities, see the entry on Searching FIND earlier in this section, or turn to Section 6, Searching, for detailed instructions.) After you have looked up an item with the find command, use the ←...

  • Page 37: Displaying A Saved Trail

    |↓ to MENU AVIGATE RAIL 2. Now, begin moving and follow your Atlas. NOTE: If you are already located at or near the beginning of your back trail, the arrival alarm will go off as soon as you hit Enter. Just press to clear the alarm and proceed.

  • Page 38: Clearing Or Erasing A Trail

    (straight ahead.) At right, driver has reached trail point 5 and must turn south to follow the trail. Arrival alarm goes off and bearing arrow swings around to say turn right (south), toward the next waypoint, trail point 6. Atlas now shows navigation information to point 6, which is 2 miles away.

  • Page 39: Transfer Custom Maps & Gps Data Files

    WARNING: Clearing a trail will erase the trail from Atlas's memory. You will not be able to backtrack to that trail head if the trail is erased. If you need to preserve the trail, switch to Advanced Mode and use the instructions in Section 4 for Creating and Saving a Trail.

  • Page 40: Switch To Advanced Mode

    3. Saving: To accept the default name "Data" for the GPS Data File, press ↓ to . If you wish to rename the file (as in the example below), press to activate the selection box. Press ↑ or ↓ to change the first character, then press →...

  • Page 41: Switch Back To Easy Mode From Advanced Mode

    Switch Back to Easy Mode from Advanced Mode To leave Advanced Mode and switch back to Easy Mode: 1. Press |↓ to MENU MENU 2. Unit asks "Are you sure you want to turn on Easy Mode?" press ←| and the unit switches to Easy Mode. Section 4: Advanced Mode Operation Keypad...

  • Page 42: Power/Lights On And Off

    Atlas do something. Atlas will work fine for these instructions right out of the box with the factory default settings. But, if you want to learn about the various options, see Section 5, System Setup and GPS Setup Options.

  • Page 43: Satellite Status Page

    (Pressing the Menu key twice takes you to the Main Menu.) Satellite Status Page This page provides detailed information on the status of Atlas's satellite lock-on and position acquisition. No matter what page you are on, a flashing current position indicator/question mark symbol and flashing GPS data displays indicate that satellite lock has been lost and there is no position confirmed.

  • Page 44: Position Menu

    Position Page, left, Position Menu, right. Position Menu The Position Menu allows you to set your own coordinate system, change your map datum or even set your local time. Navigation Page This screen has a azimuth ring that not only shows your direction of travel, but also the direction to a recalled waypoint.

  • Page 45: Navigation Menu

    Refer to Section 2, Easy Mode Operation, for further explanation and more illustrations of the Map Page. 1. To get to Map Page: Map page is the default when Atlas is turned on. To switch from another page to the Map Page, press page you want appears.

  • Page 46: Map Menu

    Map Page, left, Map Menu, right. Map Menu The map menu has many options. The map menu allow you to find distances, change the orientation of your map, view map data, and other helpful map functions. Moving Around the Map: Zoom & Cursor Arrow Keys The map is presented from a bird's-eye view perspective.

  • Page 47: Find Your Current Position

    EXIT Find Your Current Position Finding your current position is as simple as turning Atlas on. Under clear sky conditions, the unit automatically searches for satellites and calculates its position in approximately one minute or less.

  • Page 48: Create An Icon

    with waypoints.( But, you can use the map cursor and navigate to any icon on the map.) You can create an icon at the cursor position on the map, or at your current position while you are navigating. Create Icon on Map 1.

  • Page 49: Load Gps Data Files From An Mmc

    2. The Transfer My Data menu includes a message which tells you if an MMC is present or not. If no MMC is present, you must first insert a card into Atlas in order to activate the Load or Save commands.

  • Page 50: Navigate

    Navigate Navigation is one of the most powerful reasons for owning an Atlas. With the navigation options available you can get accurate information about where you want to go, how to get there, how long it will take, and other useful trip information.

  • Page 51: To Point Of Interest

    Navigate a Trail 1. Press |↓ to and a screen similar to the one below MENU MENU RAILS appears. Trails Menu, Advanced Mode. command is automatically and Atlas , or to look by . For this box by pressing and the waypoint...

  • Page 52: To Waypoint

    2. Press ↓ then use ↓ or ↑ to select a trail to navigate. 3. With the trail name highlighted, press 4. Wait while Atlas creates a route from the trail. When the progress message disappears, the unit displays a trail information screen, with the command highlighted in the top command box.
  • Page 53 GPS Data File (file format *.usr). Copy the GPS Data File to an MMC and insert the MMC in Atlas. (See Section 2 for instructions on installing MMCs. To load the GPS Data File into Atlas memory, see the entry on Transferring GPS Data Files between Atlas and a Computer in this section.)

  • Page 54: Delete A Route

    MENU YSTEM ETUP 2. The Transfer My Data menu includes a message which tells you if an MMC is present. If no MMC is present, you must first insert a card into Atlas in order . With the AVIGATE EXIT...

  • Page 55: Searching

    OTELS OTELS 3. Atlas says it is calculating, then a list of hotels and motels appears, with the closest at the top of the list, and the farthest at the bottom of the list. The nearest is highlighted. Find Map Places Menu, left; Category Selection menu, center; and list of the nearest motels, right.
  • Page 56 5. The POI information screen appears. (This is makes Atlas handy as a business phone directory!) If you wanted to navigate there, you could press Enter, since the Go To command is highlighted. But we just want to see it on the map, so press →...

  • Page 57: Switch To Easy Mode

    Advanced Mode. Trails A trail, or plot trail, is a string of position points plotted by Atlas as you travel. It's a travel history, a record of the path you have taken. Trails are useful for repeating a journey along the same track.

  • Page 58: Delete A Trail

    Transferring GPS Data Files Between Atlas and a Computer To copy GPS Data Files from Atlas's memory to an MMC, see the entry in this section on Save GPS Data Files to an MMC. To copy GPS Data Files from an MMC into Atlas's memory, see the entry in this section on Load GPS Data Files From an MMC.

  • Page 59: Sun/Moon Rise & Set Calculator

    Sun/Moon Rise & Set Calculator To get to the Sun/Moon menu: press MENU Trip Calculator To get to the Calculator menu: press MENU ALCULATOR Trip Down Timer To get to the Down Timer menu: press IMER Trip UP Timer To get to the Up Timer menu: press MENU IMER Waypoints...

  • Page 60: Delete A Waypoint

    Selecting a Waypoint To select a waypoint on the map (for navigating to, for editing, etc.,) use the arrow keys and center the cursor over the waypoint. A highlighted halo will appear around the waypoint. Delete a Waypoint To delete a waypoint: press |↓...

  • Page 61: Section 5: System & Gps Setup Options

    Section 5: System & GPS Setup Options Alarms This unit has several GPS alarms. The factory default setting has all the alarms turned on. You can set an arrival alarm to flash a warning message and sound a tone when you cross a preset distance from a waypoint. For example, if you have the arrival alarm set to .1 mile, then the alarm will flash a message when you...

  • Page 62: Auto Satellite Search

    It then searches for only those satellites. When your GPS receiver is turned on for the first time, it doesn't know what your position or elevation (altitude) is. It does know the current UTC time and date since these were programmed into it at the factory and an internal clock keeps the time while the unit is turned off.

  • Page 63: Check Mmc Files & Storage Space

    Main Menu, left, MMC File Browser, center & right. COM Port Configuration Atlas has one NMEA 0183 version 2.0 compatible communication ports, or com port for short. The Com Port Menu, which is accessed from the System Setup Menu in Advanced Mode, allows you to configure the communications port to send data to another electronic device, such as an autopilot.

  • Page 64: Coordinate System Selection

    Menus for changing Com Port settings. For connectors and wiring information for another device, contact Brunton; phone numbers are in the back of this manual. To set COM Port Configuration: 1. Press |↓ to MENU MENU YSTEM ETUP 2. Press ↓ to...

  • Page 65: Map Fix

    UTM's are marked on USGS topographic charts. This system divides the Earth into 60 zones, each 6 degrees wide in longitude. British, Irish, Finnish, German, New Zealand, Swedish, Swiss, Taiwan, and Greek grid systems are the national coordinate system used only in their respective countries.
  • Page 66 1:24000. Press and the unit returns to the Configure EXIT Map Fix screen. Configure a map fix so Atlas can find your position on a printed chart or topographical map. Press ↓ to |ENT|ENT (M ELECT...

  • Page 67: Customize Page Displays

    (turn off.) After all options are set, press display. GPS Simulator The GPS simulator lets you use the unit as if you were outdoors navigating somewhere. You can set the starting location in latitude/longitude (Starting Position) or from a stored waypoint location (Select Starting Waypoint). You can steer your position on the map by using the arrow keys (Steer With Arrows) or by setting the track and speed in the boxes provided on simulator screen.

  • Page 68: Map Auto Zoom

    This menu lets you turn the map off, if desired, which turns the map screen into a GPS plotter; turn off or on the pop-up map info boxes; draw the map boundaries or boxes around the areas of detail; or fill land areas with gray. You can also turn on or off Map Overlays, which display latitude and longitude grid lines or range rings on the map.

  • Page 69: Show Map Data

    Map Menu, left, Map Data Menu, right. Show Map Data Press |↓ to . Press MENU and uncheck it (turn off.) After the option is set, press display. Pop-up Map Info . Press ↓ to Press |↓ to MENU highlighted, press to check it (turn on) and uncheck it (turn off.) After the option is set, press to return to the page display.

  • Page 70: Map Detail Category Selection

    All datums are named. The GPS system is based on the WGS-84 datum, which covers the entire world. Other datums may also cover the entire world, or just a small portion of it.

  • Page 71: Map Orientation

    Map Menu, left, Map Categories Menu, right. Map Orientation This can only be changed in Advanced Mode. From the , press . Press ↓ or ↑ to select an orientation option. |↓ to MENU RIENTATION With the option highlighted, press to check it (turn on) and uncheck it (turn off.) After the option is set, press to return to the page display.

  • Page 72: Pop-Up Help

    Map Menu in Advanced Mode. Power Saving Atlas contains a battery capacity indicator, and will also flash low battery warning messages when battery power declines to a certain level. When plugged into the DC cigarette lighter adapter, the power indicator displays the "External Power"...

  • Page 73: Stop Gps Engine

    Even if you do carry a couple of spare sets of batteries, remember: a prudent navigator never depends on only one source of navigation information. A good map and Brunton compass are important companions for you and your Atlas.

  • Page 74: Use Indoors

    To turn off the GPS engine and save power, press Use Indoors If you don't want to wait for Atlas to prompt you to switch to the inside setting, you can manually switch to indoor operation in Advanced Mode: 1.

  • Page 75: Require Waas

    Reset Options Menu, right. Require WAAS You can force Atlas to require WAAS for reporting a valid position. (The default setting, off, uses WAAS automatically, but doesn't require it to yield a position.) Here's how to turn it on and off in Advanced Mode.

  • Page 76: Screen Contrast & Brightness

    Screen Contrast and Brightness The adjustments work the same in both Easy and Advanced Mode, but you access the command differently in each mode: CREEN In Easy Mode, you first press |↓ MENU to S CREEN In Advanced Mode, you first press MENU MENU Once in the Screen menu:...
  • Page 77 Display Mode menu. To adjust the display's back light delay options: 1. Press ↓ to |press ↑ or ↓ to select mode| EXIT IGHT ELAY 2. To leave screen settings and return to the last page displayed, press EXIT EXIT Light Delay menu.

  • Page 78: Set Local Time

    The unit requires the local time and date for most efficient satellite lock-on. That information tells Atlas where in the sky to start looking for satellites. The time and date are also saved when a waypoint is created. The adjustments work the...

  • Page 79: Software Version Information

    You can find out what software version is running in your Atlas by using the Software Info command. Software Info command: left, Easy Mode; center Advanced. At right, the Software Info screen.

  • Page 80: Track Smoothing

    Sounds command: left, Easy Mode; center Advanced. At right, the Sounds menu. Once in the Sounds menu: To set Key Sounds: With the option highlighted, press on) and uncheck it (turn off.) After the option is set, press the page display. To set Alarm Sounds: Press ↓...

  • Page 81: Trail Options

    Trail Options There are several options you can use with trails. Some affect all trails, other options can be applied to a particular trail. You can change the way trails are updated, you can display or hide trails, make them flash on the screen or not flash, create a new trail, delete a trail, etc.

  • Page 82: Update Trail Option

    Update Trail Option This menu lets you change the way the trail updates occur. Trail Options menu. WARNING: If you uncheck the Update Trail option, automatic trail creation and recording will be turned off in both Advanced and Easy modes, and you must turn it back on to record trails.

  • Page 83: Trail Update Rate (Time, Distance)

    Trail menu. The name, maximum number of points in the trail, activity, and visibility are all changed on this screen. The Active setting determines whether or not Atlas is recording new points for a particular trail. Press ↓ or ↑ to highlight the section you wish to change, then press to erase this menu.

  • Page 84: Units Of Measure

    Units of Measure This menu (shown below) sets the speed and distance (statute or nautical miles, meters), depth (feet, fathoms, or meters), temperature (degrees Fahrenheit or Celsius) and heading (true or magnetic) units. To change the units: , you first press |↓...

  • Page 85: Sec. 6: Searching

    Easy Mode Find menu, left; Advanced Mode Find menu, right. NOTE: You can search for items after Atlas has acquired a position, or while using Atlas in the indoor mode. Distance and bearing to the selected item will be calculated from Atlas's current position, or the last known position if operating indoors.

  • Page 86: Find Addresses

    Find Addresses 1. Press |↓ to FIND DDRESSES 2. Press to search in the Address field. Find Address Menu. 3. Enter a portion of the name until you see it appear in the list below, then hit ENT to jump to the list. Then Use ↑ or ↓ to highlight and select it from the list. (To enter an address number, press ↓...

  • Page 87: Find Any Item Selected By Map Cursor

    NOTE: It is recommended that you not enter a city name unless the list you are given is to large when searching without it. Atlas can search quicker without a city and you save time by not entering one in.

  • Page 88: Find Interstate Highway Exits

    1. Press FIND ENT. The Find Menu. Find Interstate Highway Exits 1. Press |↓ to FIND IGHWAY XITS Easy Mode Find menu, left; Advanced Mode Find menu, right. 2. First select a highway by pressing . There out the highway in the top selection box. Press ↑ or ↓ to change the first letter, then press →...

  • Page 89: Find Map Places

    2. Once you have selected a highway you can then select an exit by pressing ↓ the press ↓ or ↑ until you find the exit then press ENT. Selected exit. 3. In the Exit information screen you have two choices. A. Press ENT to navigate or "go to"...
  • Page 90 2. Press ↓ or ↑ to select a POI category then press ENT. You will be given two options; Search by nearest or by name. NOTE: To narrow your search press → to select a subcategory before pressing ENT. Map Places category menu. 3.

  • Page 91: Find Streets Or Intersections

    Find by name option, left, Find by name menu, right. 4. You are then shown the POI's information screen. You can choose to "Go To" the POI by pressing ENT or find it on the map by pressing ↓|ENT. "Go To" POI option, left, "Find on Map" POI option, right. Find Streets or Intersections 1.
  • Page 92 street in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press ENT|ENT. B. Jump down to the lower selection list by pressing ENT, then press ↓ or ↑ to select a street from the list, then press ENT.

  • Page 93: Find Waypoints

    Find intersection, left, and "Working" menu, center, Intersection list, right. Find Waypoints (Advanced Mode only) 1. Press FIND 2. If searching for the Nearest waypoint, press . If searching for a waypoint By Name, press ↓ to |ENT Find menu, left, and Find By nearest, center, Find by name, right.
  • Page 94 3. If you're looking for nearest, Atlas says it is calculating, then a list of waypoints appears. The closest is highlighted at the top of the list and the farthest at the bottom of the waypoint information screen appears. T the list.

  • Page 95: Datums Used By Atlas

    Datums Used by Atlas WGS 1984 Default Adindan "Mean for Ethiopia, Sudan" Adindan Burkina Faso Adindan Cameroon Adindan Ethiopia Adindan Mali Adindan Senegal Adindan Sudan Afgooye Somalia Ain el Abd 1970 Bahrain Ain el Abd 1970 Saudi Arabia Anna 1 Astro 1965 Cocos Islands Antigua Island Astro 1943;...
  • Page 96 Bissau - Guinea-Bissau Bogota Observatory - Colombia Bukit Rimpah - Indonesia (Bangka & Belitung Islands) Camp Area Astro - Antarctica (McMurdo Camp Area) Campo Inchauspe - Argentina Canton Astro 1966 - Phoenix Islands Cape - South Africa "Cape Canaveral - Bahamas, Florida" Carthage - Tunisia Switzerland Chatham Island Astro 1971;...
  • Page 97 Ireland ISTS 061 Astro 1968 South Georgia Islands ISTS 073 Astro 1969 Diego Garcia Johnston Island 1961 Johnston Island Kandawala Sri Lanka Kerguelen Island 1949 Kerguelen Island Kertau 1948 West Malaysia & Singapore Kusaie Astro 1951 Caroline Islands L.C. 5 Astro 1961 Cayman Brac Island Leigon Ghana...
  • Page 98 North American 1927 Mean for Canada North American 1927 Mean for CONUS (Continental United States) North American 1927 "Mean for CONUS (East of Mississippi River) including Louisiana, Missouri, Minnesota" North American 1927 Mean for CONUS (West of Mississippi River) North American 1927 Alaska North American 1927 Bahamas (Except San Salvador Island)
  • Page 99 Oman Oman Ordinance Survey "Great Britain 1936 - Mean for England, Isle of Man, Scotland, Shetland Islands, Wales" Ordinance Survey Great Britain 1936 - England Ordinance Survey "Great Britain 1936 - England, Isle of Man, Wales" Ordinance Survey "Great Britain 1936 - Scotland, Shetland Islands" Ordinance Survey Great Britain 1936 - Wales Pico de las Nieves...
  • Page 100 Peru South American 1969 Trinidad & Tobago South American 1969 Venezuela South Asia Singapore Suriname Tananarive Observatory 1925; Madagascar Timbalai 1948 "Brunei, East Malaysia (Sabah, Sarawak)" Tokyo "Mean for Japan, Korea, Okinawa" Tokyo Japan Tokyo Korea Tokyo Okinawa Tristan Astro 1968 Tristan da Cunha Viti Levu 1916 Fiji (Viti Levu Island)

  • Page 101: Fcc Compliance

    This device complies with Part 15 of the U.S. Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 102 THIS IS A LEGAL AGREEMENT BETWEEN THE END-USER WHO FIRST PURCHASES THIS PRODUCT AS A CONSUMER ITEM FOR PERSONAL, FAMILY, OR HOUSEHOLD USE ("YOU") AND BRUNTON, THE MANUFACTURER OF THIS PRODUCT ("WE", "OUR", OR "US"). USING THE PRODUCT ACCOMPANIED BY THIS LICENSE AGREEMENT CONSTITUTES ACCEPTANCE OF THESE TERMS AND CONDITIONS.

  • Page 103: Databases Limited Warranty

    DATABASES LIMITED WARRANTY "We", "our", or "us" refers to The Brunton Co., the manufacturer of this product. "You" or "your" refers to the first person who purchases the product as a consumer item for personal, family, or household use. The Databases Limited Warranty applies to the one or more databases that your product may contain.
  • Page 104 BRUNTON FULL ONE-YEAR WARRANTY "We," "our," or "us" refers to The BRUNTON Co., the manufacturer of this product. "You" or "your" refers to the first person who purchases this product as a consumer item for personal, family or household use.

  • Page 105: How To Obtain Service

    …in the USA: We back your investment in quality products with quick, expert service and genuine Brunton parts. If you're in the United States and you have technical, return or repair questions, please contact the Factory Customer Service Department. Before any product can be returned, you must call customer service to determine if a return is necessary.

  • Page 106: Accessory Ordering Information For All Countries

    To locate a Brunton dealer near you, visit our web site at www.brunton.com and click on Info and then click Contact or you can consult your telephone directory for listings.

  • Page 107: Database License & Warranties

    Notes...
