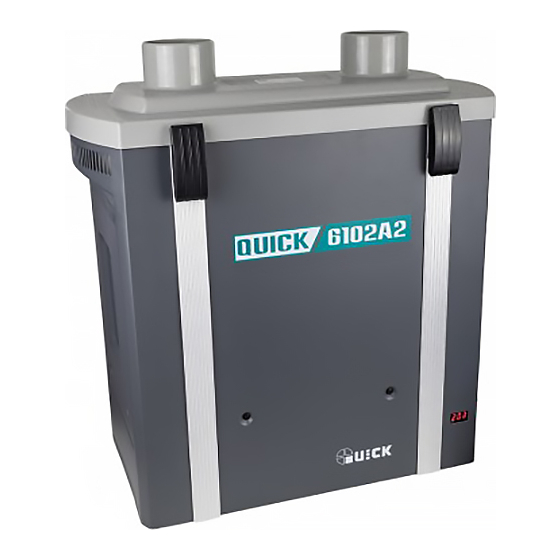

  • Page 1 QUICK6102A2 Fume Purifying & Filtering System Instruction Manual...
  • Page 2 Thank you for purchasing our equipment, please read this manual carefully before using it make sure you understand its capabilities and limitations. Keep this manual handy for future reference.

  • Page 3: Table Of Contents

    Content Chapter 1 Safety instruction ................5 Chapter 2 Introduction ................... 5 Chapter3 Feature................... 6 Chapter 4 Technical data ................7 Chapter 5 Operation description ..............7 5.1 Turn ON/OFF Procedure ............... 8 5.1.1 Turn ON Procedure ................. 8 5.1.2 Turn OFF Procedure ............... 8 5.2 Access Menu ..................
  • Page 4 6.1 Alarm Message ................... 15 6.2 Parts maintenance and changeable............ 17 6.3 Part Name ................... 18...

  • Page 5: Chapter 1 Safety Instruction

     Regularly inspect and maintain will increase durability and performance.  Use original spare parts from QUICK to replace defective ones.  Do not use or store this product where children can reach.

  • Page 6: Chapter3 Feature

    powders for prolonging the main filter’s life. The HEPA cleans the gas and powders filtering from the pre-filter and then output them to the gas filter, which with the carbon and other chemical combination, filters off the deleterious substance and then outputs the clean air. Hasp button Top component Handle box...

  • Page 7: Chapter 4 Technical Data

    Chapter 4 Technical data Item Data ★100-240V 50/60Hz Voltage Power consumption 250W Arm number System Airflow(with filter component) 2*100m³/h Filtering Efficiency (0.3um) 99.97% φ75mm×1500mm Arm dimension Stationary Pressure 2400Pa ≤65dB Noise Dimension 470mm×230mm×500mm Weight 15.5Kg ★ Note: Ensure that your power supply data agrees with the information on the nameplate of the machine! Chapter 5 Operation description Warn:...

  • Page 8: Turn On/Off Procedure

    Note: ●The hasp must be buttoned. 5.1 Turn ON/OFF Procedure 5.1.1 Turn ON Procedure 1. Connect 220V AC power line into power socket. 2. Connect handle box line into it’s socket. 3. Turn on the power switch after connect, the unit is in ON states when it is powered on.
  • Page 9 Figure 5-2-1 Figure 5-2-2 Press “SYS” key to enter into Password menu, see figure 5-2-3. Figure 5-2-3 The default password is 000, press “SET” key to confirm after enter password. Press the “△” key once to increase the value by one digit, press and hold it to continuously increase.

  • Page 10: Set Menu

    the cursor to right. 5.3 Set menu Figure 5-3-1 The set menu will opens automatically when you enter the right password, see figure 5-3-1. User can press “△or▽” key to select required item, and press “SET” key to access menu. A5.3.1 P-Filter Flow Menu Figure5-3-1-1 1.

  • Page 11: M-Filter Flow Menu

    ◁ ▷ 2. Press “ ”or “ ”key to adjust the P-Filter limit volume, the range is 0-999km³. 3. Press “▽” key to move the cursor to the Clear indicator and press “△or▽” to select. 4. Press “SET” key two times to save and press “BACK” to return. NOTE: Only “YES”...

  • Page 12: C-Filter Flow Menu

    5.3.3 C-Filter Flow Menu Figure5-3-3-1 1. In the C-Filter Flow Menu (see Figure5-3-3-1), user press “△or▽”key to move cursor to required item. ◁ ▷ 2. Press “ ” or “ ”key to adjust the C-Filter limit volume, the range is 0-999km³.

  • Page 13: Pipe Diameter Menu

    5.3.4 Pipe Diameter Menu Figure5-3-4-1 1. In the Pipe Diameter Menu (see Figure5-3-4-1), user press “△or▽”key to select pipe diameter. 2. Press “SET” key two times to save and press “BACK” to return. NOTE: Only “75” and “25” two pipe diameter supplied! 5.3.5 Communication Menu Figure5-3-5-1 ◁...

  • Page 14: Language Menu

    2. Press “△or▽”key to select address, the address range is 01-99 and the default address is01. 3. Press “▽” key to move the cursor to the Clear indicator and press “△or▽” to select baud rate, the baud rate is 9600,19200,38400 and 115200, the default baud rate is 38400.

  • Page 15: Changing Password Menu

    5.3.7 Changing Password Menu Figure 5-3-7-1 1. In the Password menu(see Figure 5-3-7-1), press “△or▽”key to adjust number. ◁ ▷ 2. Press “ ” or “ ”key to move the cursor to required digit, 3. Press “SET” key to confirm after entering new password once. 4.
  • Page 16 Figure 6-1-1 It indicates the brushless DC motor error. Solution method: ① Turn off the unit and plug the power cord. ② Remove the top component, check the filter and air inlet for dirt. NOTE: If has, please remove it. ③...
  • Page 17 It indicates the filter exceeds preset flow, please remove the filter and put a new one. Solution method: ① Turn off the unit and plug the power cord. ② Remove the top component. ③ Remove the dirt from net. ④ Remove the top seal rubber strip and set side. ⑤...
  • Page 18 6.3 Part Name Parts name: 1: Hasp button 2：Unit case 3：Bottom seal rubber strip 4：Chemical filter (C-Filter) 5：Medium filter (M-Filter) 6：Primary filter (P-Filter) 7：Top seal rubber strip 8：Net for isolation dirt 9：Top component...
  • Page 20 QUICK INTELLIGENT EQUIPMENT CO., LTD. ADD: NO.11, FengXiang Road, Wujin High-Tech Industrial Development Zone, Jiangsu, China TEL: 86-519-86225678 FAX: 86-519-86558599 POSTCODE: 213167 WEBSITE: www.quick-global.com...
