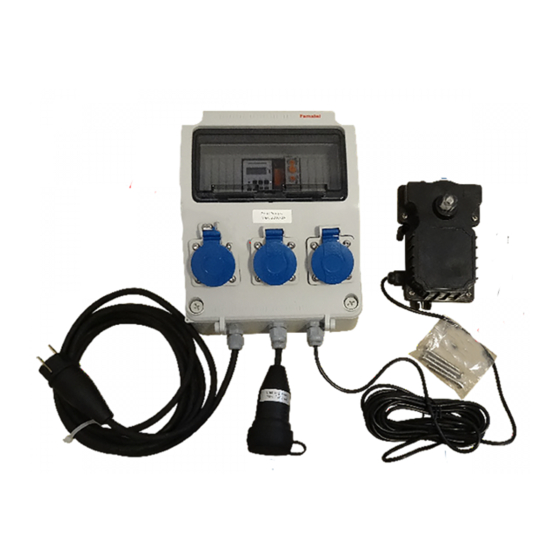

- Page 1 SuperBead Automatic The SuperBead automatic: 3 x Sockets for the pondpump(s) and UV Lamp(s) Max. 8A/250VAC Plug for power electronics 16A/250VAC Socket for cleaning pump Max. 8A/250VAC Cable for 3 way valve motor Screws for mounting 3 way valve motor...
- Page 2 Placing the engine on the 3 way valve Verwijder de kunststof schroef van de hendel Remove the plastic screw on the handle Now you see on the 3 way valve 4 notches (A) You see in the motor 4 pins (B) Now place the engine on the 3-way valve NOTE smallest pin must fall into...
- Page 3 SuperBead Automatic What do the various LEDs ON The flush is ON OFF The rinsing is OFF ON Flush pump is ON OFF The flushing pump is OFF ON The pond pump delay is turned ON (1 minute) OFF The pond pump delay STANDBY ON The pond pump is turned OFF (1 minute)
- Page 4 Setting the timer 1. Reset first, pressing the timer by R To adjust the time hold C +, push W+(days) H+ (hours) and M+(minutes) Set flush time Press 1 time on the clock symbol, now you see ON 1 left bottom. Now set with the buttons W + (days) H + (hour) and M + (minutes). Press 1 x on the clock symbol, now you see OFF 1 left bottom.
