Di-soric SLB4-153 Quick Start Manual

SLB4-153

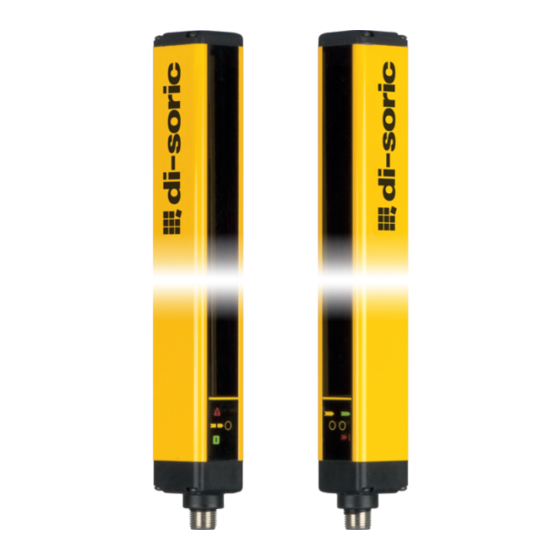

Safety light curtain
Highest safety level
Resolution for hand protection
Protection area until end of profile
Parameterisation via connecting cable
Easy and fast startup
Automatic Start/Restart
For Modular Safety Controller / safety relays
Unshielded connecting cables to 100 m
High protection class
Sender 5-polig 0 V DC
Emitter 5 poles
4
RANGE 1
BK
24 V DC
Safety instructions
All the installation, connection and safety regulations, as per our technical
information, have to be strictly adhered to.
The set-up of the products have to be made by skilled staff, only.
Repair exclusively made by di-soric.
TECHNICAL INFORMATION (typ.)
Safety level
Security level
Total height (A)
Protective field height (B)
m
Mounting
Number of beams
Emitted light
Safey output
Service voltage
Operating distance
Resolution
Inverse polarity protection
Display
Start / restart
Short-circuit protection
Reaction time
Readiness delay
Ambient temperature
Protection class
Protection degree
Casing material
di-soric GmbH & Co. KG Steinbeisstraße 6
Fon + 49 (0) 71 81 / 98 79 - 0 Fax + 49 (0) 71 81 / 98 79 - 179
Empfänger 5-polig
24 V DC
BU Receiver 5 poles
BN
5
PE
3 1
GY
2 2
RANGE 0 OSSD1
WH WH
1 3
0 V DC
BN BU
DE-73660 Urbach
info@di-soric.com
E S P E
5 PE
GY
4
OSSD2
BK
+20°C, 24 V DC
Type 4: IEC/TS 61496-2 SIL 3-SILCL 3 IEC 61506-IEC 62061 PL
e-Kat. 4 ISO 13849-1
Hand detection
213 mm
160 mm
Basic
T-shaped slot (Backside), / Holder SFB E 180 (optional)
8
Infrared, 950 nm
PNP (2x), 400 mA / 24 V DC
19,2 ... 28,8 V DC
4 m (Low Range) / 12 m (High Range)
30 mm
Yes
LEDs for light curtain´s status and diagnostic
Automatic
yes
4 ms
< 2 s
-10 ... +55 °C
IP 65, IP 67
III, operation on protective low voltage
Aluminium
www.di-soric.com © di-soric | Subject to modifications | 08/07/14 | Page 1 (2)
