Aprimatic DM41 Quick Start Manual

Aprimatic DM41 Quick Start Manual

Bidirectional opening sensor for automatic doors

Advertisement

Quick Links

Other use of the device is outside the permitted purpose and can not be
guaranteed by the manufacturer. The manufacturer cannot be held responsible
for incorrect installations or inappropriate adjustments of the sensor.

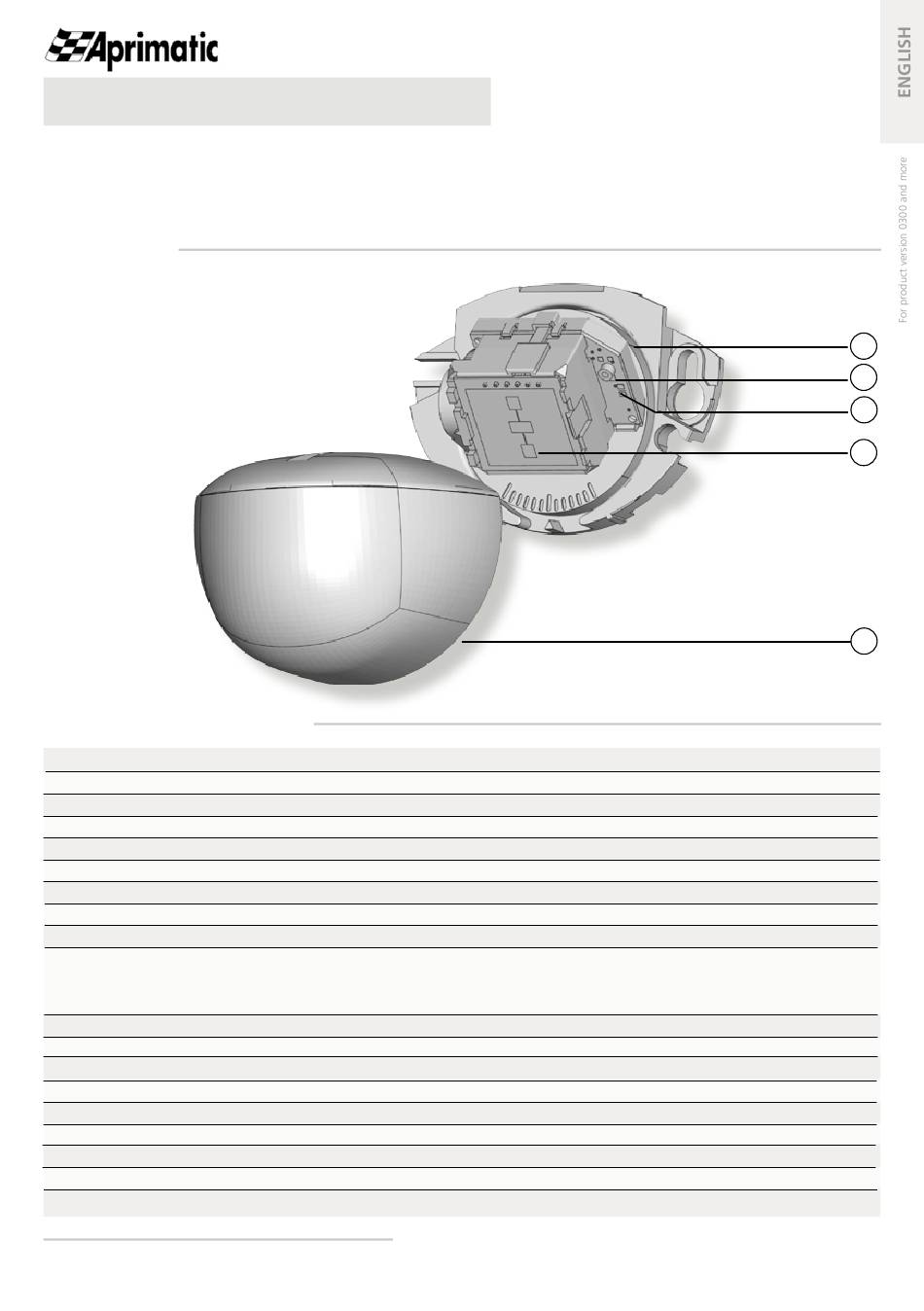

DESCRIPTION
1.
main connector
2.
potentiometer for field size adjustment
3.
LED
4.
radar antenna (wide field)
5.
cover
TECHNICAL SPECIFICATIONS
Technology:
Transmitter frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Min. detection speed:
Supply voltage:
Mains frequency:
Max. power consumption:
Output:
Max. contact current:
Max. contact voltage:
Mounting height:
Degree of protection:
Temperature range:
Dimensions:
Tilt angles:
Material:
Weight:
Cable lenght:
Norm conformity:
Specifications are subject to changes without prior notice.
Measured in specific conditions
microwave doppler radar
24.150 GHz
< 20 dBm EIRP
< 5 mW/cm²
motion
5 cm/s (measured in sensor axis)
12 V to 24 V DC +30% / -10%
50 to 60 Hz
< 2 W
solid-state-relay (free of potential change-over contact)
250 mA
50 V DC/V AC
from 1.8 m to 3 m
IP54
from -20 °C to + 55 °C
80 mm (W) x 60 mm (H) x 50 mm (D)
0° to 90° vertical; -30° to +30° lateral
ABS & polycarbonate
70 g
2.5 m
EN 300 440-2 V1.4.1; EN 301 489-1 V1.9.2; EN 301 489-3 V1.6.1.; EN 62311; EN 62479
Please keep for further use
Designed for colour printing
DM41
Bidirectional opening sensor
for automatic doors
1
2
3
4
5

Advertisement

loading
Need help?

Need help?

Do you have a question about the DM41 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aprimatic DM41

  • Page 1 Please keep for further use Designed for colour printing DM41 Bidirectional opening sensor Other use of the device is outside the permitted purpose and can not be guaranteed by the manufacturer. The manufacturer cannot be held responsible for automatic doors for incorrect installations or inappropriate adjustments of the sensor.
  • Page 2 APPLICATIONS Wall mounting above sliding or Ceiling mounting in front of sliding, revolving doors revolving or swing doors (outside of the door motion range) OPENING THE SENSOR Before fixing After fixing TIPS Do not touch electronical Avoid vibrations. Do not cover the sensor. Avoid proximity to neon parts.
  • Page 3 MOUNTING & WIRING Apply the mounting template. Connect the cable and insert it Fix the sensor firmly. Drill 1 hole for the cable. through the hole. Drill 2 holes for the screws. Connect the wires as follows: BROWN - POWER SUPPLY - GREEN - POWER SUPPLY + WHITE - NO YELLOW - COM...
  • Page 4 BEA SA | LIEGE Science Park | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | INFO@BEA.BE | WWW.BEA-SENSORS.COM BEA hereby declares that the DM41 is in conformity with the basic requirements and the other relevant provisions of the directives 2014/53/EU and 2011/65/EU.
