Summary of Contents for Kingfisher PHG1800

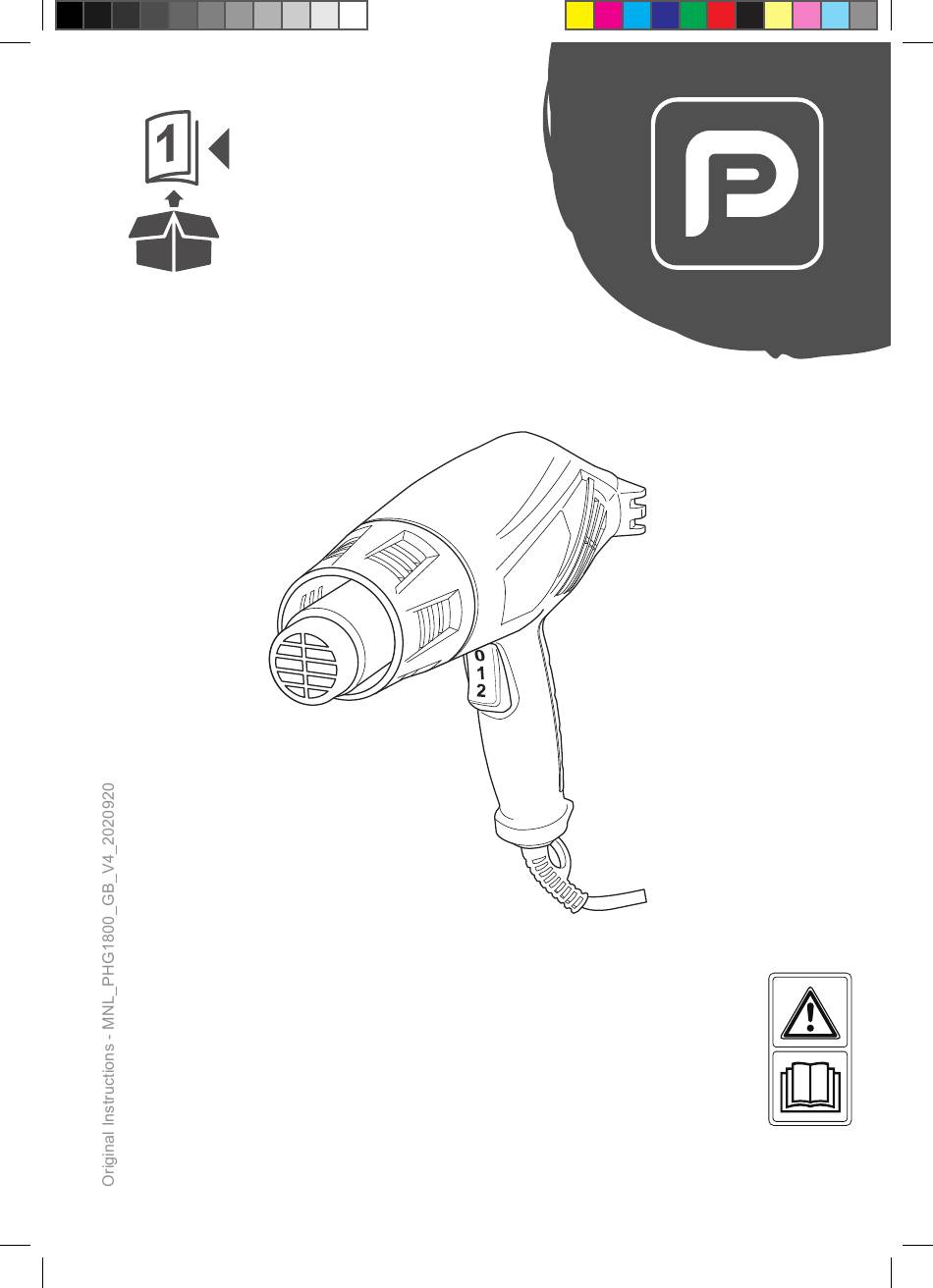

- Page 1 PHG1800 EAN: 5059340043258 ORIGINAL INSTRUCTIONS V40920 / BX220IM MNL_Performance_GB_DFT_Heat Gun_V4_200908.indd 1 9/8/20 5:13 PM...
-
Page 2: Table Of Contents
Safety instructions Product description Assembly Care & maintenance Guarantee MNL_Performance_GB_DFT_Heat Gun_V4_200908.indd 2 9/8/20 5:13 PM... - Page 3 Safety instructions SAFETY WARNINGS a) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 4 b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool.
- Page 5 b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 6 c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
-
Page 7: Safety Instructions
A fire may result if the product is not used with care, therefore a) be careful when using the product in places where there are combustible materials; b) do not apply to the same place for a long time; c) do not use in presence of an explosive atmosphere; d) be aware that heat may be conducted to combustible materials that are out of sight;... - Page 8 e) Clean up all paint scrapings and dust when work is complete. Do not sweep. Dry dust or vacuum to avoid the paint dust being thrown up into the air where it can be inhaled or contaminate other areas. Wet mop floors. Use a wet cloth to clean all walls, sills and other surfaces where paint and dust have accumulated.
- Page 9 a) Only use the product as intended by its design and these instructions. b) Ensure that the product is in good condition and well maintained. c) Use correct attachments for the product and ensure they are in good condition. d) Keep tight grip on the handles/grip surface. e) Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
- Page 10 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. MNL_Performance_GB_DFT_Heat Gun_V4_200908.indd 10 9/8/20 5:13 PM...
-
Page 11: Product Description
Product description 1. Hot air outlet 2. Air vents 3. Stand 4. On/off switch 5. Handle 6. Power cable with hanging hook 7. Scraper a) Blade b) Handle 8. Concentrator nozzle 9. Spreader nozzle 10. Glass protector nozzle 11. Reflector nozzle MNL_Performance_GB_DFT_Heat Gun_V4_200908.indd 11 9/8/20 5:13 PM... - Page 12 450°C 450°C MNL_Performance_GB_DFT_Heat Gun_V4_200908.indd 12 9/8/20 5:13 PM...
- Page 13 450°C 450°C 600°C 450°C 600°C 600°C MNL_Performance_GB_DFT_Heat Gun_V4_200908.indd 13 9/8/20 5:13 PM...
- Page 14 EN ISO 3744: 2010. The sound intensity level for the operator may exceed 80 dB(A) and ear protection measures are necessary. Rating label explanation PHG1800 = Designation of the tool P= Performance Power HG= Heat Gun 1800= Rated input (Watts)
-
Page 15: Assembly
Always wear eye protection. Always wear ear protection. Wear a dust mask. Wear protective gloves. Note / Remark. Caution / Warning. Read the instruction manual. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. - Page 16 Accessories Different nozzle attachments can be used depending on the work being conducted. WARNING! Always use accessories according to the intended use! Observe the technical requirements of this product (see section Product descriptions) when purchasing and using accessories! Some accessories are very sharp and become hot during use! Handle them carefully! Wear safety gloves when handling accessories in order to avoid injuries like burns and cuts! Nozzles...
- Page 17 Reflector – Direct hot air onto hard to reach, nozzle (11) awkward areas or to spread the heat more evenly around copper pipes. Attaching (Fig. A) 1. Align the required nozzle (8 - 11) with the hot air outlet (1) and attach it. Ensure it fits properly.
-
Page 18: Use
3. Your product is now ready to be used. Intended use This heat gun PHG1800 is designated with a rated input of 1800 Watts. This product is intended for removing paint, forming and bending of plastic tubes, and the warming of heat-shrinkable tubing, using the respective nozzles. The product is also suitable for soldering and tinning, loosening adhesive joints and defrosting water pipes. - Page 19 Controls Stand (Fig. D) Always place the product on its stand (3) after operation. On/off switch Set the on/off switch (4) to desired position. Position Setting Applications “0” – Off – Cleaning and storage “1” – On, – Removing paint 450°C / –...
- Page 20 3. Always hold the product by its handle. Keep the handle dry to ensure safe support. 4. Ensure that the air vents are always unobstructed and clear. Clean them if necessary with a soft brush. Blocked air vents may lead to overheating and damage the product.
- Page 21 NOTE: The proper amount of heat for each application depends on the temperature range selected, distance between the nozzle and workpiece as well as the length of time heat is applied. Experiment with scrap materials and start with the lowest temperature setting. 7.
-
Page 22: Care & Maintenance
Bending plastic tubes (Fig. J) 1. Fill the tubing with sand and seal at both ends, to avoid kinking the tubing 2. Heat the tubing evenly by moving it from side to side. 3. Carefully bend the pipe to the correct shape. Allow the pipe to cool. 4. - Page 23 3. Inspect the product before each use for worn and damaged parts. Do not operate it if you find broken and worn parts. WARNING! Only perform repairs and maintenance work according to these instructions! All further works must be performed by a qualified specialist! Clean 1.
- Page 24 UK plug (only for UK market) Replacement of the plug shall always be carried out by the manufacturer of the tool or his service organization and follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –...
- Page 25 Transportation WARNING! Always carry the product by its main handle. Never use the cord for carrying the product. 1. Switch the product off and disconnect it from the power supply. 2. Attach transportation guards, if applicable. 3. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
- Page 26 Problem Possible cause Solution 1. Product does 1.1 Not connected to power 1.1 Connect to power supply not start supply 1.2 Power cord or plug is 1.2 Check by a specialist defective electrician. 1.3 Other electrical defect 1.3 Check by a specialist to the product electrician 2.
-
Page 27: Guarantee
Guarantee power tool we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. That’s why we offer a 2 year guarantee against manufacturing defects on our power tool products. - Page 28 Manufacturer, Fabricant, Producent, Producător, Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products MNL_Performance_GB_DFT_Heat Gun_V4_200908.indd 29...
